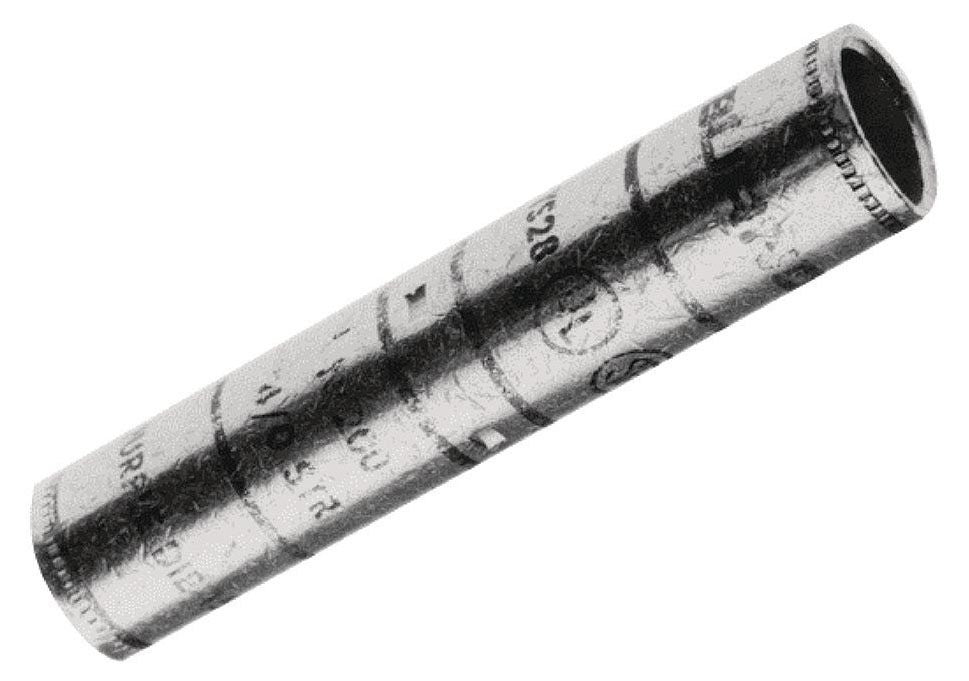

Hubbell YS30 BURNDY CU BUTT SPLICE 300MCM

Product Description

The Hubbell YS30 is a compression butt splice designed for reliable wire connections. It is suitable for stranded copper conductors with a size of three hundred kcmil. This butt splice is four point three four inches long and features a long barrel to ensure a secure fit. The product operates within a voltage range from six hundred to thirty-five thousand VAC.

• Suitable for heavy duty applications
• Can be used for voltages up to thirty-five kV
• Includes tools for proper installation

Product Highlights

This product features high pull-out force for enhanced mechanical and electrical properties. A chamfered barrel style ensures easy insertion of wire conductors.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181050805

Technical Specifications

• Application: For heavy duty applications and used at higher voltages up to thirty-five kV
• Barrel Size: 1.95 inches
• Conductor Size: 300 kcmil
• Conductor Type: Stranded Copper
• Finish: Tin Plated
• Length: 4.34 inches
• Voltage Rating: 600 to 35000 VAC
• Temperature Rating: 90 degrees C
