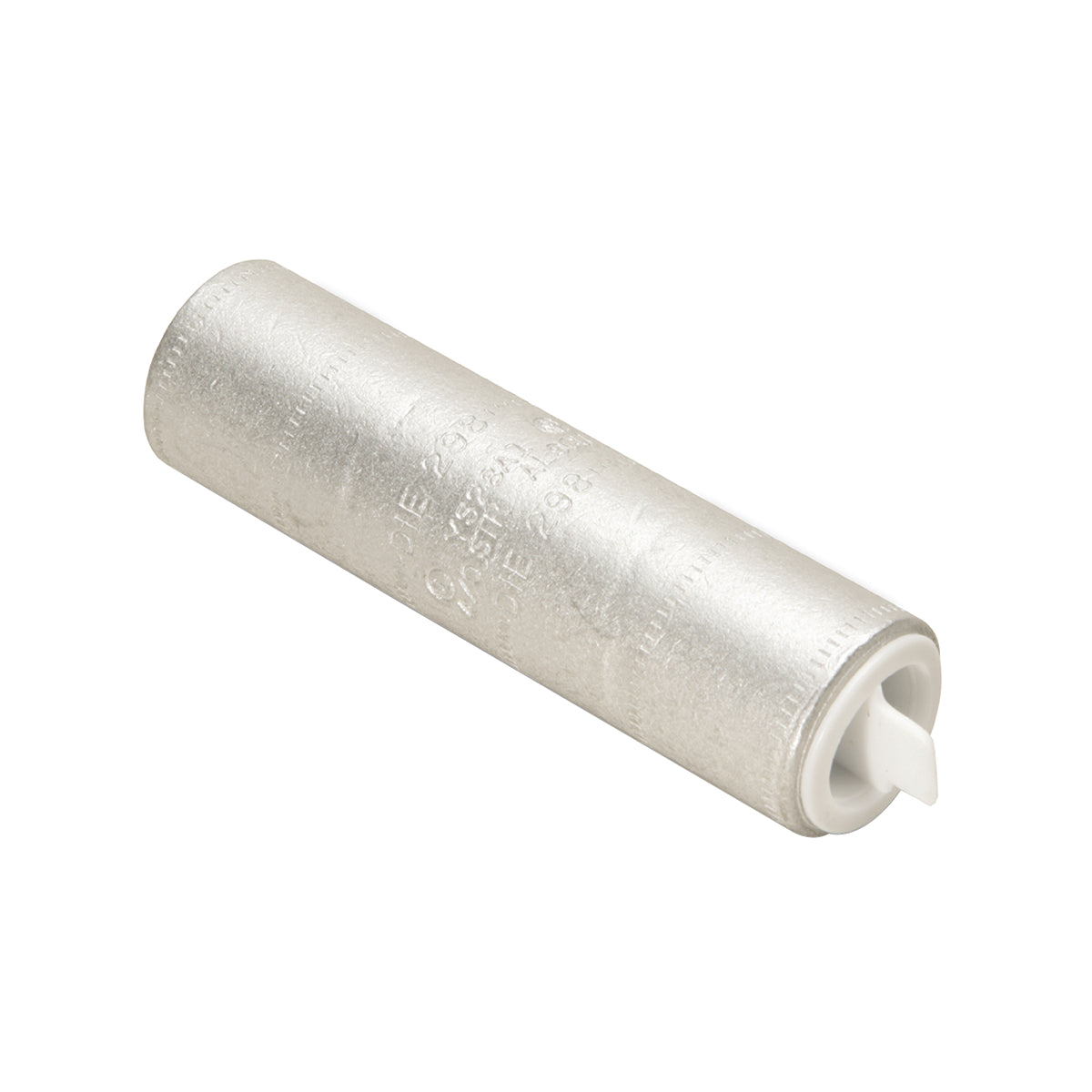

Hubbell YS29A1 BURNDY ALUM COMP BUTT SPLICE 250 kcmil AL/CU

Product Description

The Hubbell YS29A1 is a BURNDY HYLINK Compression Butt Splice designed for use with aluminum and copper conductors. This product accommodates conductor sizes up to 250 kcmil and has a length of three point eighteen inches.

• Manufactured from high-conductivity aluminum.
• Electro tin plating for corrosion resistance.
• Compatible with various tooling for crimping.

Product Highlights

This butt splice provides reliable electrical connections in various applications, ensuring high performance and durability.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181075735

Technical Specifications

• Application: For use on all combinations of aluminum to aluminum, aluminum to copper, and copper to copper conductor combinations.
• Barrel Size: 1.46 inches
• Conductor Size: 250 kcmil
• Length: 3.18 inches
• Material: Aluminum
• Finish: Tin Plated
• Voltage Rating: 600 to 35000 VAC
• Temperature Rating: 194 degrees Fahrenheit
