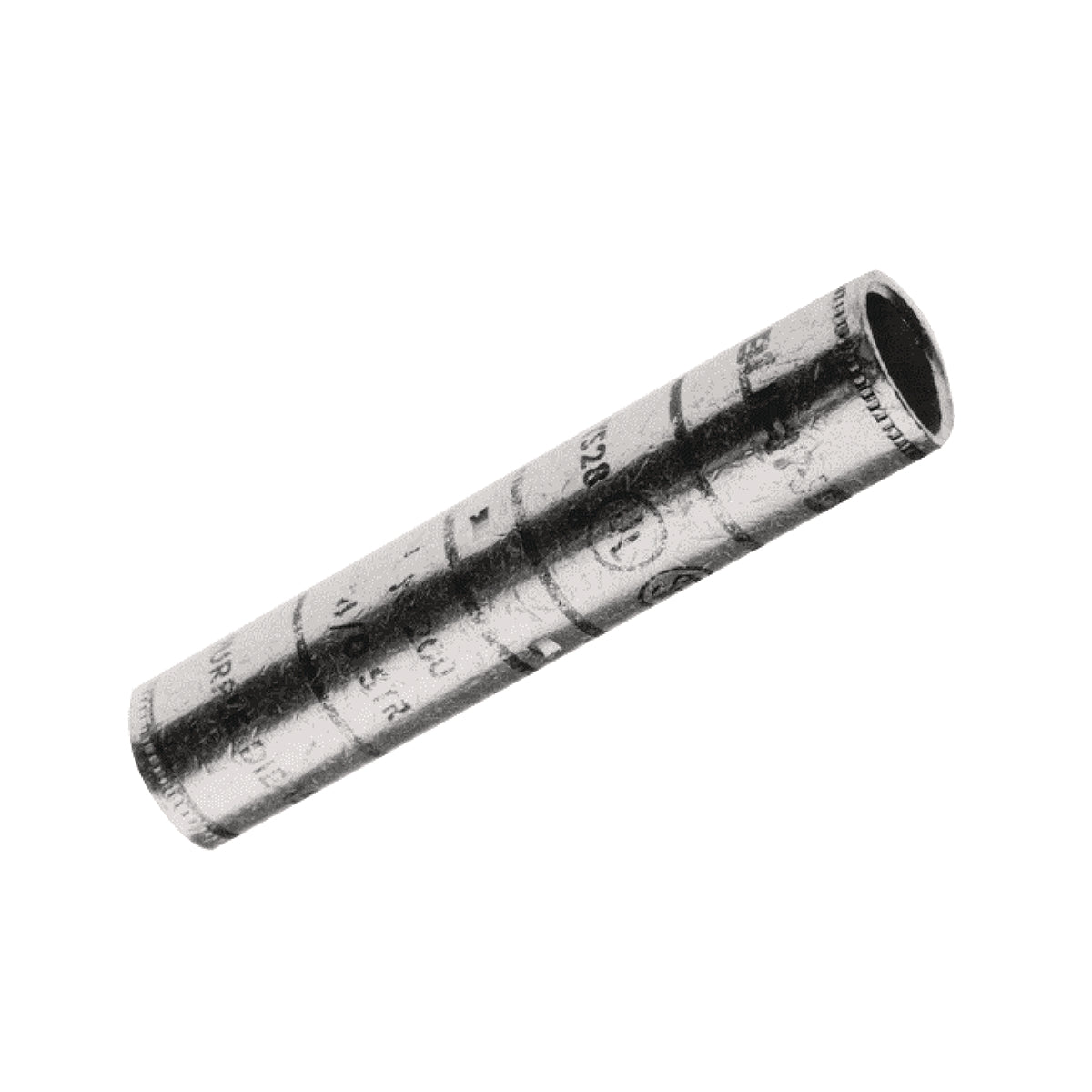

Hubbell YS29 BURNDY CU BUTT SPLICE 250MCM

Product Description

The Hubbell YS29 is a BURNDY compression butt splice designed for use with stranded copper conductors. This long barrel splice accommodates a conductor size of 250 kcmil and measures three point five eight inches in length. It is suitable for applications up to thirty five thousand volts and features a long barrel and chamfered design to ensure secure connections.

• Ideal for heavy duty applications
• Suitable for use at voltages up to thirty five kV
• High pull out force for enhanced mechanical and electrical properties

Product Highlights

The YS29 splice has a tin plated finish and a temperature rating of ninety degrees Celsius. It includes a center conductor stop for proper insertion, ensuring reliability in electrical connections.

Product Information

Standard Information

• Application: For heavy duty applications and used at higher voltages up to thirty five kV
• Manufacturer: Hubbell
• UPC: 78181050795
• Voltage Rating: 600 to 35000 VAC
• Temperature Rating: 90 degrees Celsius

Technical Specifications

• Barrel Size: 1.58 inches
• Conductor Type: Stranded Copper
• Length: 3.58 inches
• Material: Copper
• Finish: Tin Plated
• Includes: (4) MD7-34R Tool, (1) W29VT Die, (1) Y35, Y39, Y750 Tool
• Die Index: 16
