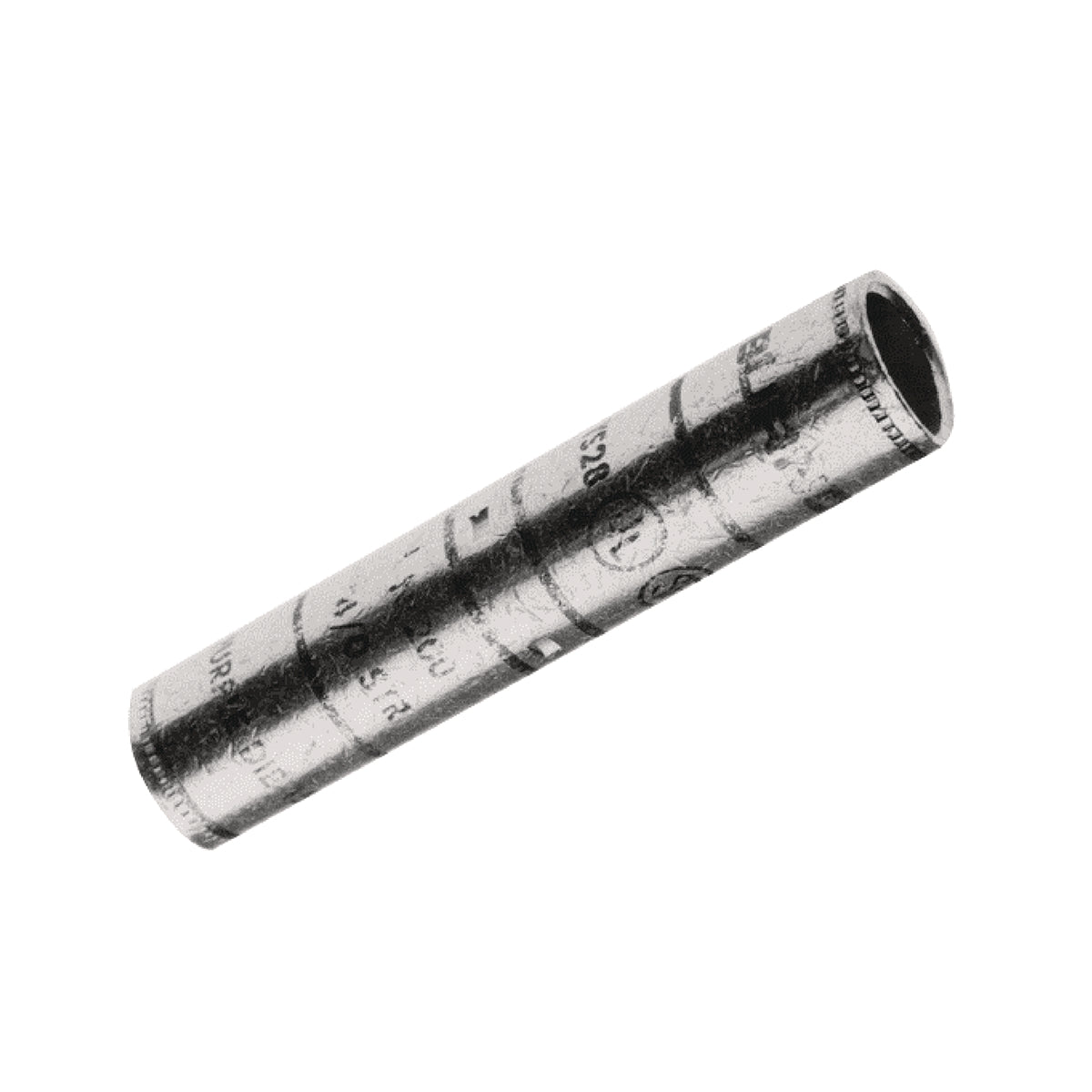

Hubbell YS28 BURNDY CU BUTT SPLICE 4/0 AWG

Product Description

The Hubbell YS28 is a BURNDY HYLINK™ Compression Butt Splice designed for 4/0 AWG stranded copper conductors. This splice measures three point fifty-seven inches in length and features a long barrel design. It is suitable for use in applications requiring up to thirty-five thousand volts AC. The splice is engineered for durability with a temperature rating of ninety degrees Celsius and comes tin plated for enhanced conductivity.

• Rated for up to thirty-five thousand volts AC
• Includes multiple tools for installation
• Features a long barrel for secure connections

Product Highlights

Ideal for heavy-duty applications, the YS28 combines high performance with practicality. Enhanced mechanical and electrical properties ensure reliability in demanding environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181050780

Technical Specifications

• Application: For heavy-duty applications
• Barrel Size: 1.58 inches
• Color: Purple
• Conductor Size: 4/0 AWG
• Conductor Type: Stranded Copper
• Finish: Tin Plated
• Length: 3.57 inches
• Voltage Rating: 600 to 35000 VAC
• Temperature Rating: 90 degrees Celsius
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 486A-486B
