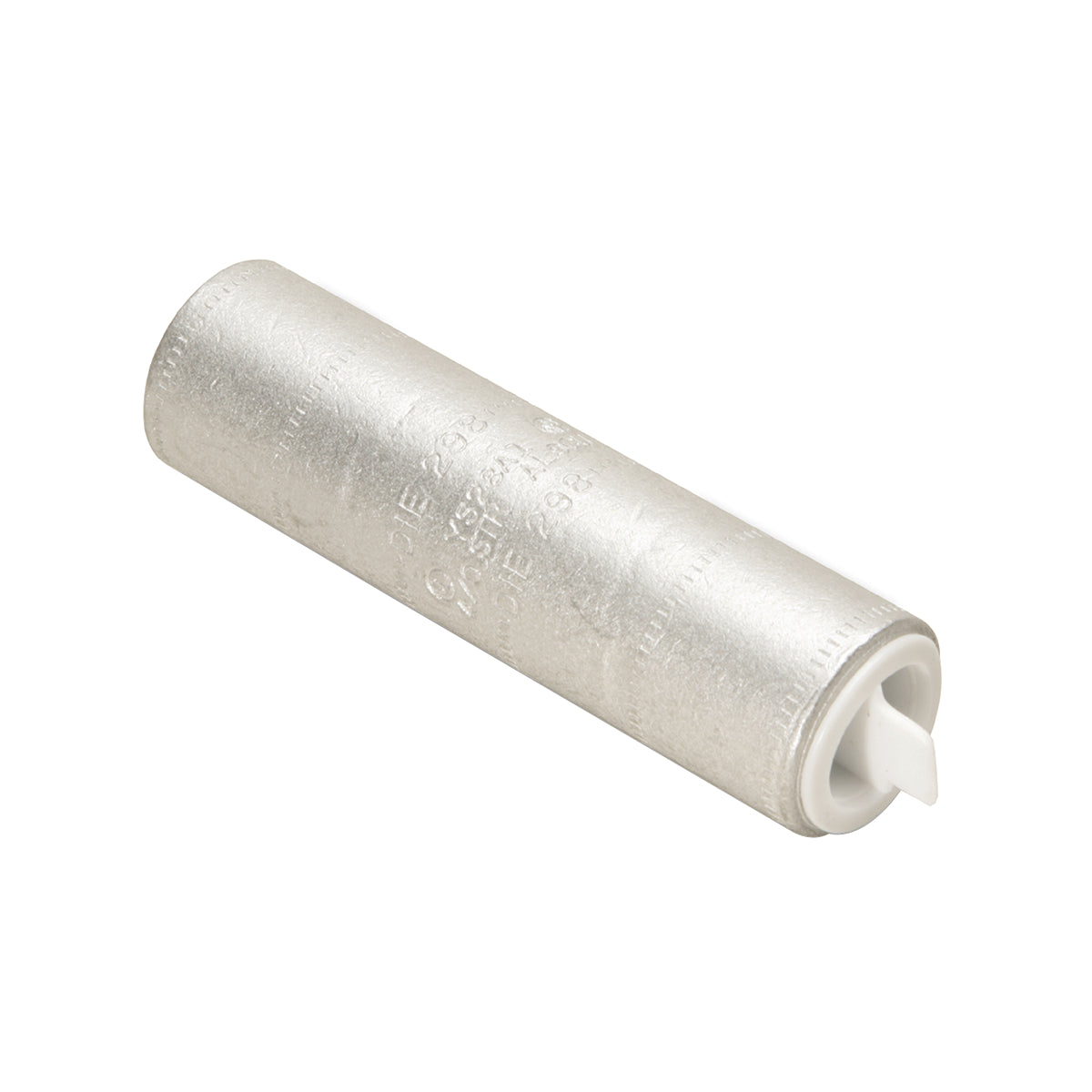

Hubbell YS27A1 BURNDY ALUM.COMP.BUTT SPLICE 3/0AWG AL/CU

Product Description

The Hubbell YS27A1 is a BURNDY® HYLINK™ compression butt splice designed for stranded copper conductors. This splice is suitable for three-aught American wire gauge, providing a reliable connection for aluminum and copper combinations.

• High conductivity copper provides low resistance.
• Long barrel with a length of two point eight eight inches.
• Rated for voltages between six hundred to thirty-five thousand VAC.

Product Highlights

This product is ideal for use in electrical applications demanding strong and durable connections. Its aluminum construction and tin plating offer corrosion resistance and enhance its longevity.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YS27A1

Technical Specifications

• Application: Suitable for all combinations of aluminum to aluminum, aluminum to copper and copper to copper connections.
• Barrel Size: 1.31 inches
• Conductor Size: 3/0 AWG
• Length: 2.88 inches
• Material: Aluminum
• Voltage Rating: 600 to 35000 VAC
• Temperature Rating: 194 degrees Fahrenheit
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 486A-486B
