Product Description

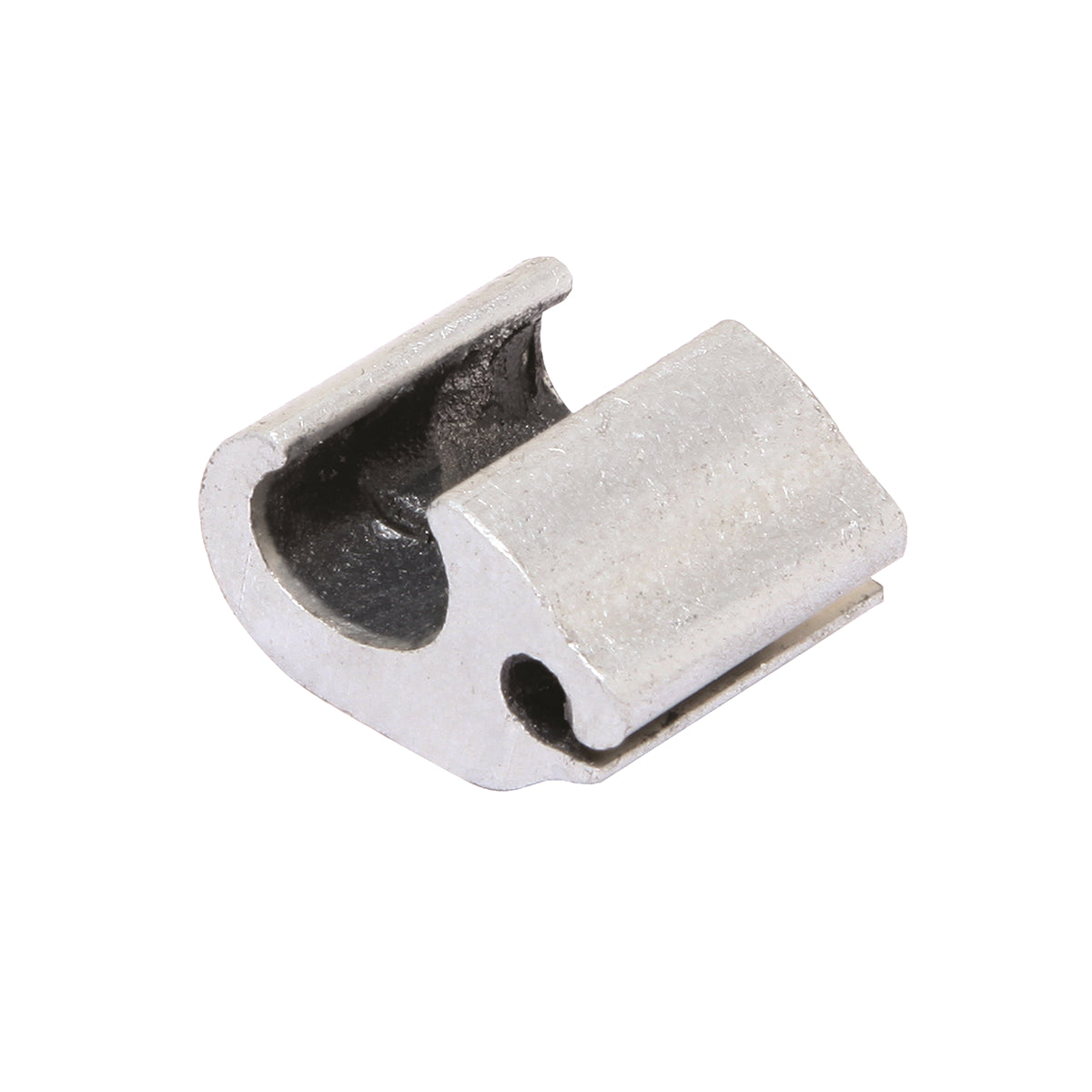

The Hubbell YPC2A8U is a BURNDY CRIMPIT Compression Connector. It is designed for effective electrical connections in overhead applications. This connector supports stranded copper and is suitable for 6 to 4 AWG main/run sizes and 14 to 8 AWG tap sizes.
- Positive all around compression with low resistance
- Heavy reinforcing ribs aid in locating compression dies
- Engineered for high pullout values
Product Highlights
This connector is reliable for various conductor types including copper and aluminum, ideal for professionals in electrical installations.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78181013568
Technical Specifications
-
Application: For combinations of copper, aluminum, ACSR, compressed, and compact conductors
-
Conductor Type: Stranded Copper
-
Dimensions: 5/8 inch Length
-
Main Run Size: 6 to 4 AWG
-
Material: Copper
-
Series: YPC-A-U
-
Shape: Figure 6
-
Specifications: BG or 5/8 Element A Die Index
-
Standards/Approvals: CSA Certified, RoHS Compliant
-
Tap Size: 14 to 8 AWG
-
Type: Compact Overhead
