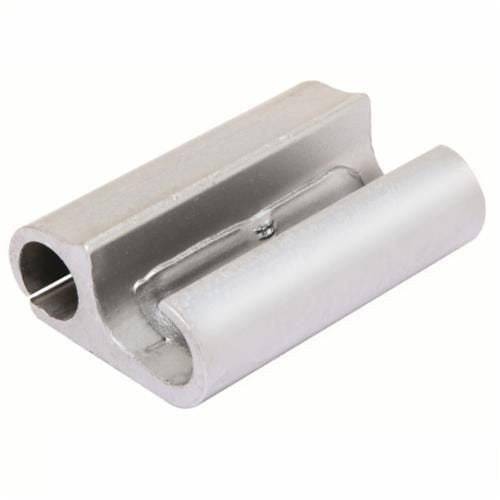

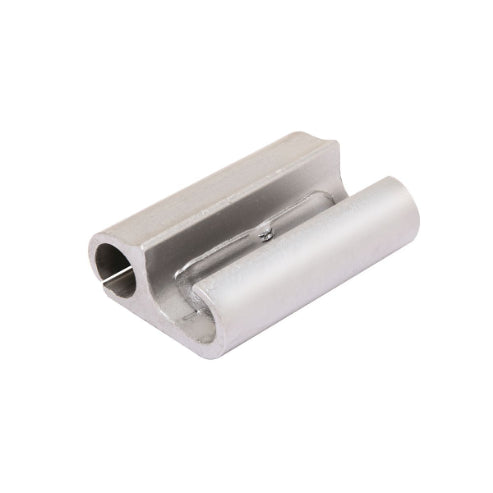

HUBBELL YPC28U28 Compression Tap Connector

Product Description

The HUBBELL YPC28U28 is a compression tap connector suitable for various conductor types, including aluminum and copper. This connector features a unique figure 6 shape that effectively separates run and tap wires, minimizing galvanic corrosion. It is pre-filled with joint compound for quick installation, ensuring a reliable connection. The design allows for easy gripping with tools, making it convenient to slide over the line during installation.

• Compatible with aluminum and copper conductors.
• Pre-filled with joint compound to facilitate a secure connection.
• Accommodates a wide range of conductor sizes.

Product Highlights

This connector is ideal for tap applications, offering reliable performance in electrical installations.

Product Information

Standard Information

• Brand Name: HUBBELL
• MPN: YPC28U28

Technical Specifications

• Conductor Type: Aluminum/Copper
• Application: Designed to tap small lighting wires from secondary's; combinations of Copper, Aluminum, ACSR
• Material: Copper
• Run Conductor Size: 3/0, 4/0 AWG Stranded, 4/0 AWG Solid
• Tap Conductor Size: 2/0 AWG Stranded, 3/0 AWG Stranded
• Length: 2-3/4 inches
• Width: 0.9 inches
• Height: 2.75 inches
• Weight: 0.20 kg
• Certification: CSA Certified, RoHS Compliant
