Hubbell YHR750 BURNDY 300-556R 336-556T AL H T 10/BOX

Product Description

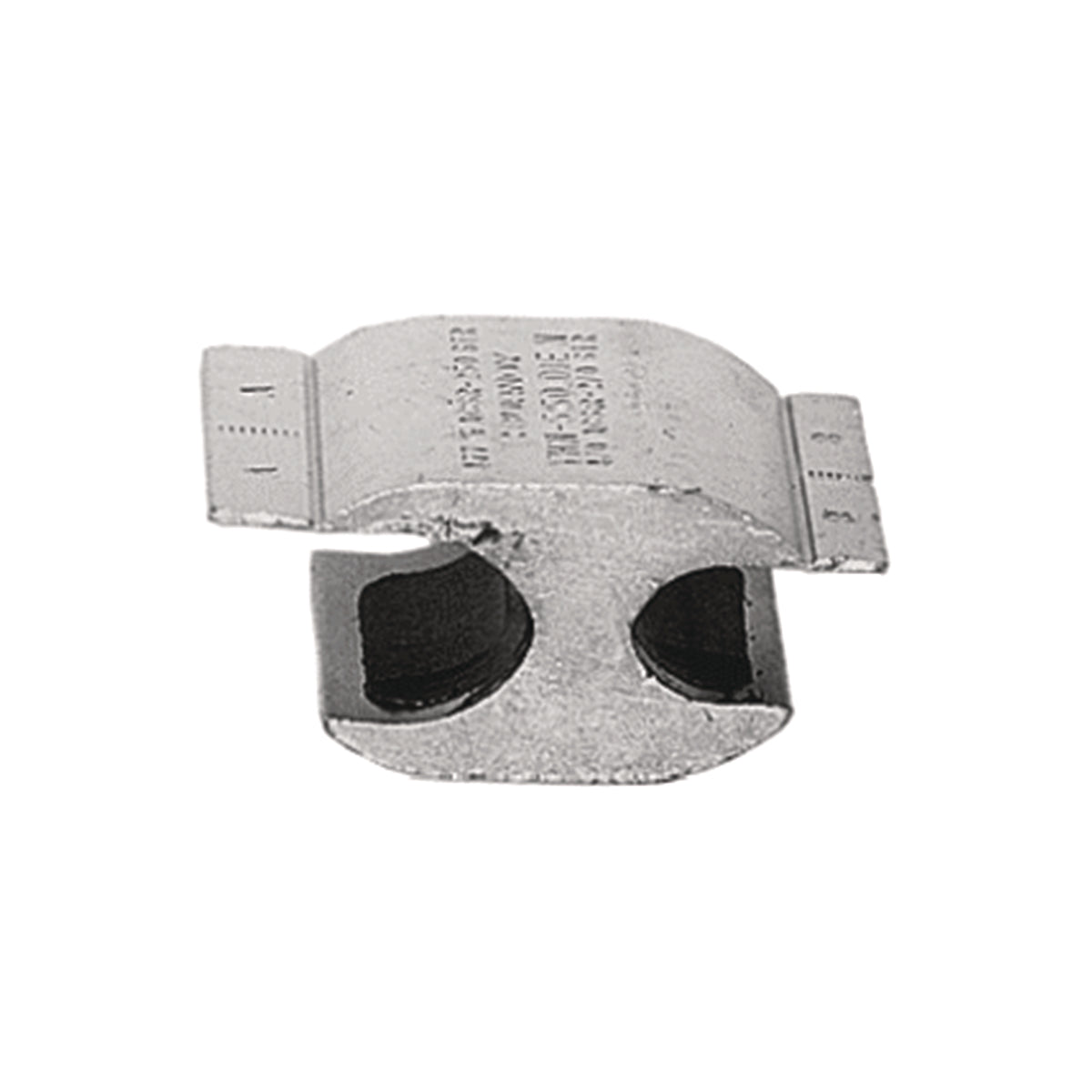

The Hubbell YHR750 is a BURNDY HYCRIMP Compression Line Tap Connector designed for overhead applications. This connector is suitable for main/run sizes between three hundred thirty-six to six hundred kcmil and tap sizes from three hundred to six hundred kcmil. It is made from aluminum and is compatible with solid and stranded copper conductors.

• Compatible with copper, aluminum, and ACSR conductors
• Figure H design for efficient connections
• Pre-filled with PENETROX joint compound for optimal performance

Product Highlights

This connector minimizes corrosion risk and improves reliability in electrical systems.

Product Information

Standard Information

• Application: For copper, aluminum or ACSR and compact conductors
• Conductor Type: Solid/Stranded Copper

Technical Specifications

• Dimensions: 4.62 in L x 1.74 in W x 34 in H
• Finish: Unplated
• Main Run Size: 336 to 600 kcmil
• Manufacturer Part Number: YHR750
• Material: Aluminum
• Shape: Figure H
• Specifications: KR Element A Die Index
• Standards/Approvals: ANSI Class AA, RUS Certified, RoHS Compliant
• Tap Size: 300 to 600 kcmil
• Type: Type YHR Overhead
