Hubbell YHR-700 YHR700 BURNDY 300-556R 1/0-336T AL H T 78181013965

Product Description

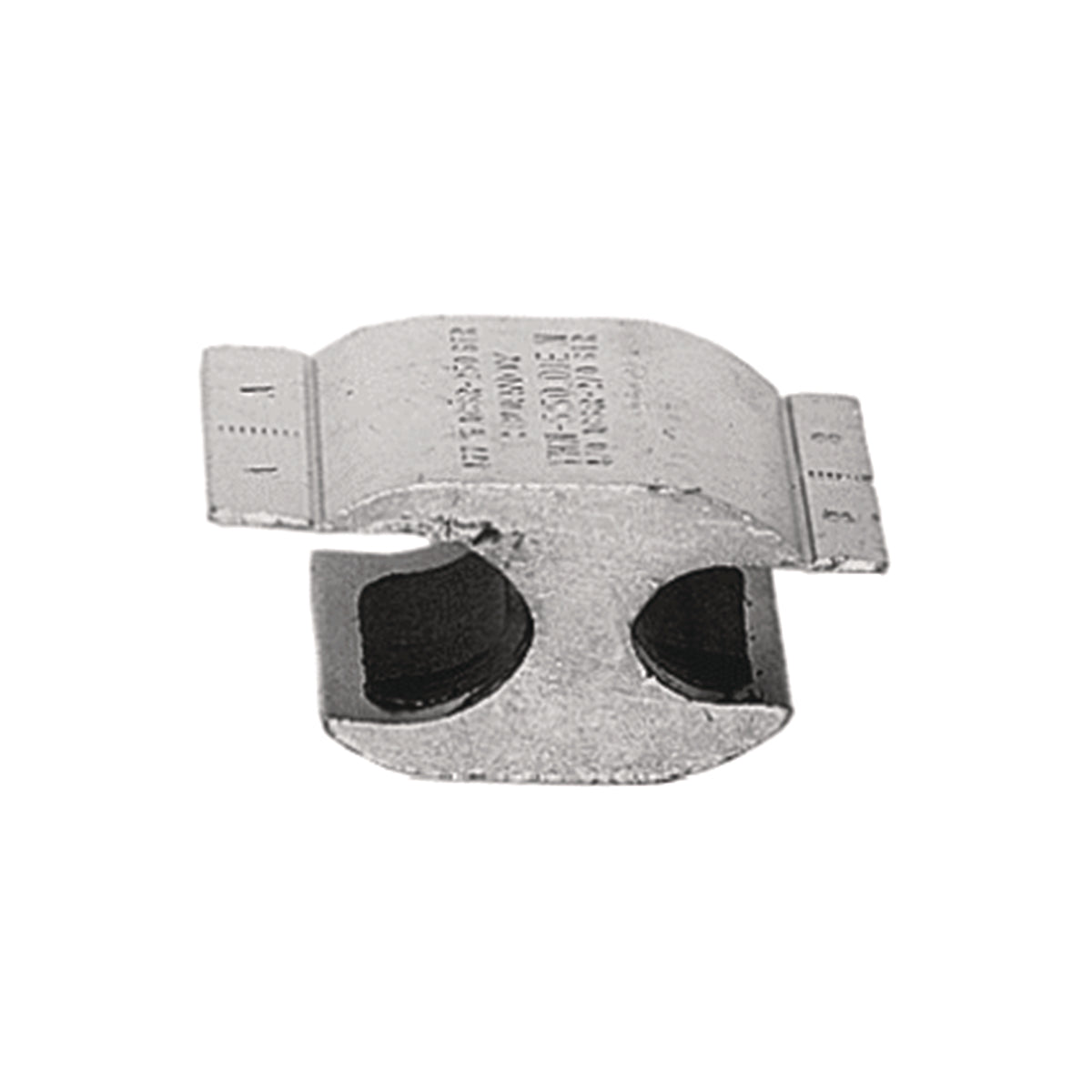

Hubbell YHR-700 is a compression line tap connector known as the BURNDY HYCRIMP. This connector features a figure H shape designed for conducting electricity efficiently. The product accommodates conductor sizes from 336 kcmil to 600 kcmil, making it suitable for various applications in electrical installations.

• Connects multiple conductor types: ACSR, Aluminum, Copper, and Stranded.
• Prefilled with PENETROX joint compound for better connections.
• Dimensions: three point five inches long by one point seventy-four inches wide by thirty-four inches high.

Product Highlights

This connector supports effective electrical connections while ensuring durability against corrosion.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: YHR700

Technical Specifications

• Maximum Run Tap: 600 kcmil, 1/0 AWG
• Minimum Run Tap: 336 kcmil, 2/0 AWG
• Conductor Type: ACSR/Aluminum/Copper/Stranded
• Material: Aluminum
• Shape: Figure H
• Dimensions: 3.5 in L x 1.74 in W x 34 in H
• Standards/Approvals: ANSI Class AA | RUS Certified | RoHS Compliant | PROP65 Warning
