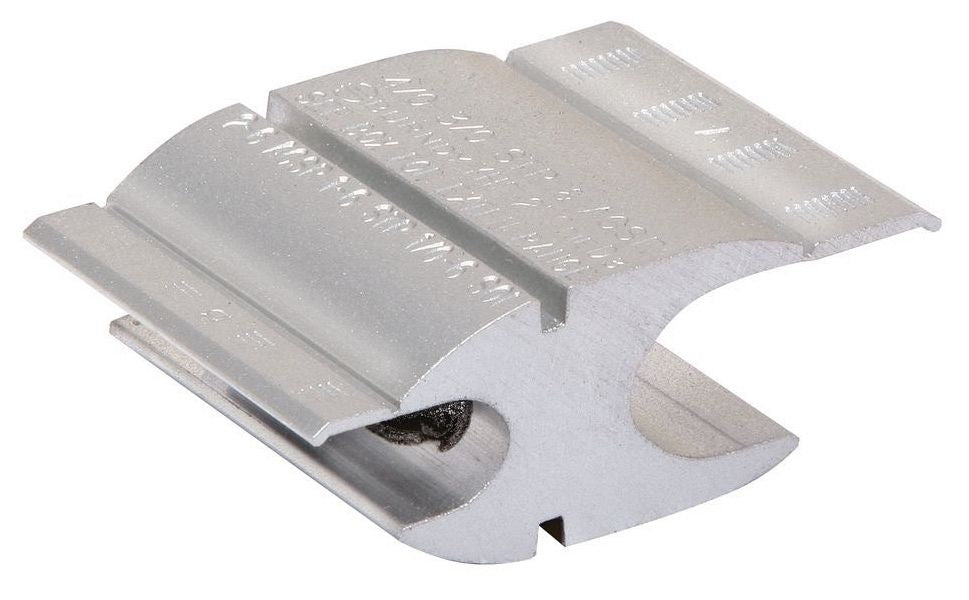

Hubbell YHN550 BURNDY 500MCM ALCU TAP CONN

Product Description

The Hubbell YHN550 is a BURNDY compression line tap connector designed for overhead applications. This connector works with conductor sizes from two hundred fifty to five hundred kcmil for the main or run. It accommodates tap sizes from four ought to two ought AWG.

• Works with solid or stranded copper conductors.
• Supports mechanical or hydraulic installation tooling.
• Includes pre-filled PENETROX joint compound.

Product Highlights

This connector offers a wide range of applications for various conductor types, ensuring versatility and reliability in electrical connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Aluminum

Technical Specifications

• Application: For copper, aluminum, or ACSR and compact conductors
• Conductor Type: Solid/Stranded Copper
• Dimensions: 2 inches L x 1.28 inches W x 1.96 inches H
• Finish: Unplated
• Main Run Size: 250 to 500 kcmil
• Manufacturer Part Number: YHN550
• Shape: Figure H
• Specifications: N Element A Die Index
• Standards/Approvals: ANSI Class AA, RUS Certified, RoHS Compliant
• Tap Size: 4/0 to 2/0 AWG
• Type: Type YHN Overhead
