Product Description

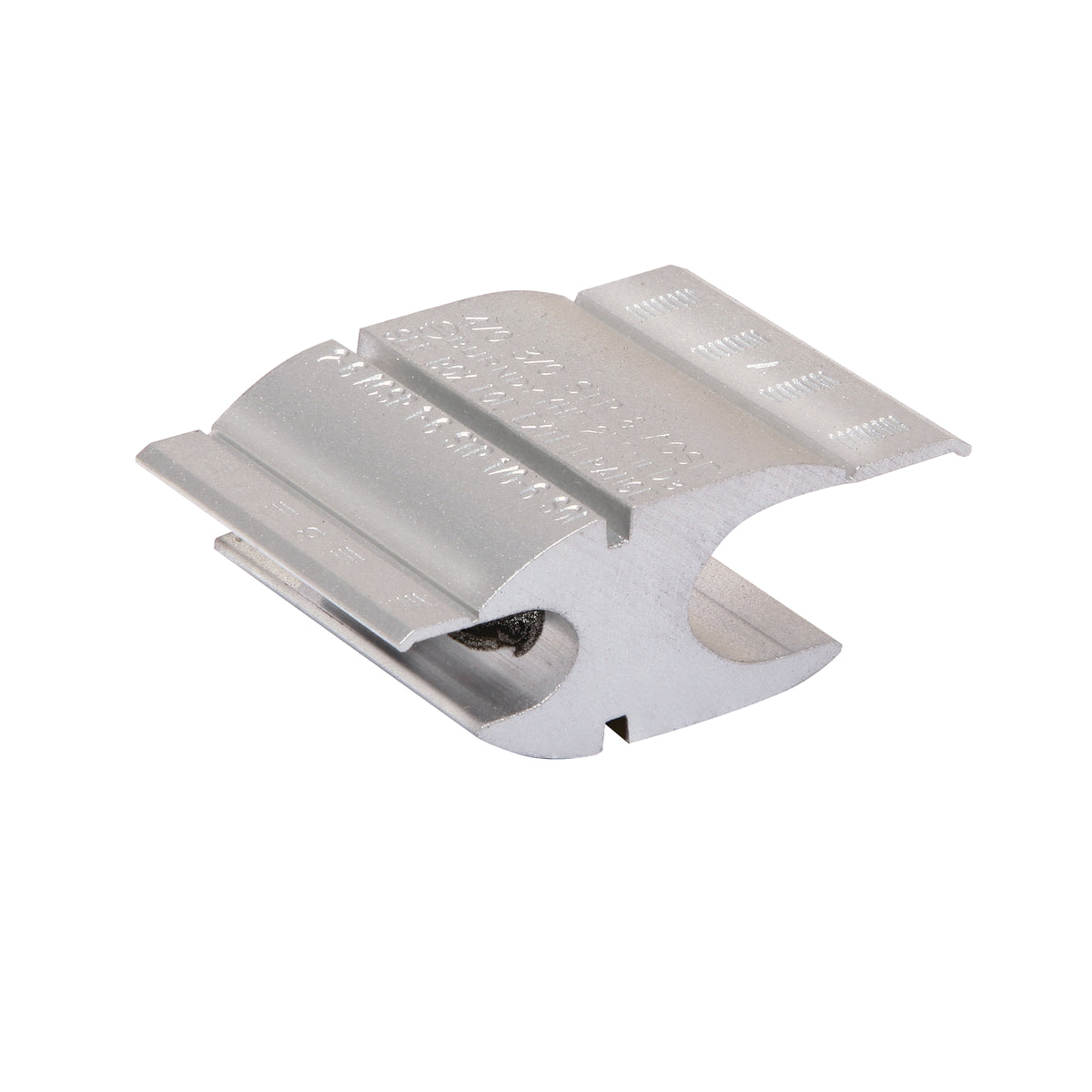

The Hubbell YHN525 is a compression line tap connector designed for overhead applications. This Type YHN connector is compatible with a range of conductor sizes from four to five hundred kcmil. It is essential for connecting solid or stranded copper conductors effectively.
- Compatible with 4/0 AWG to 500 kcmil conductors
- Massive aluminum design minimizes corrosion
- Pre-filled with PENETROX joint compound for effective connections
Product Highlights
A universal figure H shaped connector that facilitates efficient connections while allowing hands-free operation for linemen.
Product Information
Standard Information
-
Application: For copper, aluminum, or ACSR and compact conductors
-
Conductor Type: Solid/Stranded Copper
Technical Specifications
-
Dimensions: 4.5 inches L x 1.23 inches W x 1.824 inches H
-
Finish: Unplated
-
Main Run Size: 4/0 AWG to 500 kcmil
-
Material: Aluminum
-
Shape: Figure H
-
Specifications: N Element A Die Index
-
Standards/Approvals: ANSI Class AA, RUS Certified, RoHS Compliant
-
Tap Size: 4/0 AWG to 500 kcmil
