Hubbell YHD400 BURNDY 3/0-4/0R 3/0-4/0T AL H T YHD400

Product Description

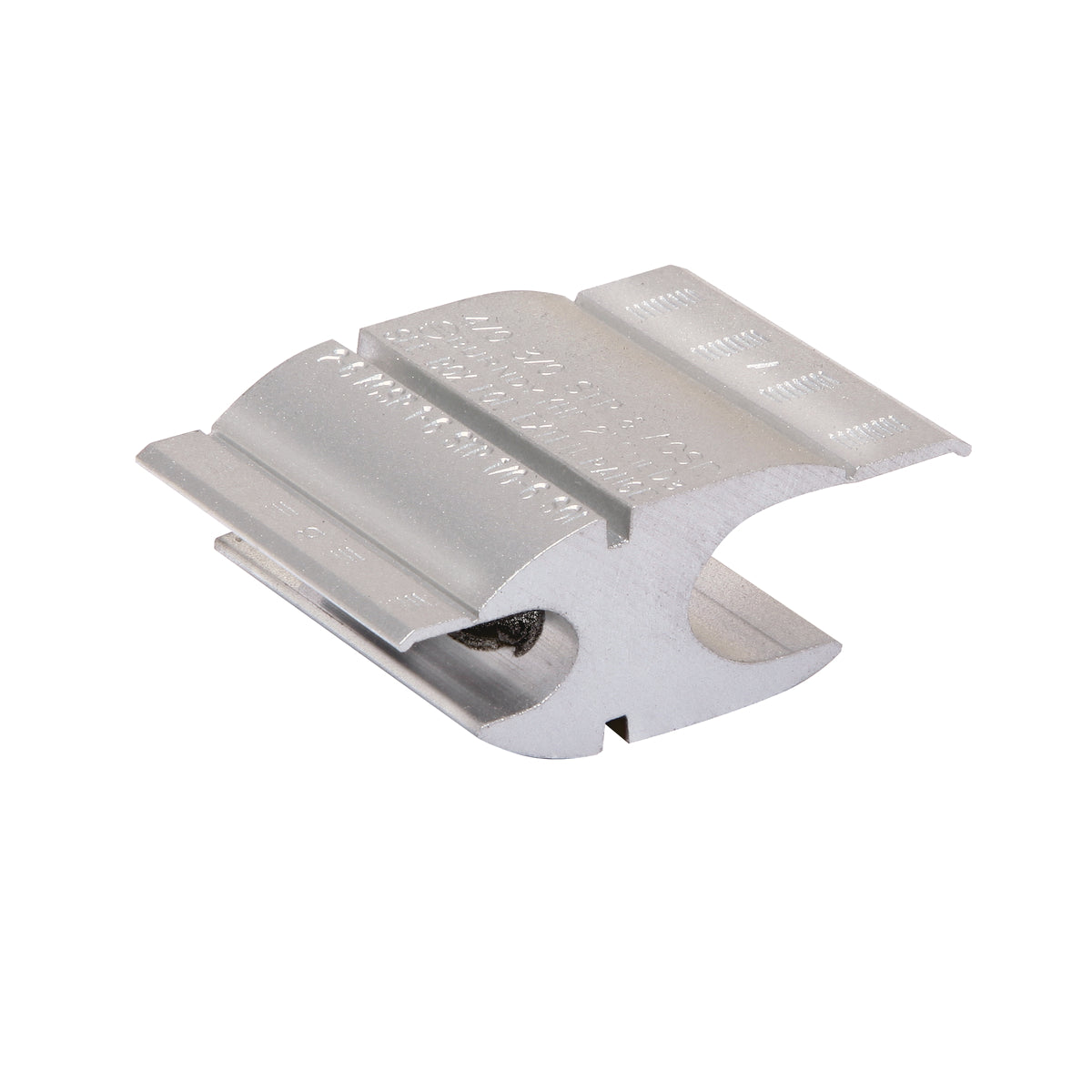

The Hubbell YHD400 is a BURNDY Compression Line Tap Connector designed for overhead applications. It accommodates a range of conductor sizes from two AWG to three hundred KCMIL for both main and tap lines.

• Compatible with solid and stranded copper conductors.
• Constructed from unplated aluminum for durability.
• Features a D3 die index for optimal performance.

Product Highlights

This connector is ideal for both copper and aluminum conductors. Its figure H shape allows for simple installations while securing conductors effectively.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181013935

Technical Specifications

• Application: For copper, aluminum or ACSR and compact conductors
• Conductor Type: Solid/Stranded Copper
• Dimensions: 2.5 inches long x 0.89 inches wide x 1.49 inches high
• Finish: Unplated
• Main Run Size: 2/0 AWG to 300 kcmil
• Material: Aluminum
• Shape: Figure H
• Specifications: D3 Element A Die Index
• Standards/Approvals: ANSI Class AA, RUS Certified, PROP65 compliant, RoHS Compliant
• Tap Size: 2/0 AWG to 300 kcmil
• Type: Type YHD Overhead
