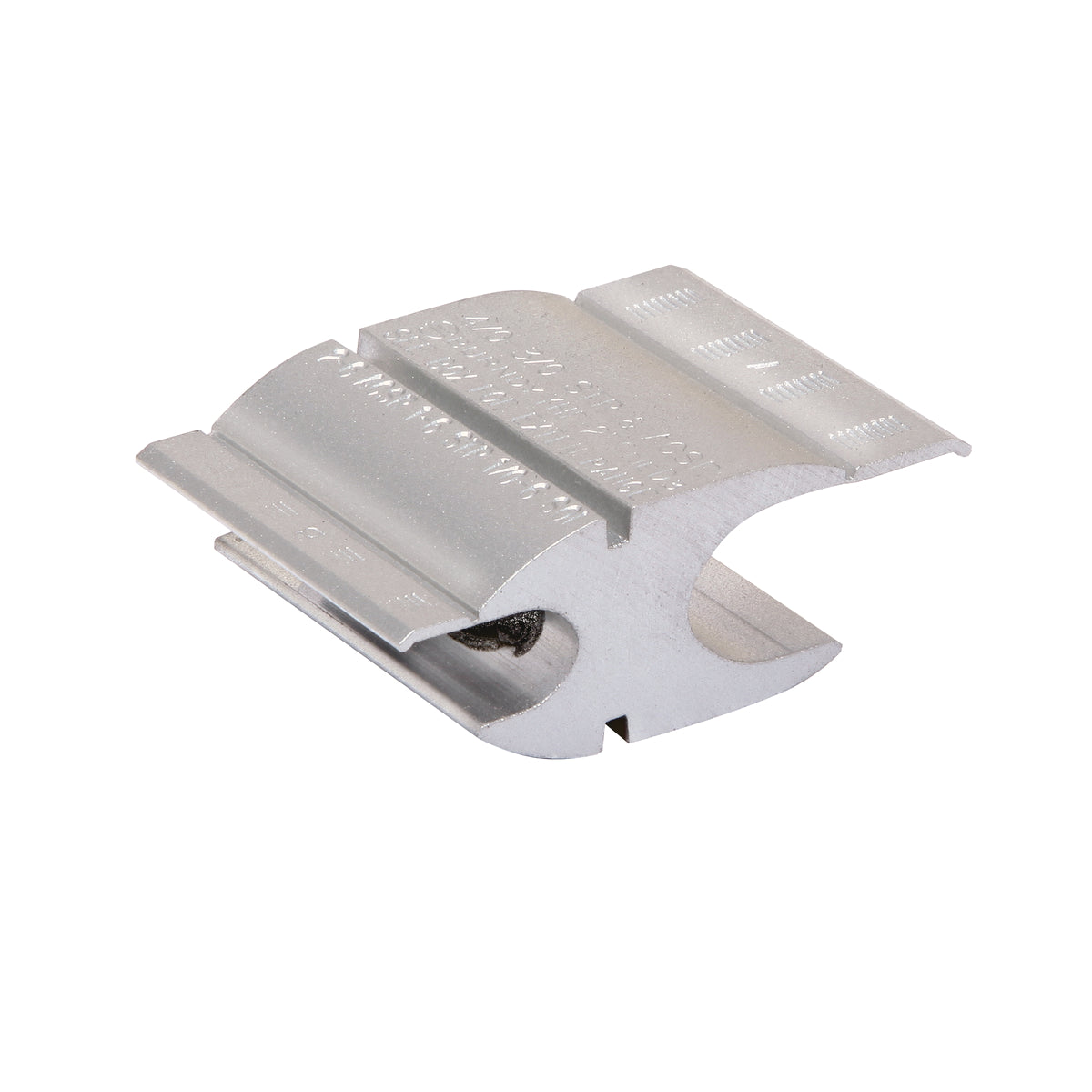

Hubbell YHD350 BURNDY Connector

Product Description

The Hubbell YHD350 is a BURNDY compression line tap connector designed for effective connections in electrical wiring. This connector supports various conductor types including ACSR, aluminum, copper, solid, and stranded. With a maximum capability of two AWG and three hundred kcmil, it is suitable for heavy-duty applications. Its figure H shape allows for easy installation and secure connections.

• Compatible with 2/0 to 300 kcmil solid conductors
• Prefilled with PENETROX joint compound for corrosion resistance
• Printable conductor ranges and tooling on each connector

Product Highlights

The YHD350 features a robust aluminum design to reduce corrosion and comes with bendable tabs to secure conductors during installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: YHD350

Technical Specifications

• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Dimensions: 2.25 inches L x 0.89 inches W x 1.42 inches H
• Finish: Unplated
• Material: Aluminum
• Maximum Run Tap: 2/0 AWG, 300 kcmil
• Minimum Run Tap: 4/0 AWG, 300 kcmil
• Shape: Figure H
• Standards/Approvals: ANSI Class AA|RUS Certified|RoHS Compliant
• Type: Type YHD Compression Line
