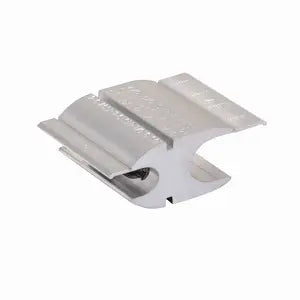

Hubbell YHD300 BURNDY TAP CONN. 3/0AWG ALCU 25/BOX

Product Description

The Hubbell YHD300 is a BURNDY compression line tap connector. This connector is designed for use with ACSR, aluminum, and copper conductors. It is suitable for applications needing solid and stranded configurations. The connector has a shape of Figure H and accommodates various cable diameters. The YHD300 allows for a minimum run of 200 kcmil and a maximum of 300 kcmil. It comes packaged individually with joint compound for optimal performance.

• Universal and reversible connector design
• Prefilled with PENETROX joint compound
• Massive aluminum structure reduces corrosion

Product Highlights

This product is ideal for overhead connectivity, ensuring solid electrical connections in demanding environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181013925

Technical Specifications

• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Dimensions: 1.88 inches L x 0.89 inches W x 1.42 inches H
• Material: Aluminum
• Minimum Run Tap: 4/0 AWG, 200 kcmil
• Maximum Run Tap: 1 AWG/300 kcmil
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, RUS Certified, Buy American Act Compliant, PROP65 compliant
• Shape: Figure H
