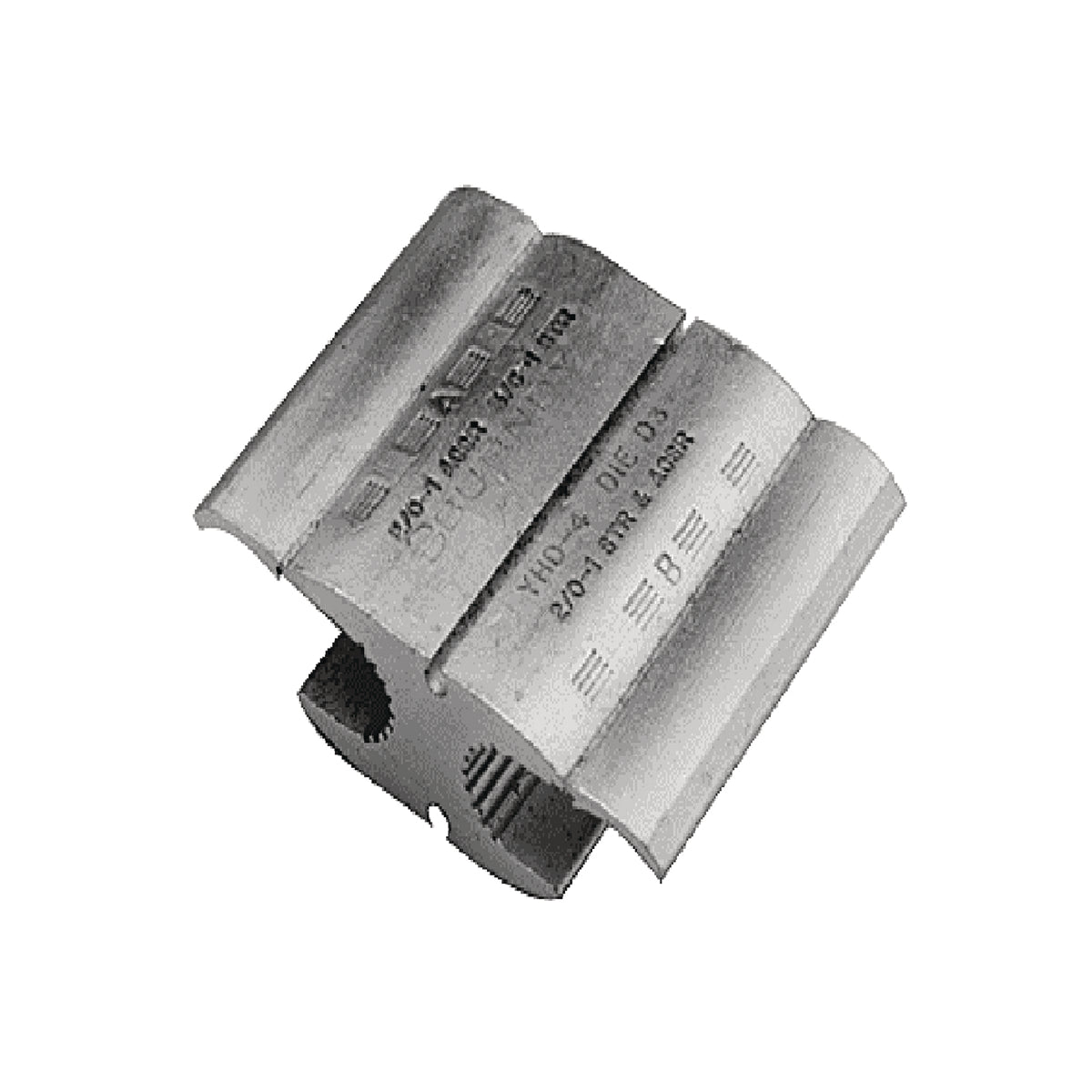

Hubbell YHD3 BURNDY 1/0-2/0R 6-2T AL H TAP

Product Description

The Hubbell YHD3 is a BURNDY Compression Line Tap Connector designed for various applications. This Type YHD connector is suitable for 1/0 to 4/0 AWG main sizes and 6 to 1/0 AWG tap sizes. It effectively connects ACSR, aluminum, or copper conductors, meeting high-quality standards.

• Accommodates aluminum to copper and aluminum to aluminum conductors
• Applies to a conductor range from 6 AWG solid to 4/0 AWG ACSR
• Compatible with mechanical or hydraulic tools and specific die sets

Product Highlights

The YHD3 enables effective connections in electrical systems, especially where varied conductor sizes exist. With reliable performance, it is ideal for both commercial and industrial applications.

Product Information

Standard Information

• Type: Type YHD
• Manufacturer: Hubbell

Technical Specifications

• Application: For aluminum to copper and aluminum to aluminum conductors
• Conductor Type: ACSR, Aluminum, Copper, Solid, Stranded
• Dimensions: 1.88 in L x 1.47 in W x 0.76 in H
• Main Run Size: 1/0 to 4/0 AWG
• Material: Aluminum
• Shape: Figure H
• Tap Size: 6 to 1/0 AWG
• Standards/Approvals: BAA Compliant, RoHS Compliant, UL 489, CSA C22.2 No 5
