Hubbell YHD250 BURNDY 3/0-4/0R 6-2T AL H TAP 25/BOX

Product Description

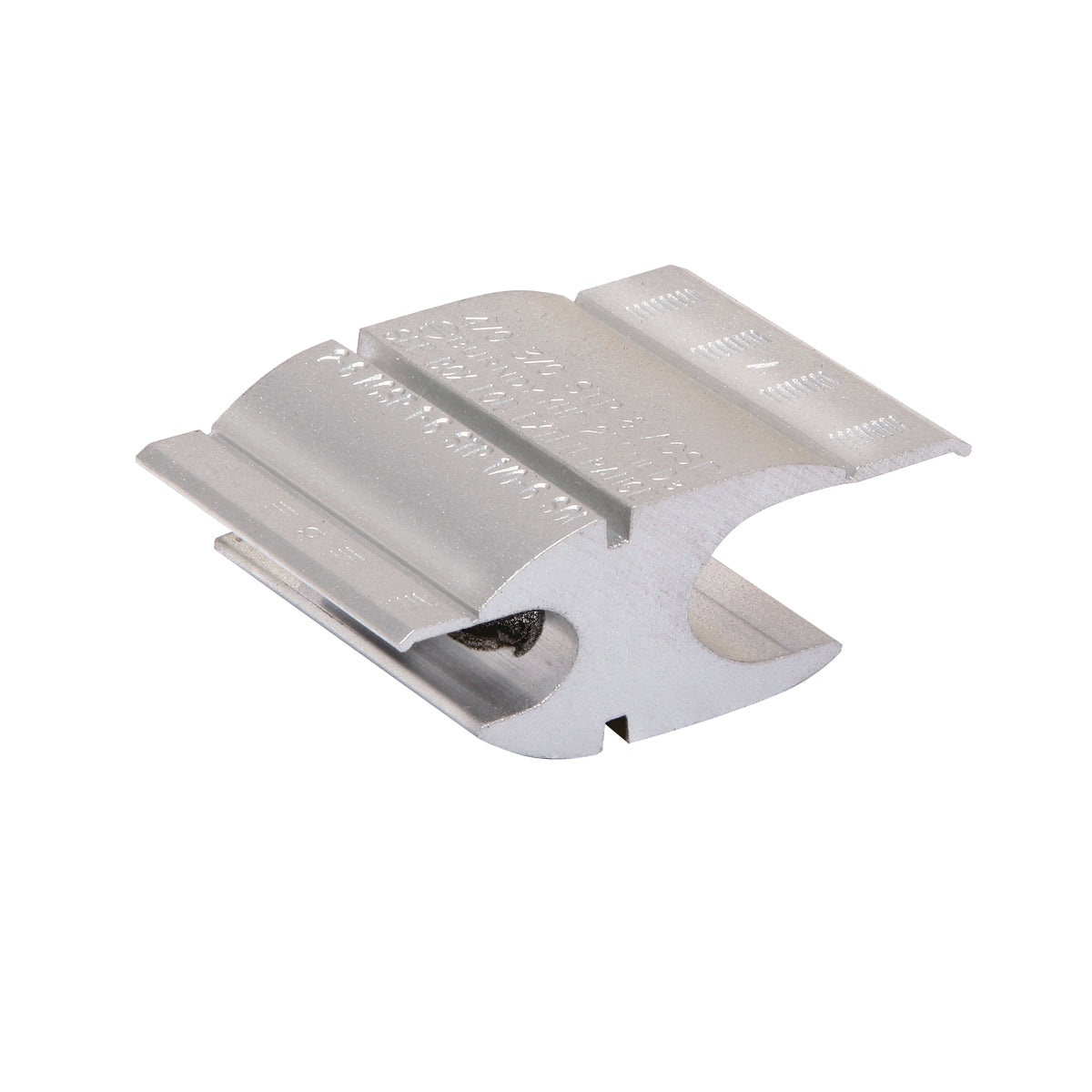

The Hubbell YHD250 is a BURNDY compression line tap connector. This connector is suitable for use with conductors such as ACSR, aluminum, and copper in both solid and stranded forms. It has a capacity for a minimum run of four/zero AWG 200 kcmil and a maximum run of one AWG 300 kcmil. The design supports a convenient installation for line workers.

• Type YHD compression line connector
• Figure H shape
• Prefilled with PENETROX joint compound

Product Highlights

The YHD250 connector is an essential tool for electrical overhead connections, designed for efficiency and durability.

Product Information

Standard Information

• Manufacturer: Hubbell
• Product Name: YHD250 BURNDY 3/0-4/0R 6-2T AL H TAP

Technical Specifications

• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Dimensions: 1.62 inches long x 0.89 inches wide x 1.47 inches high
• Finish: Unplated
• Material: Aluminum
• Maximum Run Tap: 1 AWG/300 kcmil
• Minimum Run Tap: 4/0 AWG, 200 kcmil
• Shape: Figure H
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, RUS Certified
• Manufacturer Part Number: YHD250
