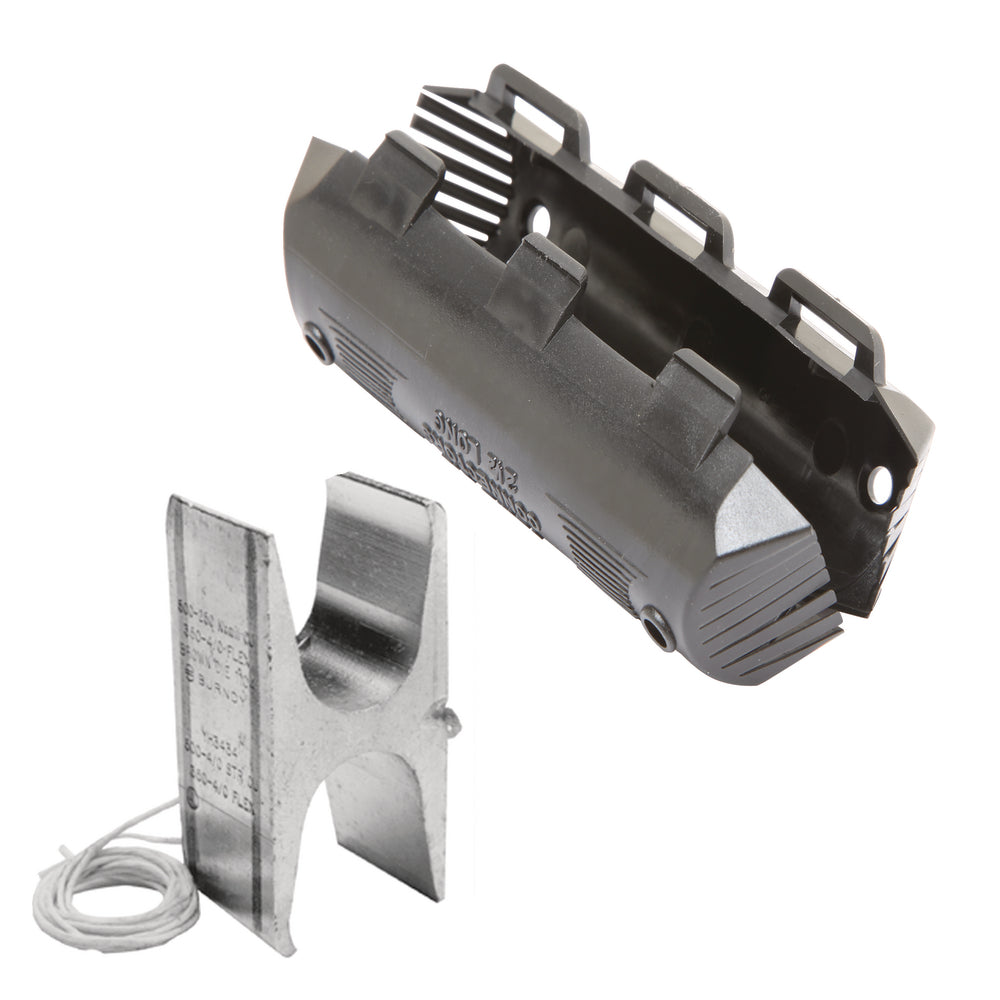

Hubbell YH292CWC YH Compression Tap Connector Power 2 Taps 2 AWG to 250 kcmil

Product Description

The Hubbell YH292CWC is a Type YH Compression Tap Connector designed for efficient electrical connections. This connector features a figure H shape that accommodates two taps and supports wire sizes ranging from two AWG to two hundred fifty kcmil for main runs and fourteen AWG to two AWG for taps. It simplifies installations and minimizes overall installation costs.

• Compatible with Y750 tool and U654 die
• Electro-TiN coating enhances durability
• Suitable for multiple copper cable combination applications

Product Highlights

This compression tap connector is easy to install and provides flexibility for system designs. Its independent tap grooves allow for single or multiple tap usage while ensuring secure connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• Model Number: YH292CWC

Technical Specifications

• Application: Accommodates various copper cable combinations
• Conductor Type: Commercial stranded copper and flexible copper
• Dimensions: 0.9 inches L x 0.9 inches W x 1.52 inches H
• Finish: Electro-TiN Coated
• Main Run Size: 2 AWG to 250 kcmil
• Material: Copper
• Shape: Figure H
• Temperature Rating: 194 degrees F
• Total Taps: 2
• Type: Type YH
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant
