Product Description

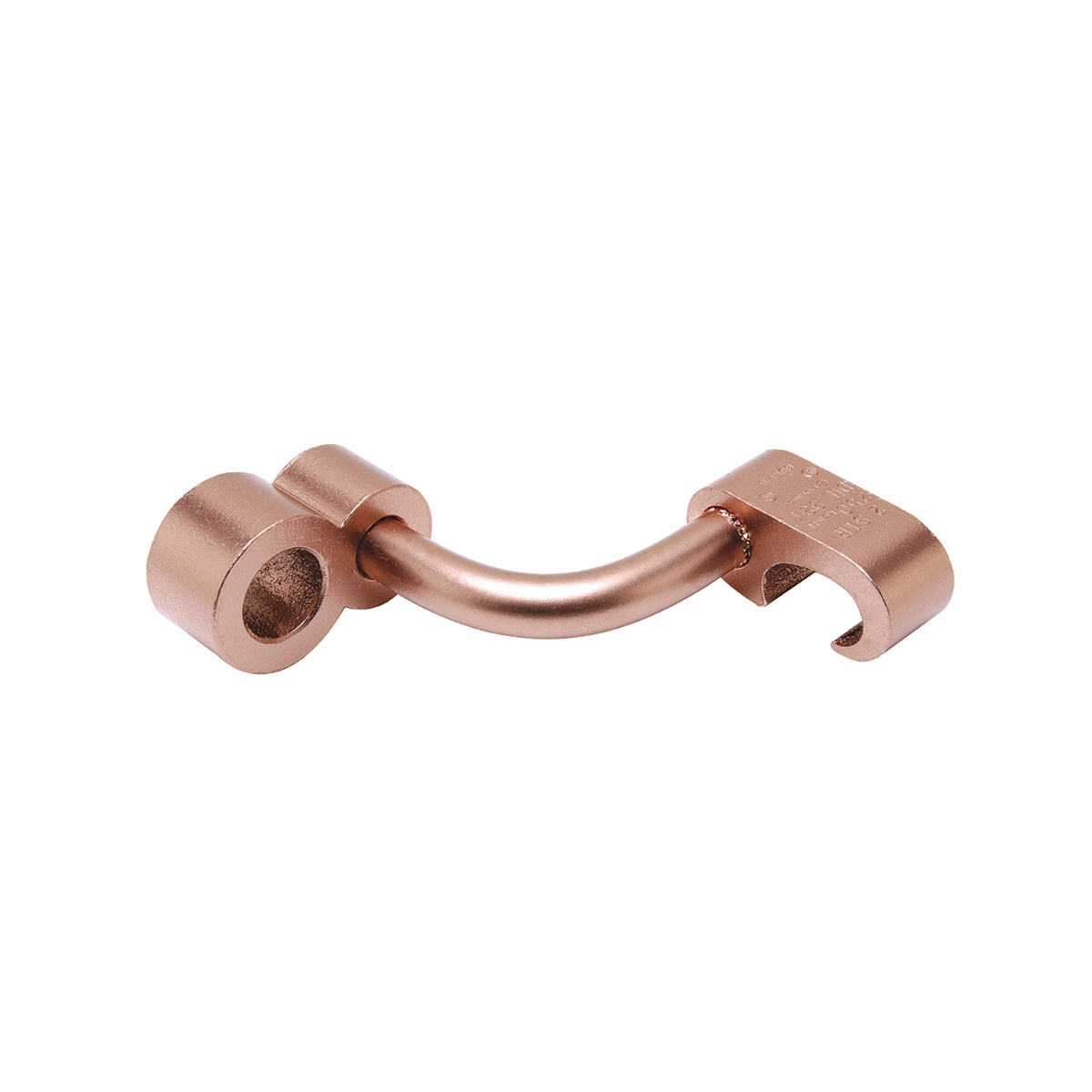

The Hubbell YGLR29C58 is a compression connector designed for grounding applications. This connector is suitable for use with 1 AWG to 250 kcmil conductors. It connects copper cables to ground rods efficiently. The connector is designed to be durable and reliable in various environments.
- Compatible with 1 AWG to 250 kcmil conductors
- Includes PENETROX E-oxide inhibitor for enhanced performance
- Suitable for direct burial in earth or concrete
Product Highlights
The Hubbell YGLR29C58 stands out for its robust design and effectiveness in grounding solutions.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78181022081
Technical Specifications
-
Application: For direct burial in earth and concrete
-
Conductor Size: 1 AWG, 2 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 91.65 kcmil, 248.8 kcmil, 250 kcmil
-
Dimensions: 0.31 in Dia x 2.53 in L
-
Finish: Unplated
-
Material: Copper
-
Rod Size: 5/8 in
-
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Type: Type YGLR-C
