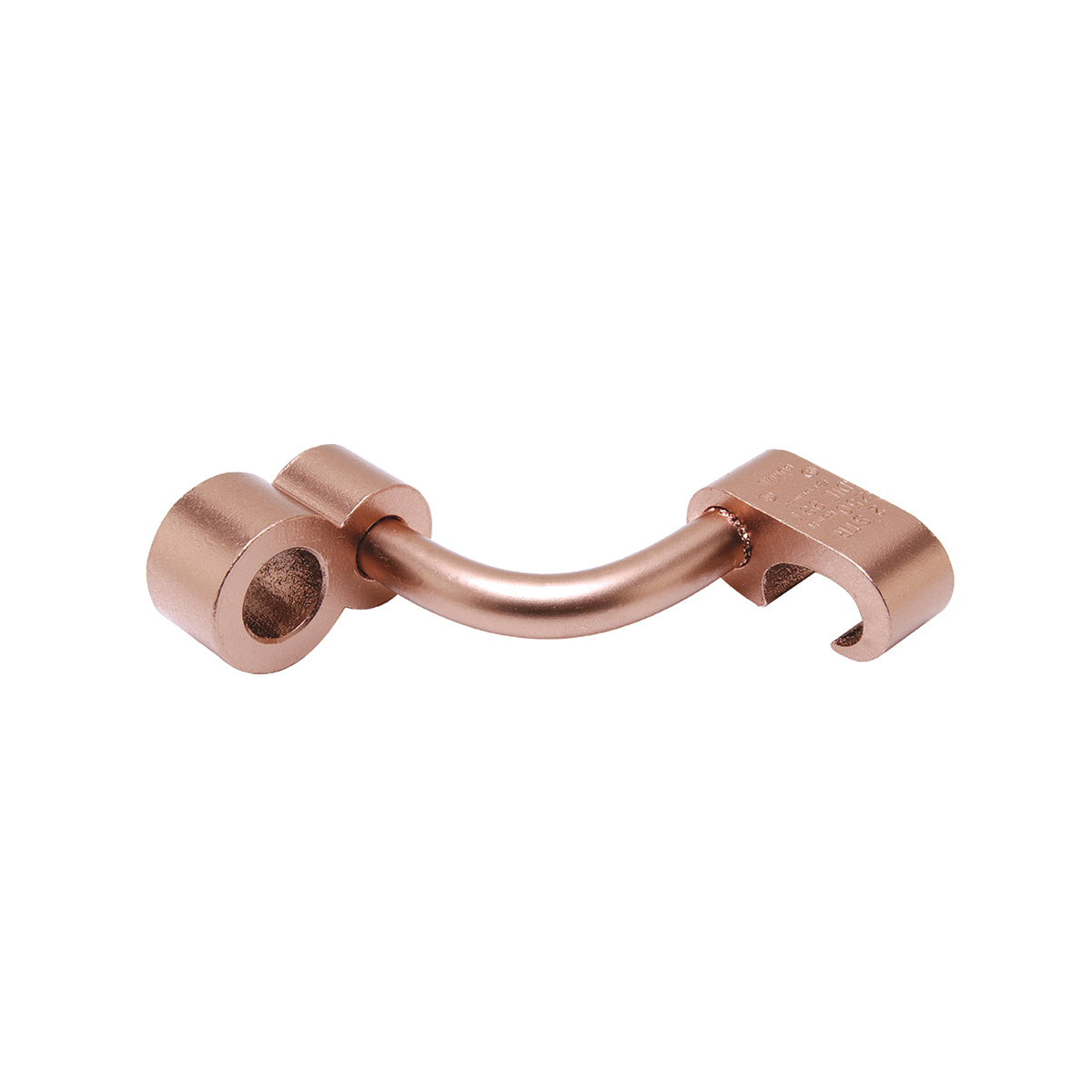

Hubbell YGLR29C34 YGLR-C Unplated Compression Connector 250MCM Rod

Product Description

The Hubbell YGLR29C34 is a compression connector designed for grounding applications. It is suitable for various conductor sizes from 1 AWG to 250 kcmil. This connector ensures a secure connection between ground rods and copper cables.

• Compatible with 1 AWG to 250 kcmil conductors
• Made of unplated copper
• Designed for direct burial in earth and concrete

Product Highlights

This connector provides excellent torque strength and is prefilled with PENETROX for enhanced performance.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YGLR29C34

Technical Specifications

• Application: For direct burial in earth and concrete
• Conductor Size: 1 AWG, 2 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 91.65 kcmil, 248.8 kcmil, 250 kcmil
• Dimensions: 0.5 in diameter x 2.63 in length
• Finish: Unplated
• Material: Copper
• Rod Size: 3/4 in
• Specifications: Ground Rod to Grid
• Standards/Approvals: ARRA Compliant | Buy American Act Compliant | RoHS Compliant | PROP65 Warning: This product may expose you to chemicals that are known to cause cancer and reproductive harm.
• Type: Type YGLR-C Unplated
