Hubbell YGL29C29 YGL-C Compression Cross Grid Connector 2 AWG to 250 kcmil 1/2 to 5/8 in Rod

Product Description

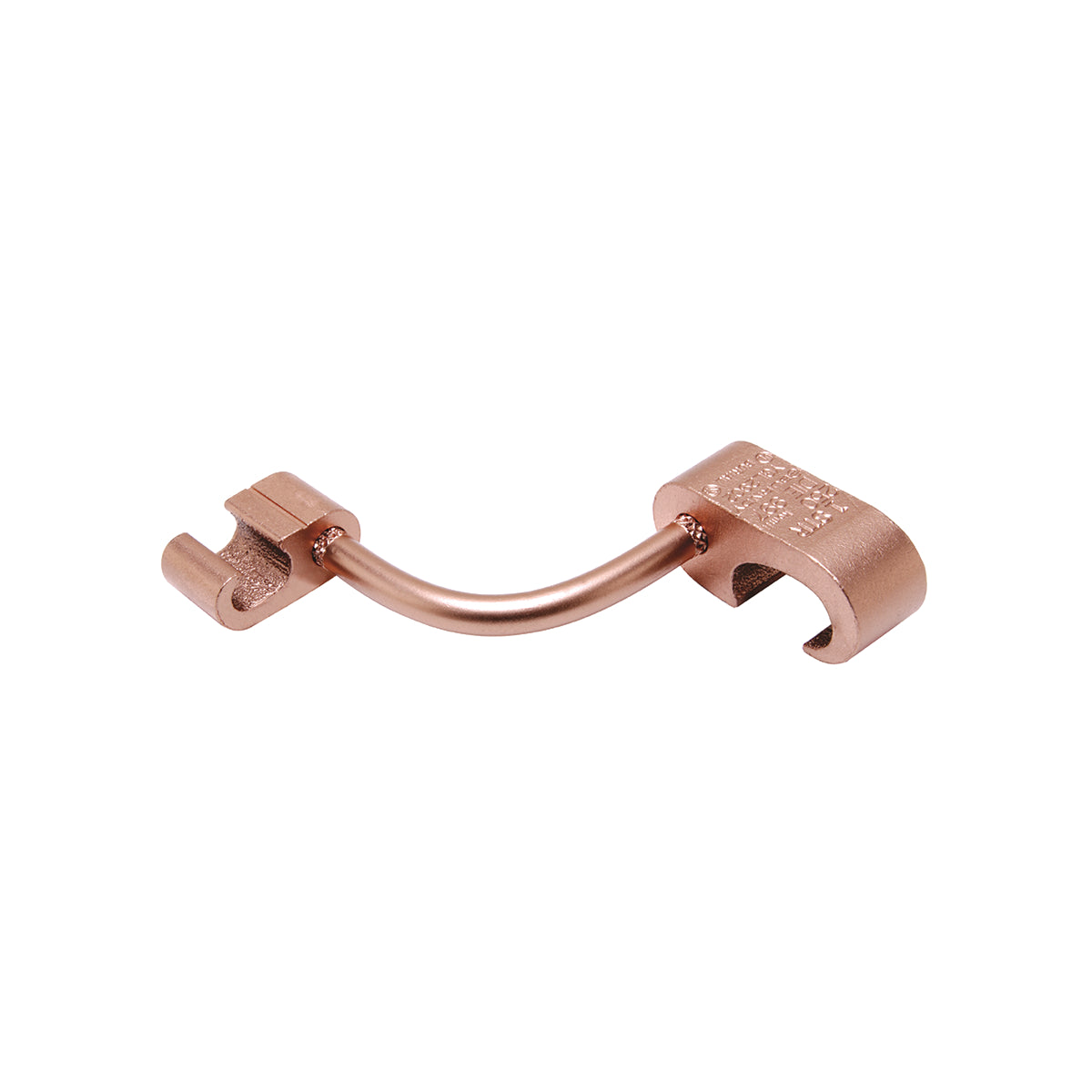

The Hubbell YGL29C29 is a type YGL-C compression cross grid connector. It is designed for use with conductors ranging from two AWG to two hundred fifty kcmil and rods measuring from one-half to five-eighths inches in diameter. This connector is made of copper and is unplated. It is suitable for direct burial in earth and concrete.

• Irreversible compression connector allows for pre-installation adjustment.
• Compatible with multiple AWG sizes using six connectors and four dies.
• PENETROX prefilled for enhanced performance.

Product Highlights

This connector is ideal for grounding applications and can handle various sizes for cable connections.

Product Information

Standard Information

• Application: For direct burial in earth and concrete
• Conductor Size: 2 AWG to 250 kcmil

Technical Specifications

• Dimensions: 2-1/2 in L
• Finish: Unplated
• Material: Copper
• Rod Size: 1/2 to 5/8 in
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65 Warning
• Type: Type YGL-C
