Hubbell YGHC34C29 BURNDY 300-500 TO 3/0-250 GRD C 78181022107

Product Description

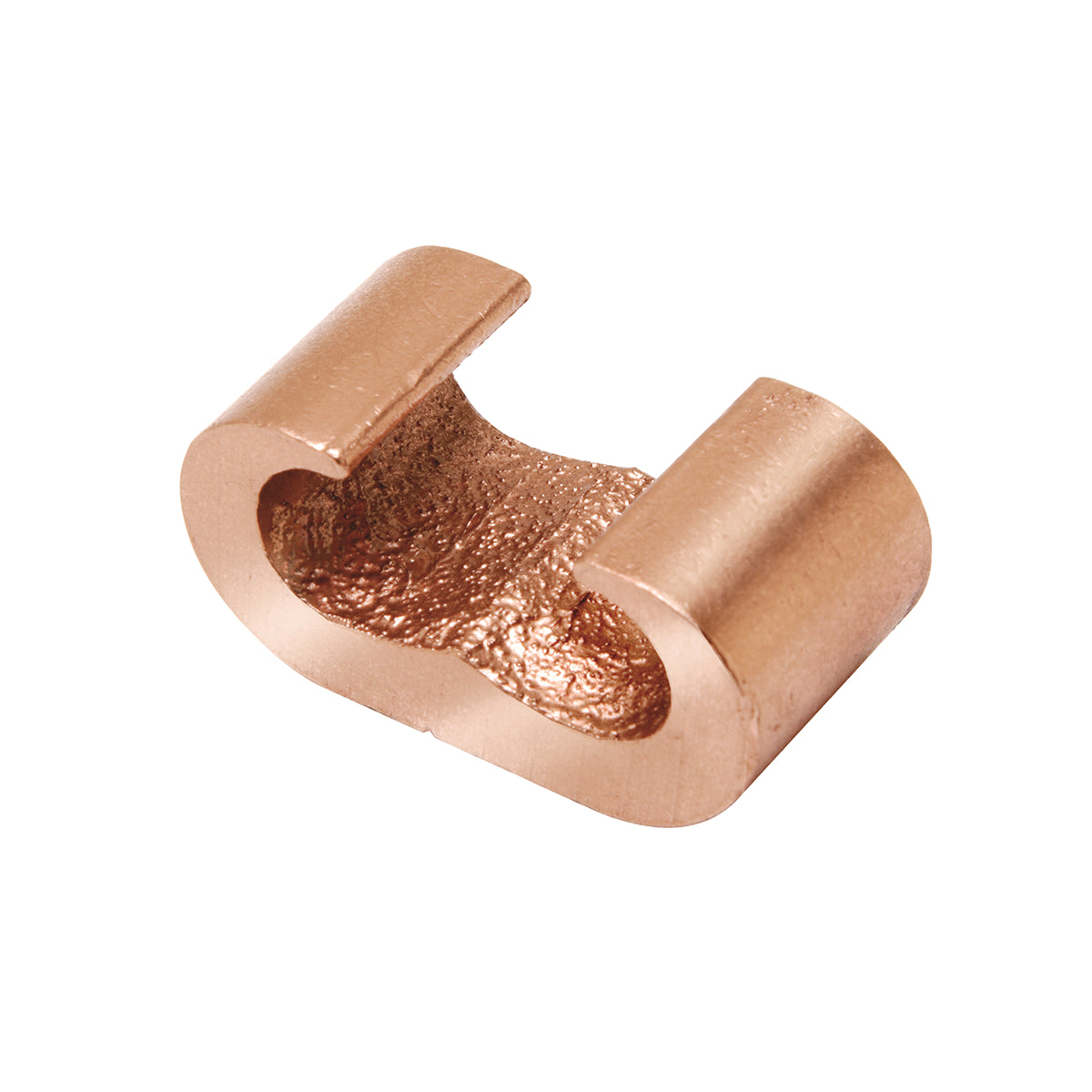

BURNDY® HYGROUND® HYTAP™ Compression C-Tap Connector, type YGHC-C, is designed for connecting copper conductors. The main size accommodates three hundred to five hundred kcmil while the tap size can handle three zero AWG to two hundred fifty kcmil. This connector is suitable for commercial stranded and metric copper conductors.

• Designed for direct burial applications in earth or concrete
• Uses Element A Die Index for reliable connection
• Constructed from unplated copper material

Product Highlights

This product supports various cable combinations. It is pre-filled with PENETROX® compound and features an irreversible compression design.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181022107

Technical Specifications

• Shape: C
• Main Run Size: 300 to 500 kcmil
• Tap Size: 3/0 AWG to 250 kcmil
• Dimensions: 0.88 inches L x 2.67 inches H
• Material: Copper
• Finish: Unplated
• Application: Suitable for direct burial applications
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, Buy American Act Compliant
