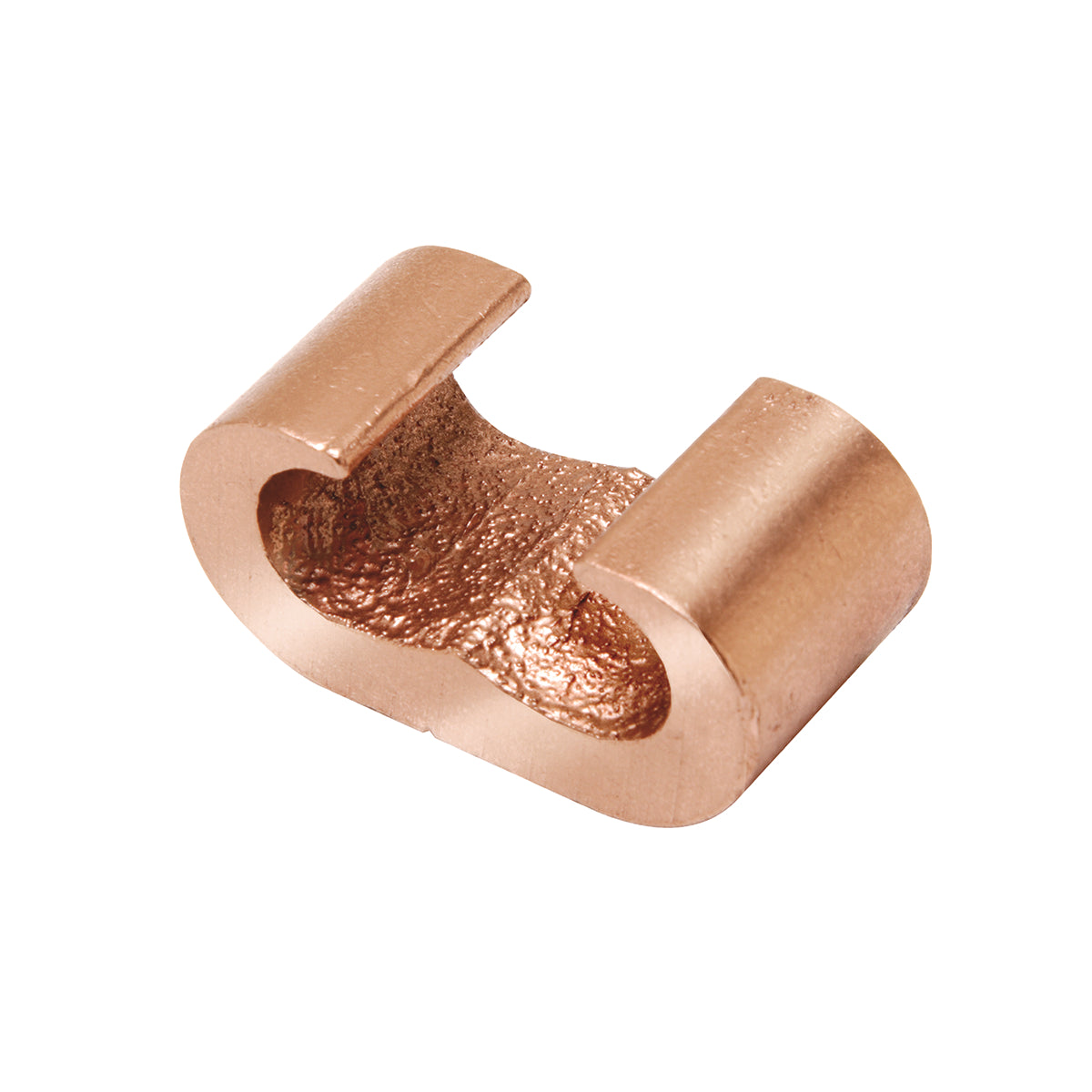

Hubbell YGHC29C29 YGHC-C Compression C-Tap Connector 250MCM Tap

Product Description

The Hubbell YGHC29C29 is a YGHC-C Compression C-Tap Connector designed for effective electrical connections. This connector accommodates sizes from 3/0 AWG to 250 kcmil for main cables and 3/0 AWG to 300 kcmil for tap cables.

• Direct burial application for earth or concrete.
• Unplated copper construction for reliable conductivity.
• Specifications include 997 Element A Die Index.

Product Highlights

Designed to handle commercial stranded and metric copper conductors, this connector is suitable for direct burial applications. It features irreversible compression connectors and allows multiple cables to be joined securely.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: YGHC29C29

Technical Specifications

• Type: YGHC-C
• Shape: C
• Material: Copper
• Finish: Unplated
• Main Run Size: 3/0 AWG to 250 kcmil
• Tap Size: 3/0 AWG to 300 kcmil
• Dimensions: 0.88 in L x 2.06 in H
• Application: For direct burial applications in earth or concrete
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, Buy American Act Compliant, PROP65 warnings applicable
