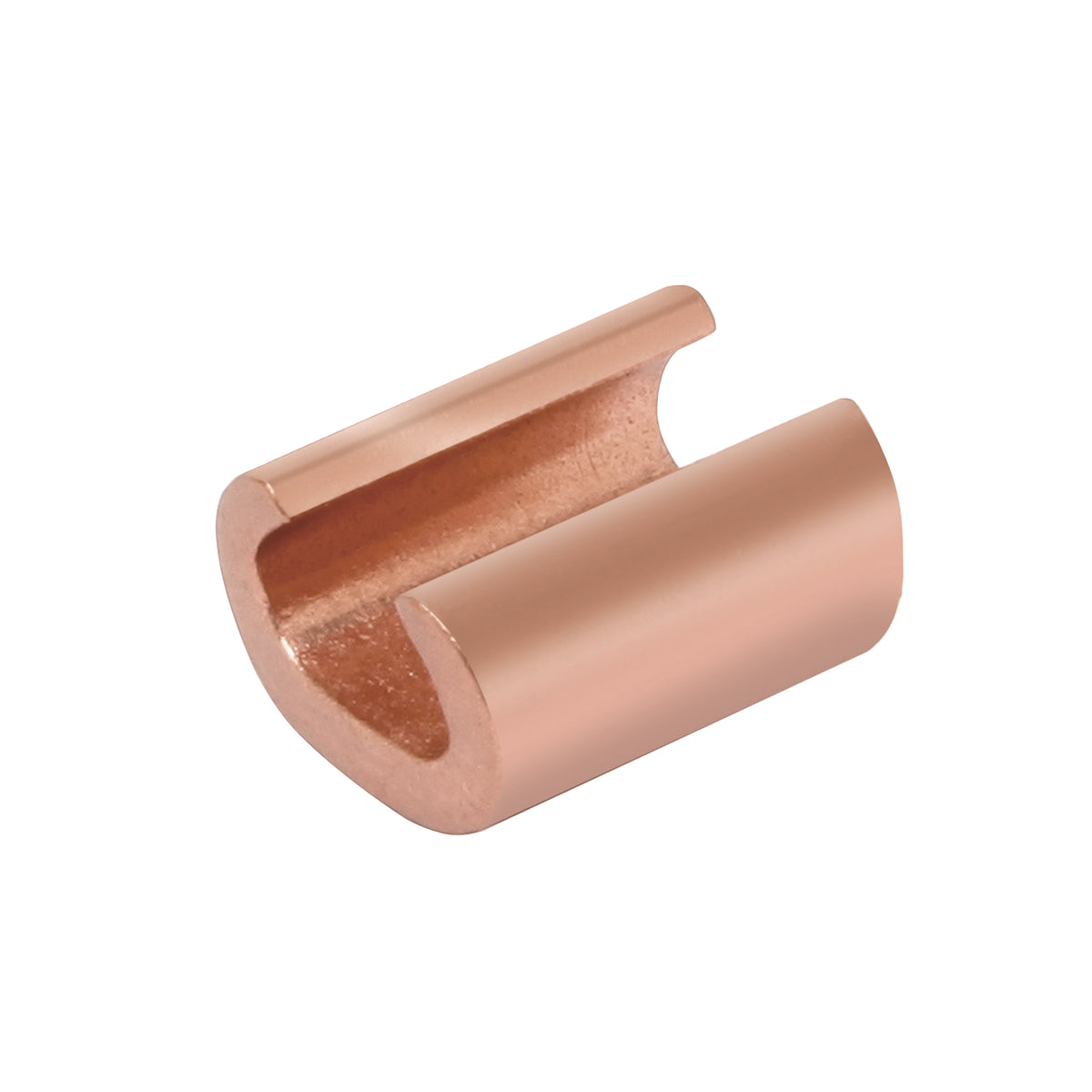

Hubbell YC8C8 YC-C Compression C-Tap Connector 8 AWG Main 10 to 8 AWG Tap

Product Description

The Hubbell YC8C8 is a Compression C-Tap Connector designed for use with copper conductors. It accepts an eight AWG main/run and taps from ten to eight AWG. This connector can handle voltage ratings of six hundred to thirty-five thousand VAC. It is made from commercial stranded copper for low resistance and high conductivity.

• Range-taking design minimizes inventory needs.
• Compact form allows for easy taping and insulation.
• Compatible with multiple tools and die types for versatility.

Product Highlights

This connector provides reliable connections for tap/parallel applications and ensures low installed cost due to its economical design.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181011450

Technical Specifications

• Application: For making tap/parallel copper connections.
• Conductor Type: Commercial stranded copper.
• Dimensions: One-half inch length.
• Finish: Plain copper plated.
• Main Run Size: Eight AWG.
• Material: Copper.
• Series: YC-C.
• Shape: C.
• Specifications: Two hundred thirty-eight Element A Die Index.
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL 486A/486B, Buy American Act Compliant.
• Tap Size: Ten to eight AWG.
• Temperature Rating: Ninety degrees Celsius.
• Voltage Rating: Six hundred to thirty-five thousand VAC.
