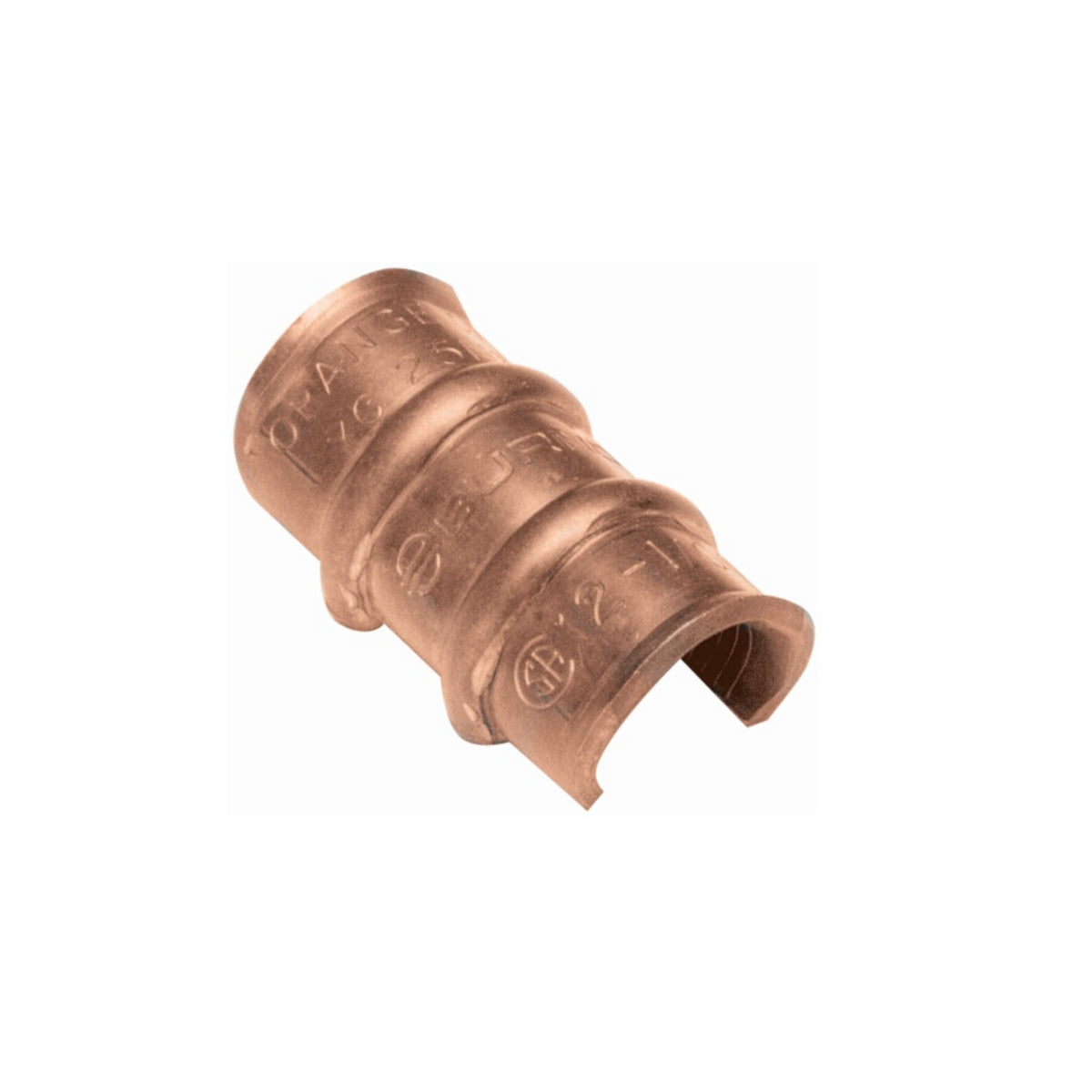

Hubbell YC6L12 Burndy Copper Compression C Tap, Thin Wall, 8 AWG (Run), 12 to 8 AWG (Tap)

Product Description

The Hubbell YC6L12 is a copper compression C tap connector designed for efficient electrical connections. This connector accommodates a run size of eight AWG and tap sizes ranging from twelve to eight AWG, making it versatile for various applications.

• Manufactured from high conductivity wrought copper for low resistance
• Features reinforced ribs to provide maximum pull-out values
• Compact design ensures ease of taping and insulating connections

Product Highlights

Utilizing a range-taking design, this connector lowers inventory requirements while ensuring reliability in electrical systems. It is suitable for making parallel connections and is ideal for use in both residential and commercial settings.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Burndy

Technical Specifications

• Material: Copper
• Voltage Rating: 600 Volt
• Max Voltage: 35000 Volt
• Conductor Size: 8-6 AWG
• Tap Size: 12 to 8 AWG
• Dimensions: 0.6 in Length x 0.72 in Thickness x 0.33 in Width
• Temperature Rating: 194 degrees F
• Finish: Tin-Plated
• Connection Type: C-Tap
• Country of Origin: USA
• Applications: For making copper tap and parallel connections
