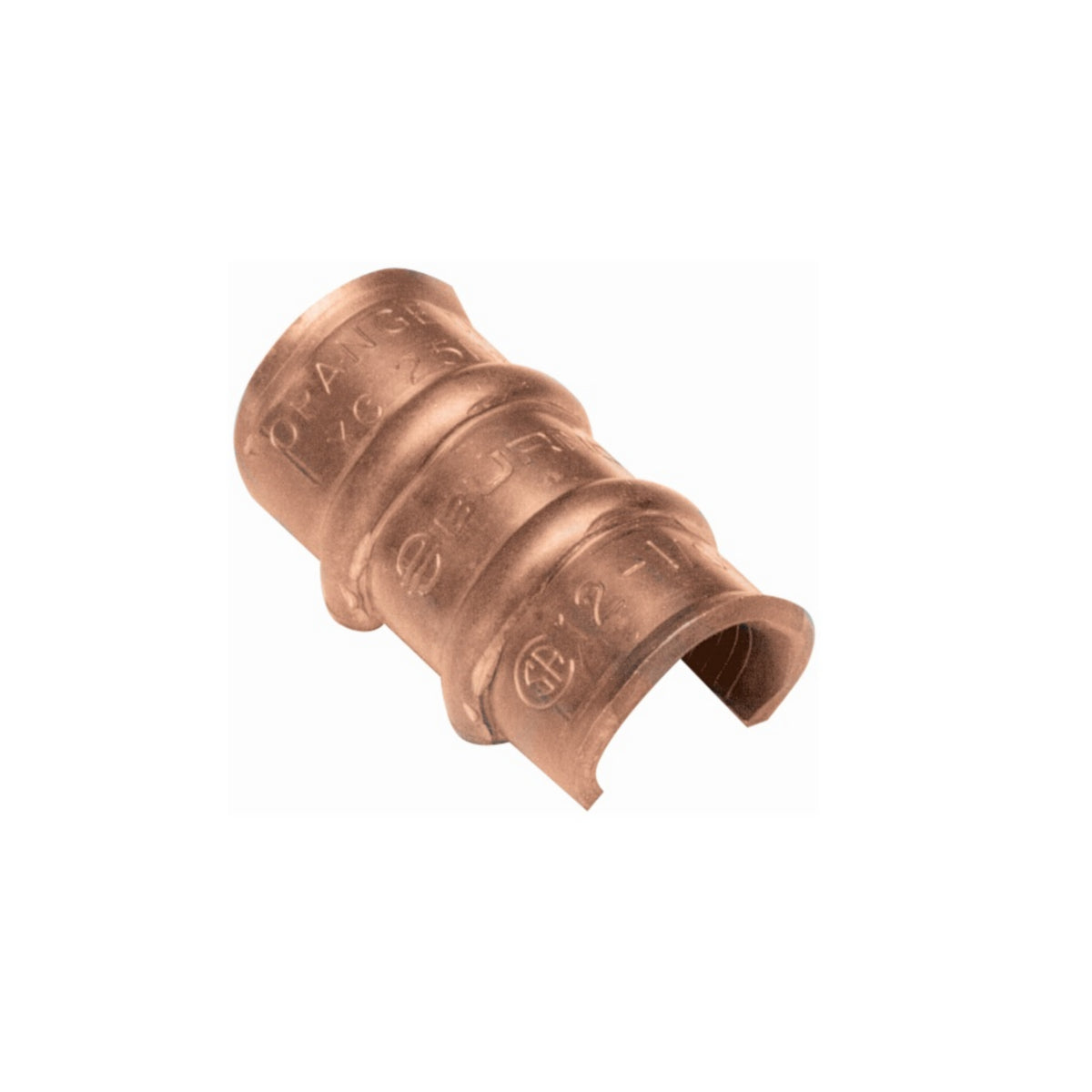

Hubbell YC3L12 Copper Compression C Tap, Thin Wall, 5-4 AWG (Run), 6-5 AWG (Tap)

Product Description

The Hubbell YC3L12 is a copper compression C tap connector designed for connecting conductors in wire systems. It is suitable for use with main conductors ranging from five to four AWG and tap conductors from six to five AWG. The connector's thin wall design allows for a compact fit, making installations easier.

• Made with high conductivity copper for low resistance and improved electrical conductivity.
• Features reinforced ribs for enhanced mechanical strength and easier application.
• Color-coded for easy identification of wire sizes and die index.

Product Highlights

This connector is ideal for making parallel connections in electrical systems, allowing for efficient wire management and reduced inventory needs.

Product Information

Standard Information

• Manufacturer: Hubbell Incorporated
• Brand: Burndy

Technical Specifications

• Material: Copper
• Size: 1.18 inches in length, 0.46 inches width, 0.08 inches height
• Voltage Rating: 600 VAC
• Temperature Rating: 194 degrees Fahrenheit
• Application: For making copper tap and parallel connections
• Max Voltage: 35000 V
• Tap Size: 12, 10, 8, 6, 5 AWG
• Color Coding: Green
• Finish: Bright Tin Coated
• Type: YC-L Series
