Hubbell YC2L12 BURNDY THIN C-TAP 4 RUN 4 TAP

Product Description

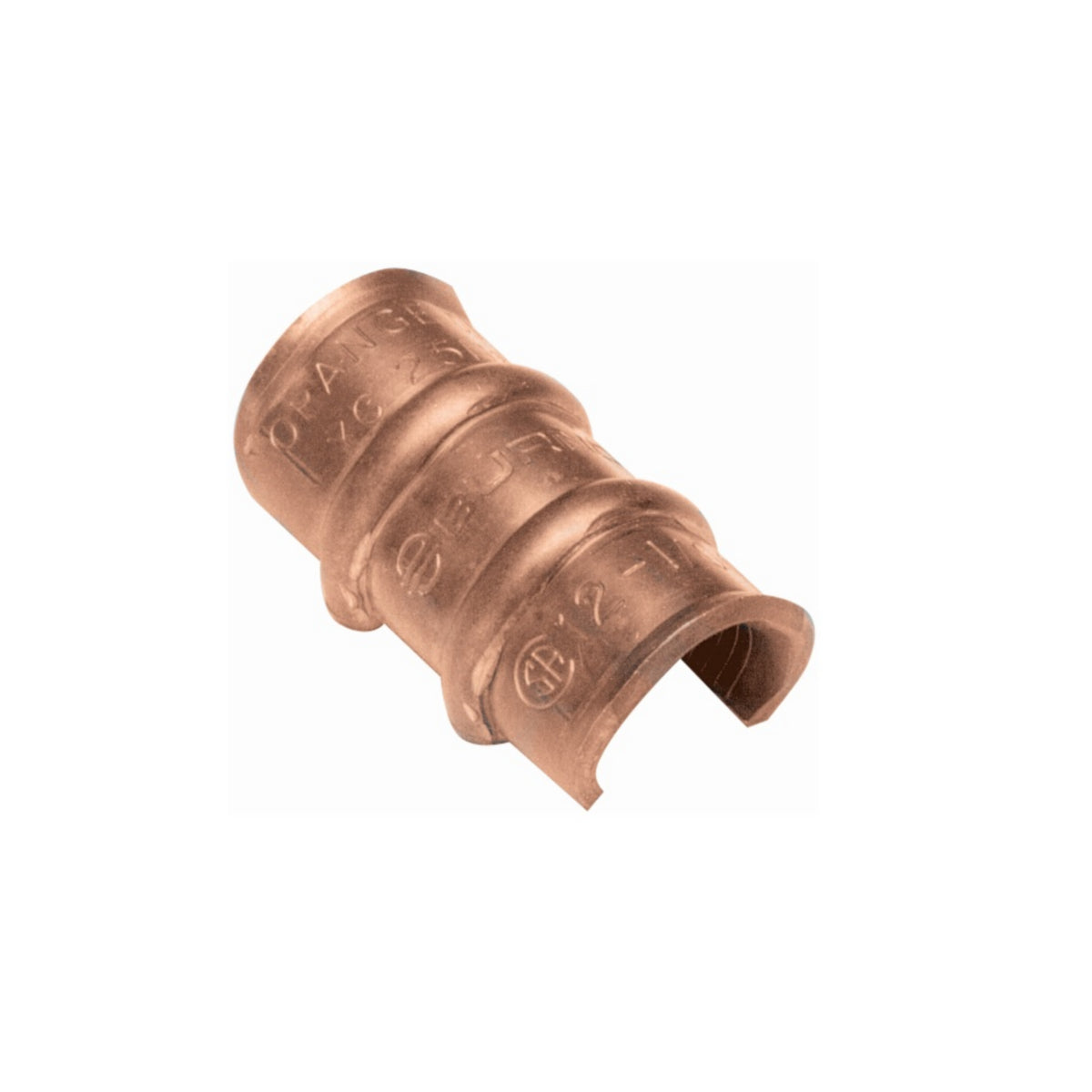

The Hubbell YC2L12 is a BURNDY CRIMPIT Compression C-Tap Connector designed for electrical applications. This connector features a thinwall design and is suitable for connecting stranded copper conductors. The connector can handle a main/running size of four AWG and tap sizes ranging from twelve to four AWG. It operates at a voltage rating of six hundred VAC and can withstand temperatures up to one hundred ninety-four degrees Fahrenheit.

• Manufactured from high conductivity copper for low resistance.
• Range-taking connector reduces inventory needs.
• Compact size facilitates easy taping and insulation.

Product Highlights

This connector is ideal for making copper tap and parallel connections in various electrical applications, ensuring reliability and efficiency.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181004015

Technical Specifications

• Application: For making copper tap and parallel connections
• Conductor Type: Stranded Copper
• Dimensions: 1.18 in L x 0.81 in THK
• Finish: Bright Tin Coated
• Main Run Size: 4 AWG
• Manufacturer Part Number: YC2L12
• Material: Copper
• Shape: Figure C
• Specifications: 12 Element A Die Code (Mechanical), 12M Element A Die Code (Hydraulic), 1 Rib, 1-3/16 in L Wire Strip
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, Buy American Act Compliant, PROP65: This product can expose you to chemicals including lead, which are known to cause cancer and reproductive harm.
• Tap Size: 12 to 4 AWG
• Temperature Rating: 194 deg F
• Type: Type YC-L Thinwall
• Voltage Rating: 600 VAC
