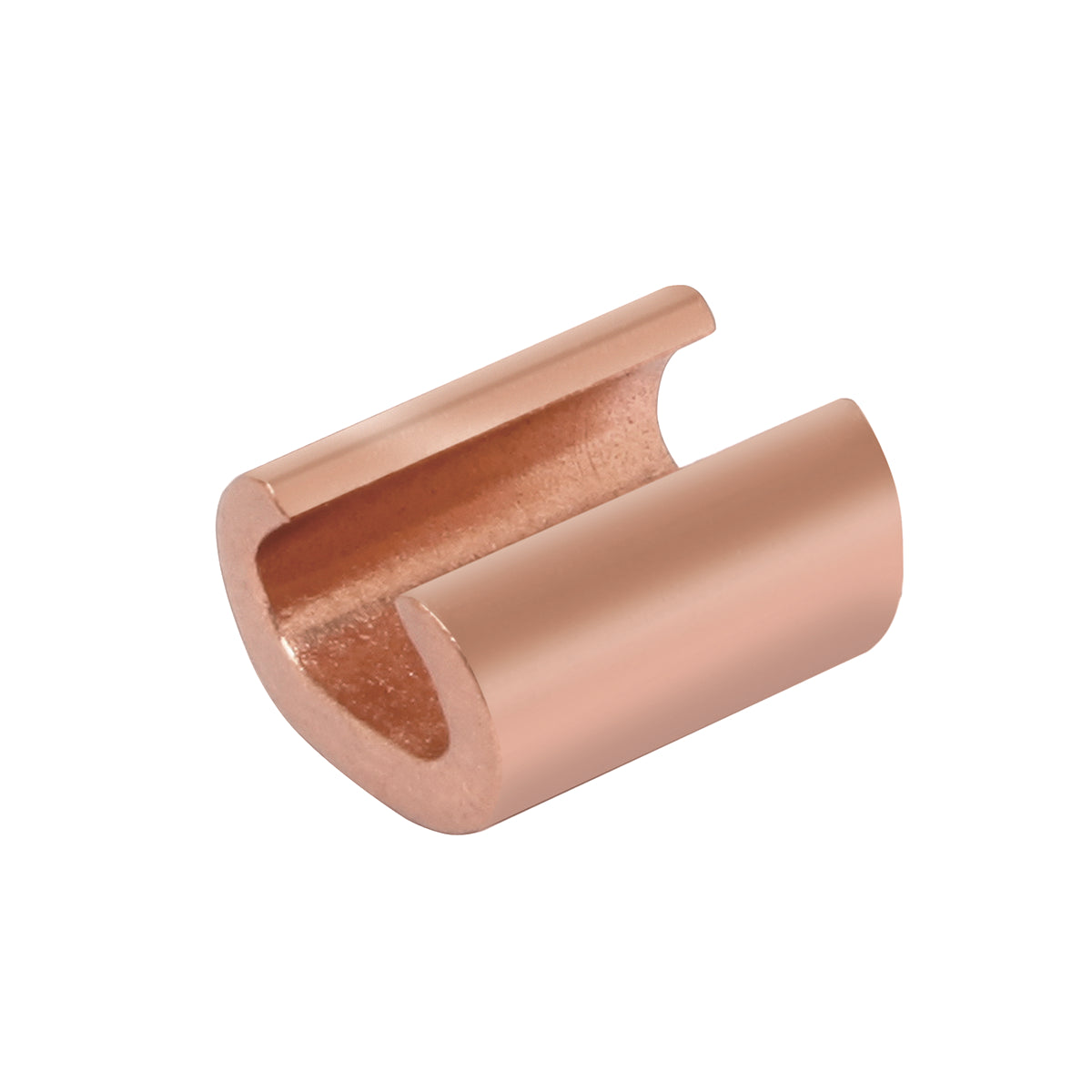

Hubbell YC26C26 BURNDY 1/0-2/0 TO 1/0-2/0 CU FI 78181011530

Product Description

Hubbell offers the YC26C26 BURNDY Compression C-Tap Connector, designed for 1/0 to 2/0 AWG main and tap connections. This connector supports a voltage rating of six hundred to thirty-five thousand volts alternating current (VAC) and is suitable for commercial stranded copper conductors.

• Range-taking design lowers inventory needs.
• Compact size for ease of insulation and taping.
• Made from high conductivity wrought copper for reliable performance.

Product Highlights

This connector is engineered for tap or parallel copper connections. Key specifications include compliance with multiple standards and a temperature rating up to ninety degrees Celsius.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181011530

Technical Specifications

• Type: Type YC-C
• Shape: C
• Conductor Type: Commercial stranded copper
• Main Run Size: 1/0 to 2/0 AWG
• Tap Size: 1/0 to 2/0 AWG
• Dimensions: eleven twelfths inches long
• Finish: Plain copper plated
• Voltage Rating: 600 to 35000 VAC
• Temperature Rating: 90 degrees Celsius
• Manufacturer Part Number: YC26C26
• Standards/Approvals: ARRA compliant, RoHS compliant, Buy American Act compliant
