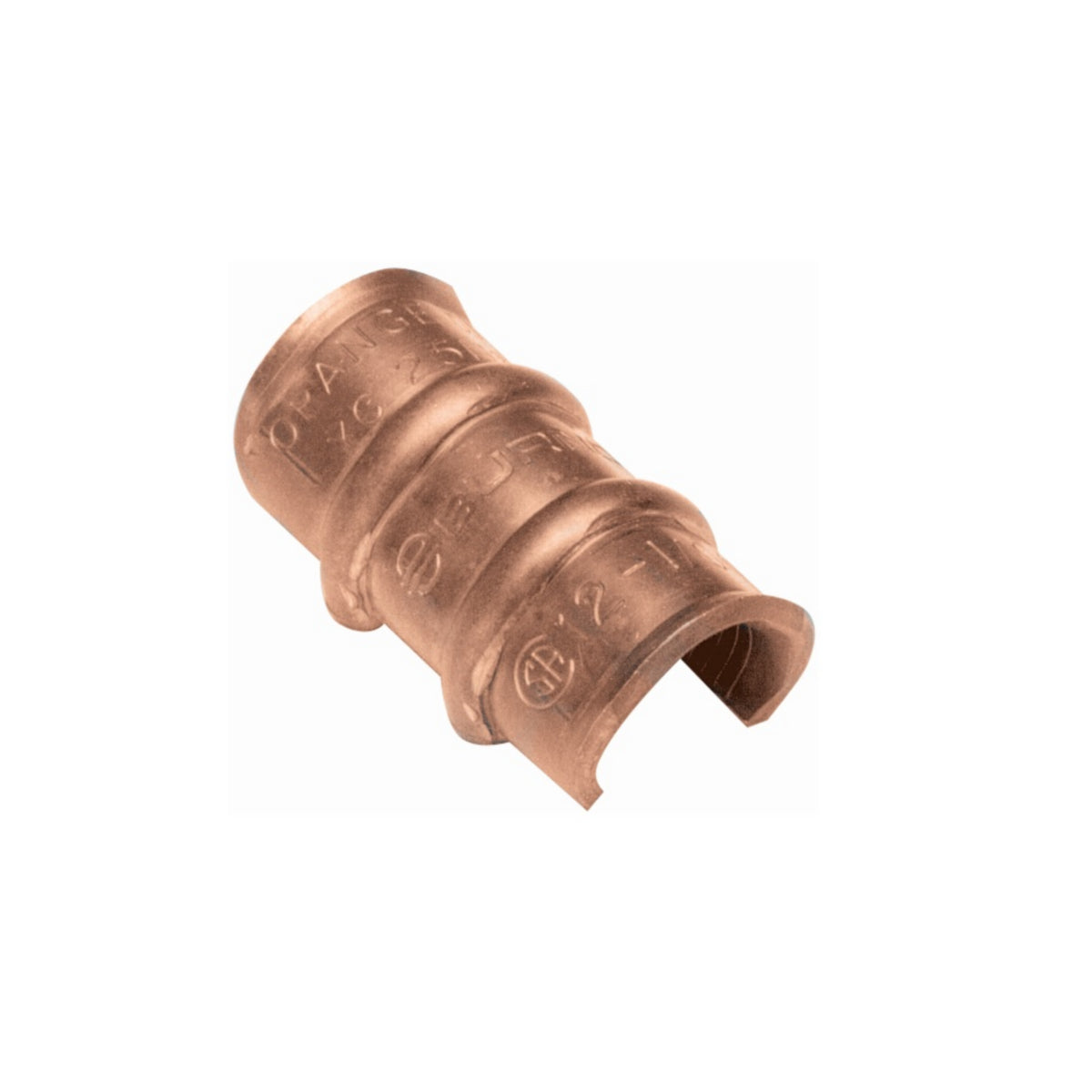

Hubbell YC1L12 Copper Compression C Tap, Thin Wall, 3 AWG (Run), 4-3 AWG (Tap)

Product Description

The Hubbell YC1L12 is a copper compression C Tap connector designed for high conductivity and reliability. This C Tap is suitable for use with 3 AWG as the main run and accepts tap sizes ranging from 12 AWG to 3 AWG. The connector is built from copper and features a tin-plated finish for enhanced durability and performance.

• Designed for 3 AWG to 12 AWG connections
• Compact size for easy installation and insulation
• Low resistance for superior electrical conductivity

Product Highlights

This C Tap connector is ideal for making copper tap and parallel connections, providing a reliable option for electrical installations.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Sub Brand: Burndy

Technical Specifications

• Material: Copper
• Type: YC-L Series
• Voltage Rating: 600 Volt
• Max Voltage: 35000 V
• Temperature Rating: 194
• Dimensions: 1.75 in Length x 0.81 in Thickness
• Conductor Sizes: 3-1 AWG
• Connection Type: C-TAP
• Application: For making copper tap and parallel connections
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, Buy American Act Compliant
