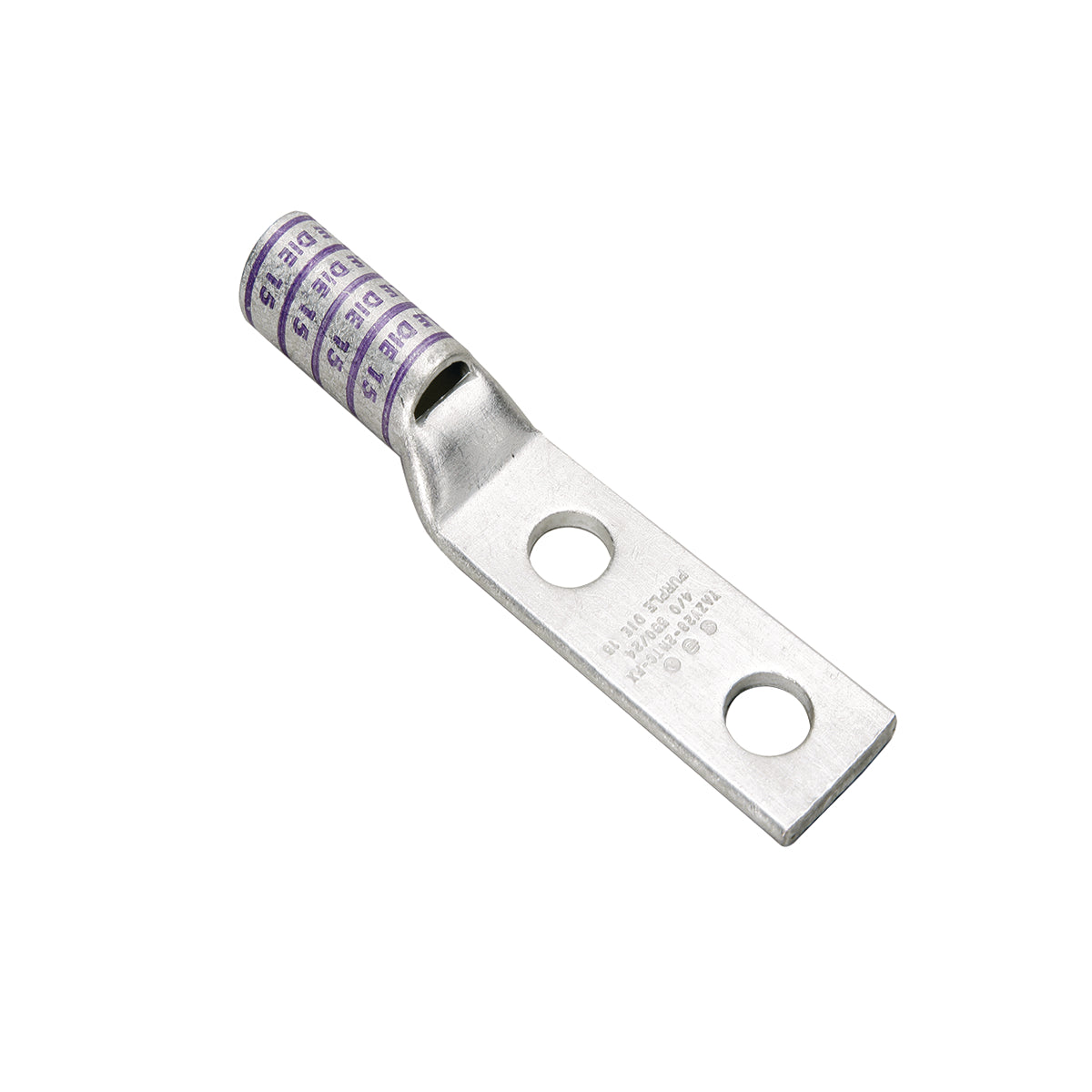

Hubbell YAZ6C2TC14 BURNDY 6AWG 2H LNG LUG

Product Description

The Hubbell YAZ6C2TC14 is a BURNDY compression lug designed for reliable electrical connections. This product is made of stranded copper and is suitable for wire sizes of six AWG. The connection can handle voltages from six hundred volts to thirty-five thousand volts. It features a standard tongue and is equipped with an inspection window for easy verification of installation.

• Meets various industry standards and approvals.
• Provides high conductivity for efficient performance.
• Manufactured with electro tin plating for long-lasting durability.

Product Highlights

This compression lug features a two-hole design that guarantees a strong connection. It has a barrel size of one point twelve inches and is rated for temperatures up to ninety degrees Celsius.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181022320

Technical Specifications

• Application: For code conductor
• Barrel Size: 1.12 inches
• Color: Blue
• Conductor Size: 6 AWG
• Conductor Type: Stranded Copper
• Die Code: 7/374
• Material: Tin Plated Copper
• Overall Length: 2.65 inches
• Series: YAZ-2TC
• Specifications: 1-3/16 inches wire strip, 5/8 inches hole spacing
• Stud Size: 1/4 inch
• Temperature Rating: 90 degrees Celsius
• Tongue Size: 0.45 inches wide x 0.08 inches thick
• Tongue Type: Standard/Straight
• Voltage Rating: 600 VAC to 35 kV
