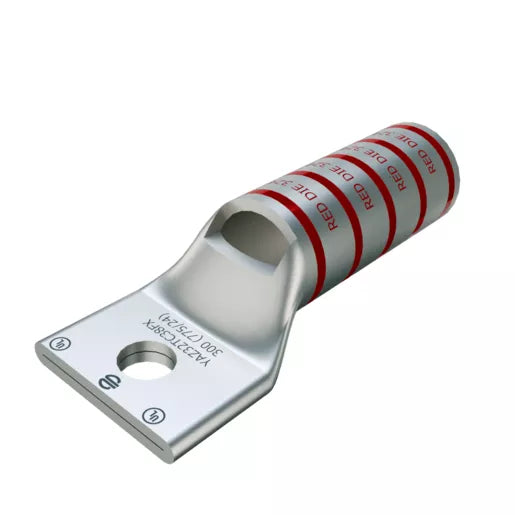

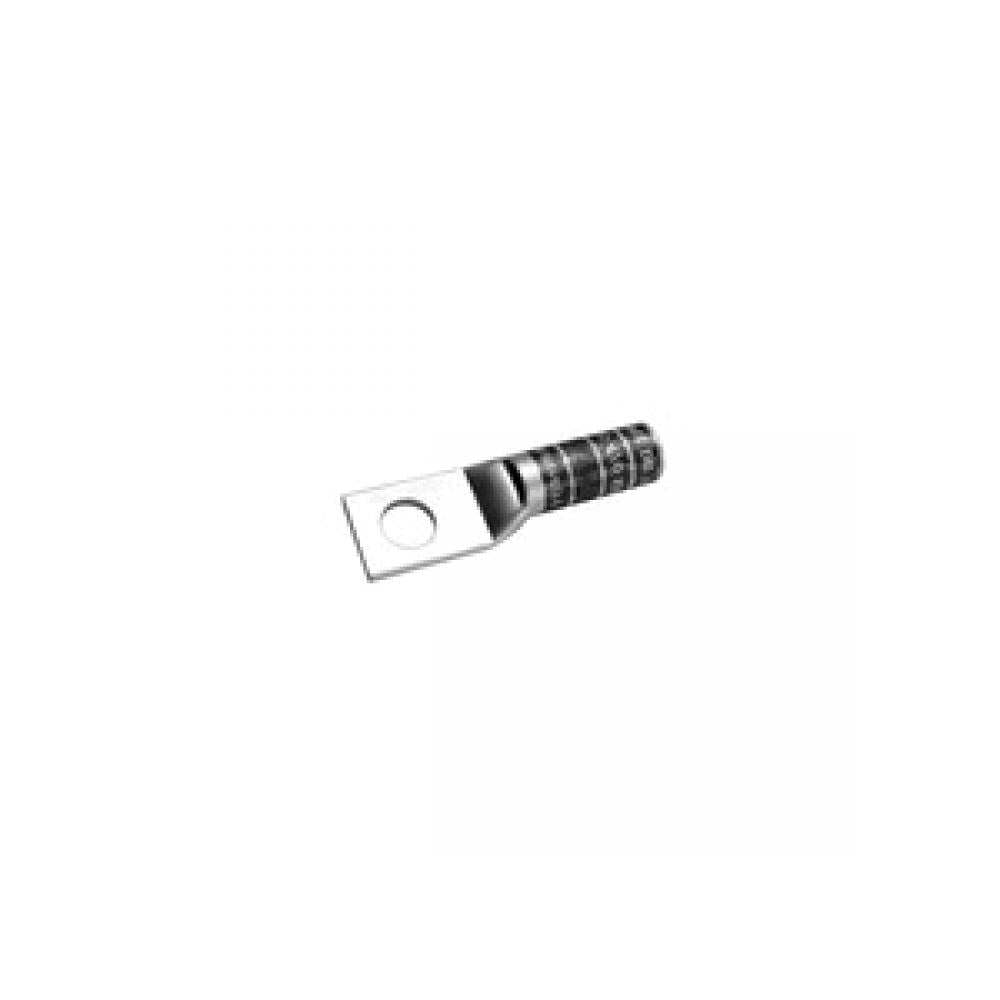

HUBBELL YAZ32TC38FX Compression Terminal 300 kcmil 1-Hole 3/8 Stud

Product Description

The HUBBELL YAZ32TC38FX is a compression lug used for connecting conductors. It is suitable for conductor sizes of 300 kcmil G, H, I, K, M, 313 DLO, and 313.1 kcmil to 24 AWG. This lug features a one-hole design and a stud size of 3/8 inches. The long barrel enhances connection stability. An internal chamfer allows for smooth wire insertion, while the electro-tin plating helps to minimize galvanic corrosion.

• Designed for conductor sizes 300 kcmil to 24 AWG.
• Electro-tin plated for corrosion resistance.
• Long barrel and internal chamfer for easy wire insertion.

Product Highlights

This compression lug is recognized for its reliability in electrical connections and compliance with industry standards.

Product Information

Standard Information

• Brand: HUBBELL
• Catalog ID: YAZ32TC38FX

Technical Specifications

• Barrel Size: 2.12 inches
• Barrel Type: Chamfered/Long/Skived
• Stud Size: 3/8 inches
• Tongue Size: 1.4 inches W x 0.19 inches THK
• Tongue Type: Straight
• Standard/Approvals: CSA Certified, RoHS Compliant, UL Listed
