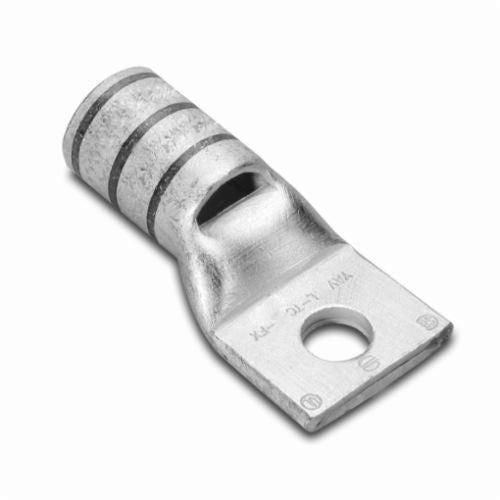

HUBBELL YAV8CL4 Uninsulated Ring Terminal 8 AWG 1/2 Stud

Product Description

The HUBBELL YAV8CL4 is an uninsulated ring terminal designed for eight American wire gauge stranded copper conductors. This product is made from seamless electrolytic copper tubing, ensuring high conductivity and excellent ductility for crimping applications. The compression lug features a one-hole ring tongue with an inspection window and a short barrel design. With electro-tin plating, it provides resistance against corrosion, making it suitable for diverse applications that require reliable electrical performance and vibration resistance.

• Manufactured from seamless electrolytic copper tubing
• Short barrel design and inspection window included
• Electro-tin plating for corrosion resistance

Product Highlights

Suitable for a variety of applications including industrial, marine, and electric utilities.

Product Information

Standard Information

• Brand: HUBBELL
• MPN: YAV8CL4

Technical Specifications

• Material: Copper
• Conductor Size: 8 AWG
• Stud Size: 1/2 inches
• Tongue Style: Ring/Straight
• Type: 1-Hole Heavy Duty Non-Insulated
• Overall Length: 1.52 inches
• Barrel Style: Short
• Standard & Approvals: UL467, CSA Certified, SAE-AS7928, ROHS Compliant
