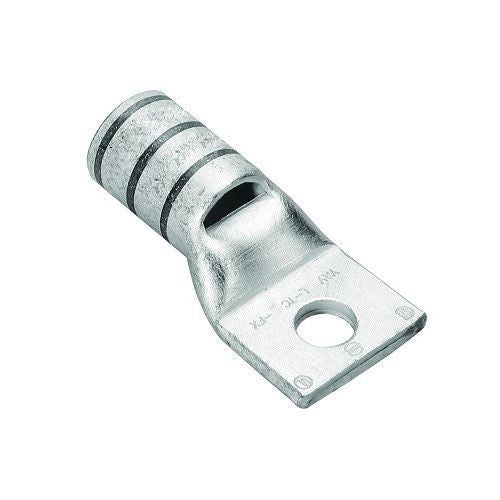

Hubbell YAV8CL2 Uninsulated Ring Terminal for 8 AWG

Product Description

The HUBBELL YAV8CL2 is an uninsulated ring terminal designed for use with eight AWG stranded copper conductors. This product is made from electrolytic copper tubing and has a tin plating to resist corrosion. It features a one-hole ring tongue with a five-sixteenth inch stud hole and a short barrel. An inspection window allows for checking proper conductor insertion, ensuring reliable electrical performance in various applications.

• Constructed from electrolytic copper tubing.
• Features a ring tongue with a single hole and includes an inspection window.
• Corrosion-resistant electro-tin plating.

Product Highlights

This terminal is suitable for dependable electrical connections in demanding environments.

Product Information

Standard Information

• Brand: HUBBELL
• MPN: YAV8CL2

Technical Specifications

• Series: YAV-L
• Conductor Size: 8 AWG
• Stud Size: 5/16 in
• Tongue Type: Ring Straight
• Barrel Type: Short
• Material: Electro-Tin Plated Copper
• Overall Length: 1.29 in
• Die Code: 38
• Standards & Approvals: ARRA Compliant, BAA Compliant, CSA Certified, RoHS Compliant, SAE-AS7928, UL 467 Military Specified Class 1 MS20659-108, Buy American Act Compliant
• UL Listed: Yes
• Barrel Size: 0.41 in L
• Material Composition: DLP Copper
• Sub Brand: HYLUG
• Trade Name: HYLUG™
• Dimension - Pad Width: 0.57 in
• Dimension - Stud Size: 5/16
• Dimension - Z: 0.34 in
• Conductor - Copper Str Aircraft Size: AN 8
• Industry Standard(s): UL467; Military Specified (Mil-Spec)
• Standards - RoHS Compliance Status: CM
• Tongue Size: 0.57 in W x 0.05 in THK
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Ring
