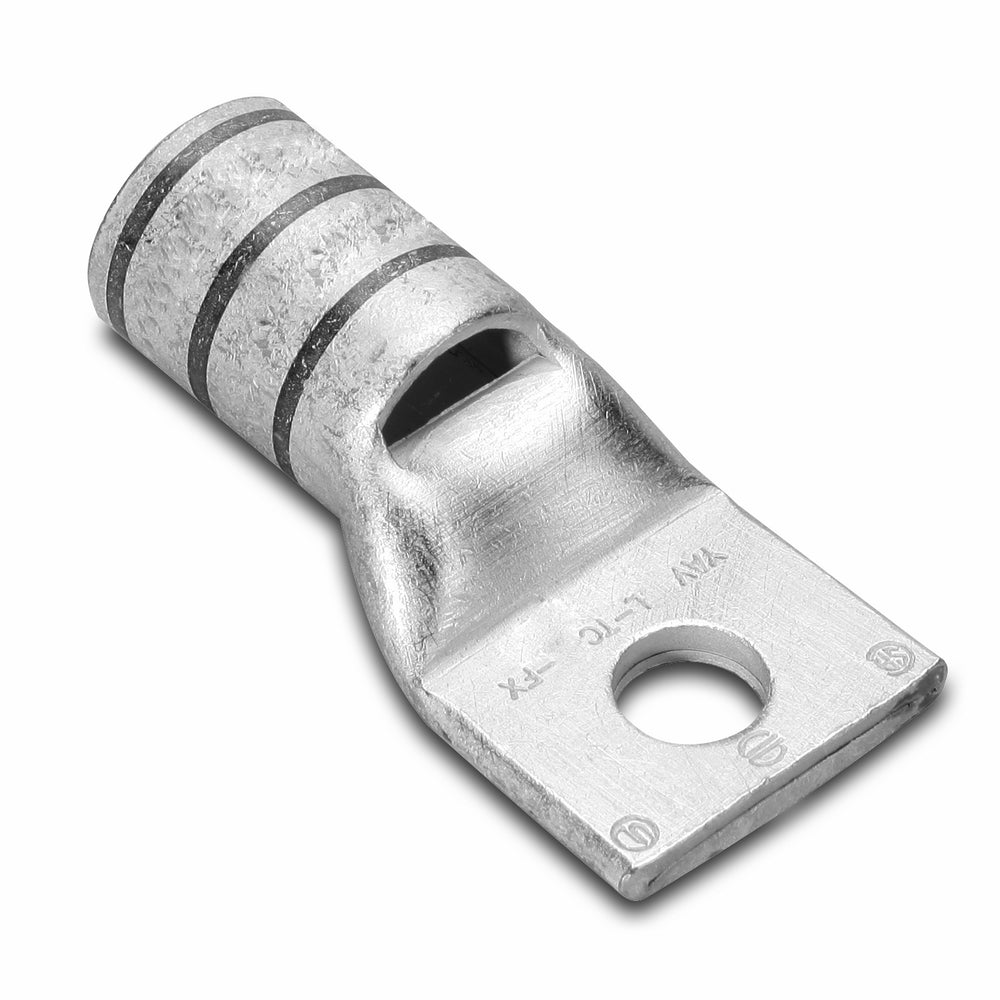

Hubbell YAV8CL1 Copper Compression Lug, Ring Tongue, 1 Hole, AN-8 Flex, 1/4 Stud

Product Description

The Hubbell YAV8CL1 is a copper compression lug designed for reliable electrical connections. It features a ring tongue with one hole and an inspection hole, suitable for AN-8 flex conductors and a quarter-inch stud. The lug has a short barrel and is electro-tin plated for enhanced corrosion resistance.

• Designed for AN aircraft cable and flexible conductors.
• Manufactured from seamless electrolytic copper for optimal conductivity.
• Meets SAE-AS7928 and AS20659 standards for reliability.

Product Highlights

This lug is essential for industries requiring dependable connections, including electric utilities, hospitals, and marine applications.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Sub Brand: Burndy

Technical Specifications

• Type: Ring Tongue
• Cable Size: 8 AWG Flex
• Conductor Size: 8 AWG
• Connection Type: Ring Terminal
• Material: Copper
• Plated?: Yes
• Plating Type: Tin - Electro Plated
• Stud Size: 0.25 in

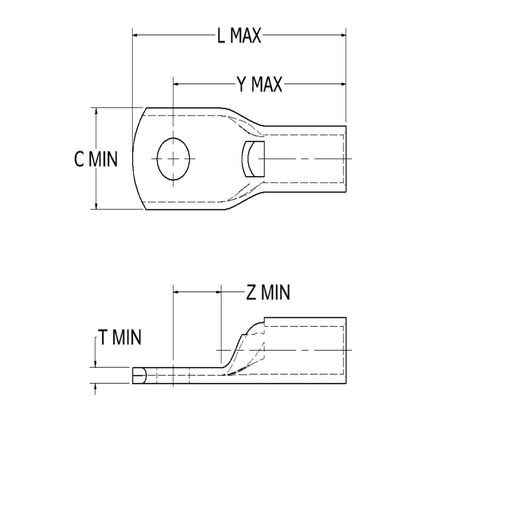

• Dimensions: 0.46 in width, 0.26 in height, 1.22 in length
