Hubbell YAV6CLBOX Burndy CU Compression Terminal Code Conductor 600V-35kV 1 Hole 1/4 Stud

Product Description

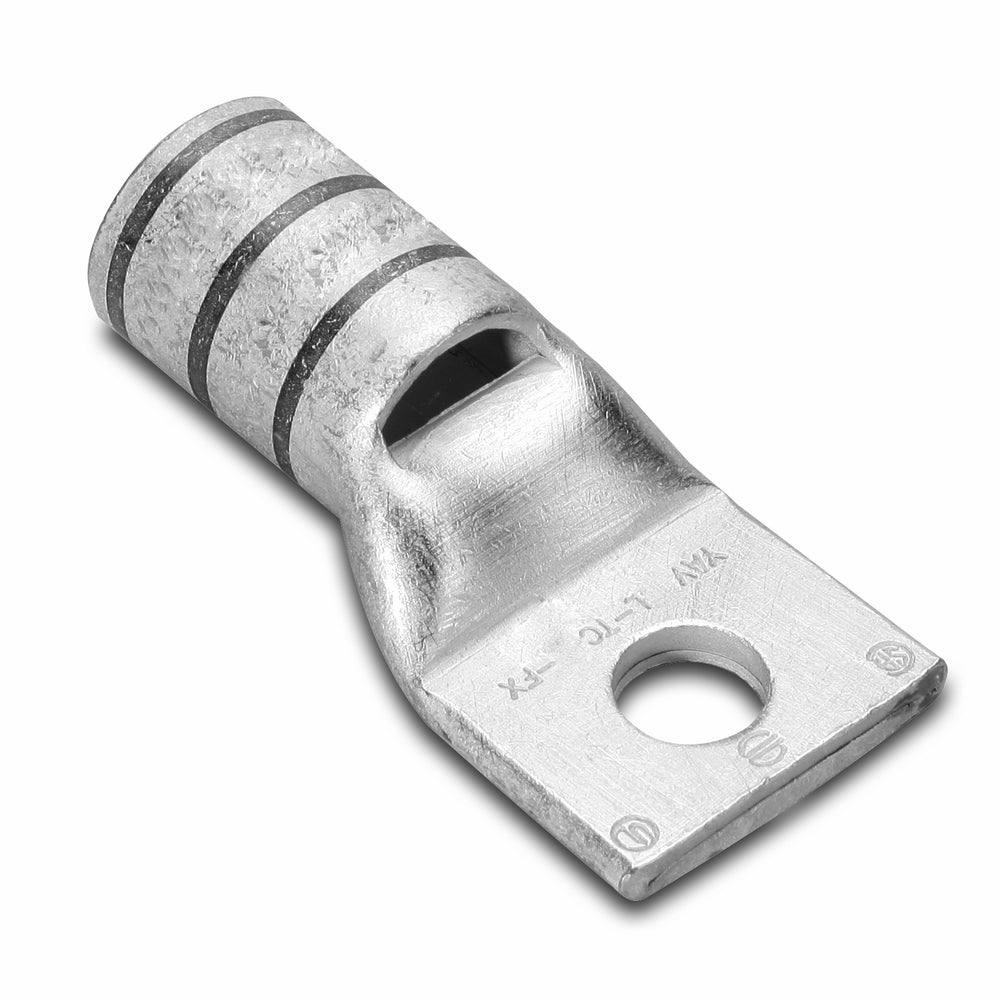

The Hubbell YAV6CLBOX is a compression terminal designed for connecting wires securely. It is a CU compression terminal with a bevelled entry, made specifically for sizes #6 AWG, and rated for 600V to 35kV. The terminal features a one-hole design with an inspection window, making it suitable for various applications.

• Made of electrolytic copper for high conductivity.
• Compatible with Type AN aircraft cable and flexible conductors.
• Design includes an internally bevelled barrel for easy cable entry.

Product Highlights

This terminal is designed for reliable electrical performance in demanding environments such as electric utilities, hospitals, and marine applications.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Sub Brand: Burndy

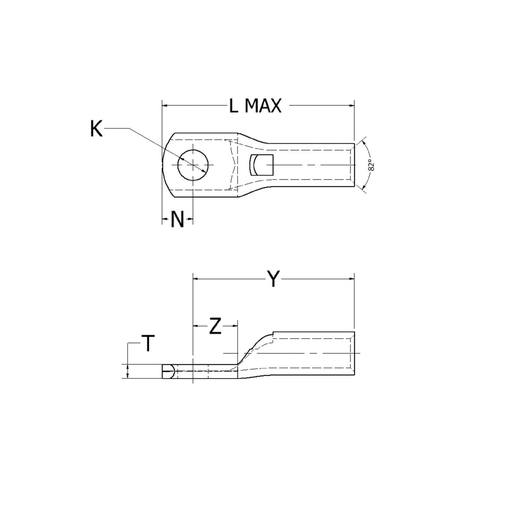

Technical Specifications

• Material: Copper
• Stud Size: 0.25 in
• Hole Size: 0.27 in
• Overall Length: 1.28 in
• Width: 0.286 in
• Height: 0.38 in
• Conductor Size: 6 AWG
• Connection Type: Ring Terminal
• Plating Type: Tin - Electro Plated
• Buy American Compliant: Y
• Country of Origin: USA
• Applications: For use on Type AN aircraft cable and other demanding environments.
