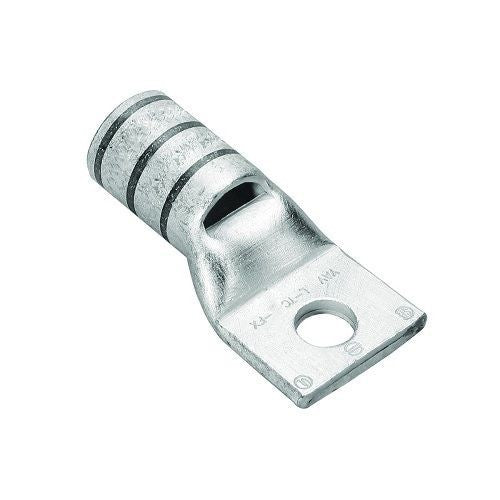

HUBBELL YAV6CL1 Uninsulated Ring Terminal 6-5 AWG #8-#10 Stud Size

Product Description

The HUBBELL YAV6CL1 is a reliable uninsulated ring terminal designed for use with six to five AWG stranded copper conductors, including AN-5 Flex and AN-6 Flex applications. Made from seamless electrolytic copper tubing, it is built for durability and long-term performance. The terminal features a double-thick tongue and an inspection hole for effective conductor verification. It is electro-tin plated to enhance corrosion resistance, making it ideal for environments where electrical connections may be exposed to moisture or other harsh conditions.

• Compatible with six to five AWG stranded copper conductors
• Features an inspection hole for accurate conductor placement
• Electro-tin plated to improve corrosion resistance

Product Highlights

The HUBBELL YAV6CL1 ensures dependable electrical performance while resisting vibration.

Product Information

Standard Information

• Brand: HUBBELL
• Catalog ID: YAV6CL1

Technical Specifications

• Conductor Size: 6 to 5 AWG
• Conductor Type: Stranded Copper
• Stud Size: #8 to #10
• Material: Electro-Tin Plated Copper
• Barrel Type: Short
• Barrel Size: 0.47 inches in length
• Overall Length: 1.31 inches
• Tongue Type: Ring Straight
• Tongue Size: 0.46 inches wide x 0.07 inches thick
• Voltage Rating: 600 VAC
• Die Code: 39
• Standard & Approvals: ARRA Compliant, CSA Certified, RoHS Compliant, SAE-AS7928, UL 467 Military Specified Class 1 MS20659-130, Buy American Act Compliant
