Product Description

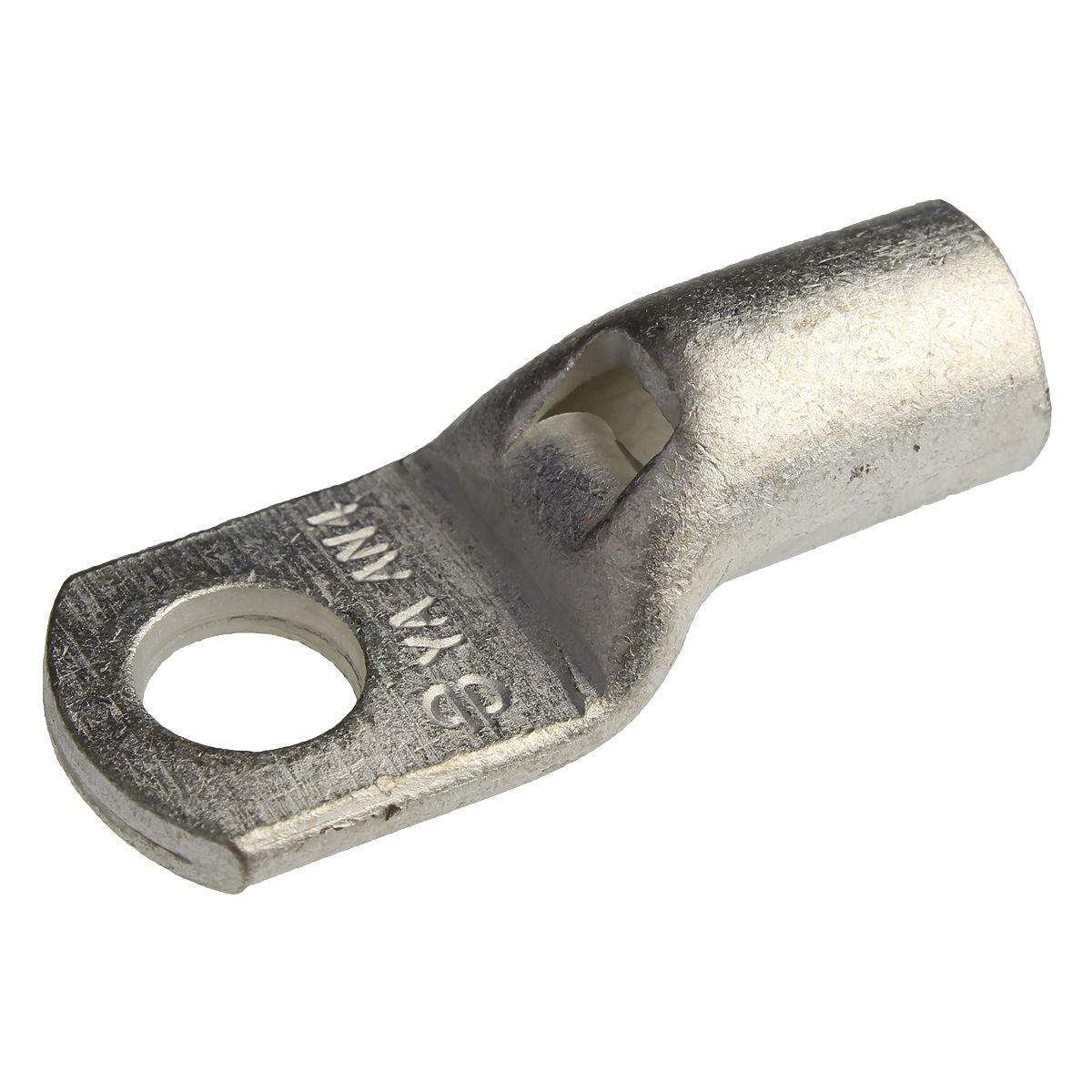

The Hubbell YAV4CL is a BURNDY HYLUG Compression Lug designed for reliable electrical connections. This compression lug features a one-hole heavy-duty uninsulated design and is suitable for 4 AWG stranded copper conductors. It operates at a voltage rating of six hundred VAC and is ideal for various applications including industrial, marine, and electrical utilities.
- Uninsulated compression terminal for demanding applications
- Seamless tubing design for enhanced reliability
- Compatible with multiple crimp installation tools
Product Highlights
The YAV4CL provides dependable electrical performance, making it suitable for wiring that experiences vibrations or requires high reliability.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78181080719
Technical Specifications
-
Application: Used on Type AN aircraft cable, extra flexible conductors, commercial conductors, and equipment subject to vibration
-
Barrel Size: 0.47 inches
-
Conductor Size: 4 AWG
-
Conductor Type: Stranded Copper
-
Die Code: 40
-
Material: Electro-Tin Plated Copper
-
Overall Length: 1.37 inches
-
Tongue Size: 0.55 inches W x 0.09 inches THK
-
Tongue Type: Ring Straight
-
Stud Size: 1/4 inch
-
Voltage Rating: 600 VAC
-
Standards/Approvals: ARRA Compliant, BAA Compliant, CSA Certified, RoHS Compliant, SAE-AS7928, UL 467 Military Specified Class 1 MS20659-111, Buy American Act Compliant
