Product Description

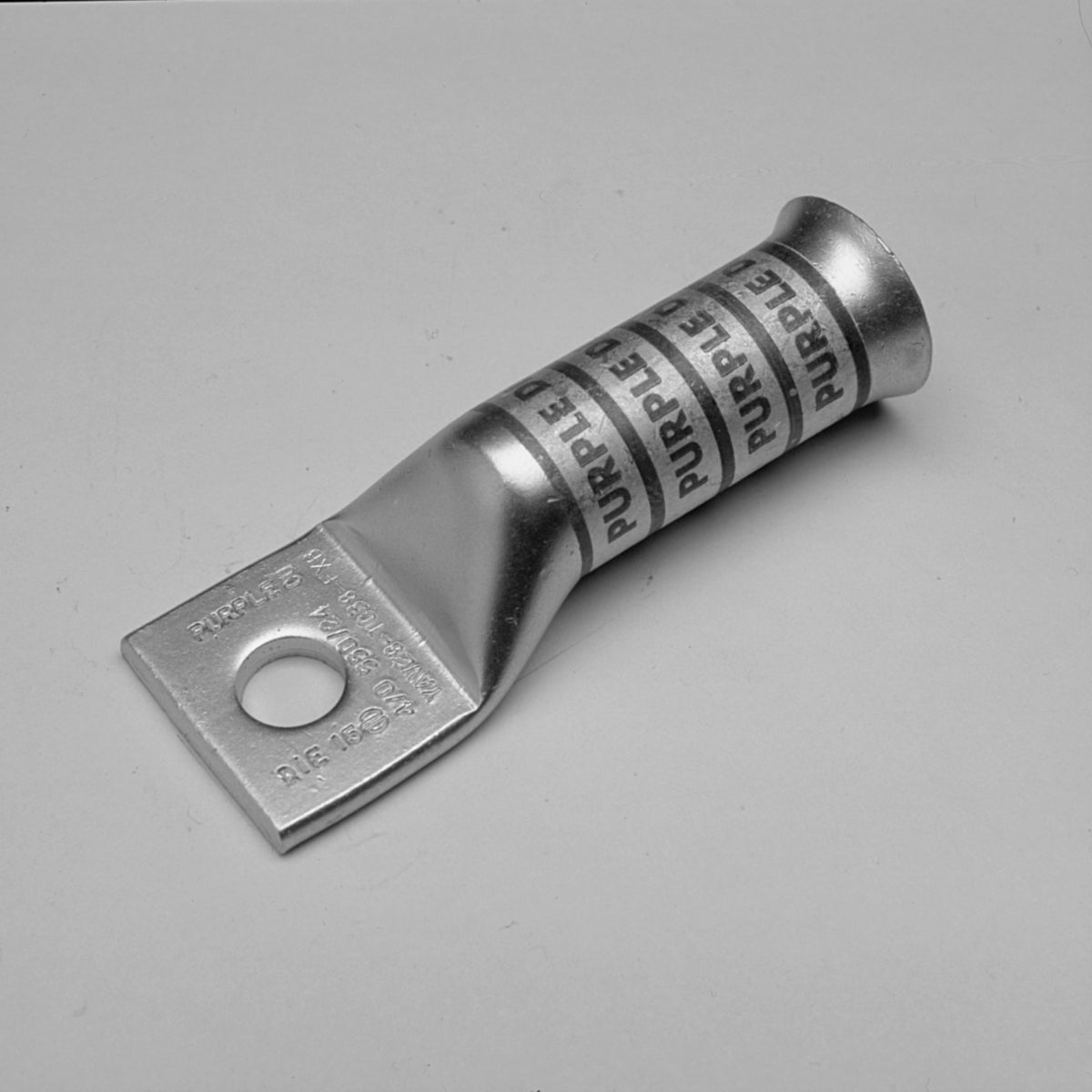

The Hubbell YAV28-TC12-FXB is a reliable compression lug designed for effective electrical connections. This compression lug features a one-hole design made for stranded copper conductors of four-aught American Wire Gauge. It is compatible with a half-inch stud and supports voltage ratings from 600 VAC to thirty-five kilovolts.
- 1-Hole compression lug for secured connections.
- Tin plated for improved conductivity and corrosion resistance.
- Meets UL and CSA standards for safety and reliability.
Product Highlights
This compression lug is ideal for heavy-duty industrial, utility, commercial, and telecommunications applications. Its design allows for easy installation and long-term reliability in demanding environments.
Product Information
Standard Information
-
Application: For flex conductor
-
Stud Size: 1/2 in
Technical Specifications
-
Conductor Size: 4/0 AWG
-
Material: Tin Plated Copper
-
Overall Length: 3.63 in
-
Tongue Size: 1.14 in W x 0.14 in THK
-
Voltage Rating: 600 VAC to 35 kV
-
Temperature Rating: 90 deg C
-
Series: YAV-TC-FXB
-
Die Code: 15
