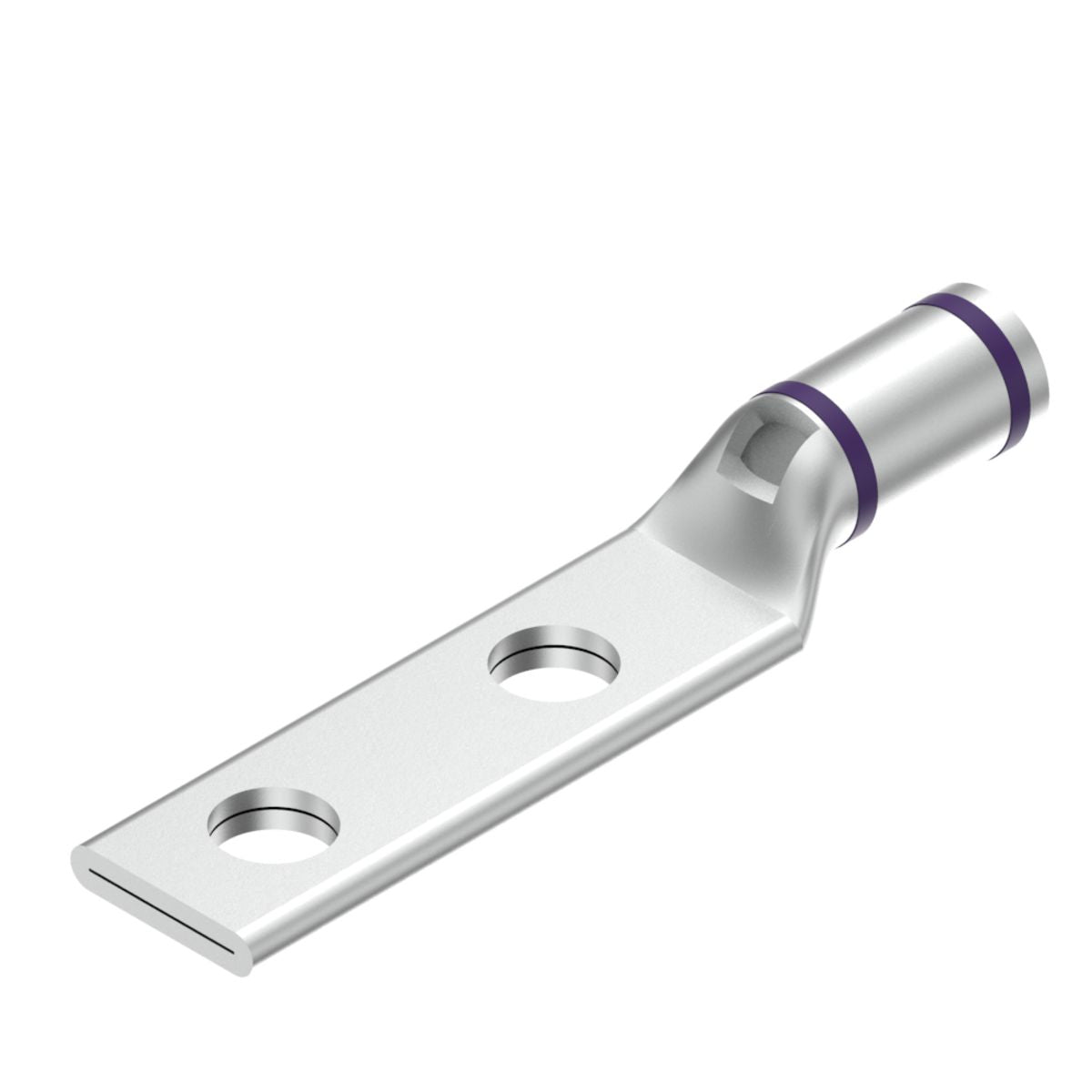

Hubbell YAV28-L2TC38-FX BUR HYLUG-4/0 FLEX-2 3/8

Product Description

The Hubbell YAV28-L2TC38-FX is a compression lug designed for flexible and stranded copper conductors. This 2-hole compression lug features a significant ampacity suited for a range of applications. It is ideal for use in industrial, commercial, and utility electrical installations where reliable connections are crucial.

• Compatible with 4/0 AWG flexible/stranded copper conductors
• Rated for voltages up to 35 kV
• Tin plated for improved conductivity and corrosion resistance

Product Highlights

The YAV28-L2TC38-FX is engineered for ease of installation and durable performance in demanding environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181002187

Technical Specifications

• Application: For flex conductor
• Barrel Size: 0.77 inches OD x 1.03 inches L
• Color: Purple
• Conductor Size: 4/0 AWG
• Conductor Type: Flexible/Stranded Copper
• Die Code: 15
• Material: Copper
• Overall Length: 3.43 inches
• Series: YAV-L-2TC-FX
• Stud Size: 3/8 inches
• Temperature Rating: 90 degrees C
• Tongue Size: 1.14 inches W x 0.15 inches THK
• Tongue Type: Standard/Straight
• Type: 2-Hole
• Voltage Rating: 600 VAC to 35 kV
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, CSA Certified, UL 467A/467B
