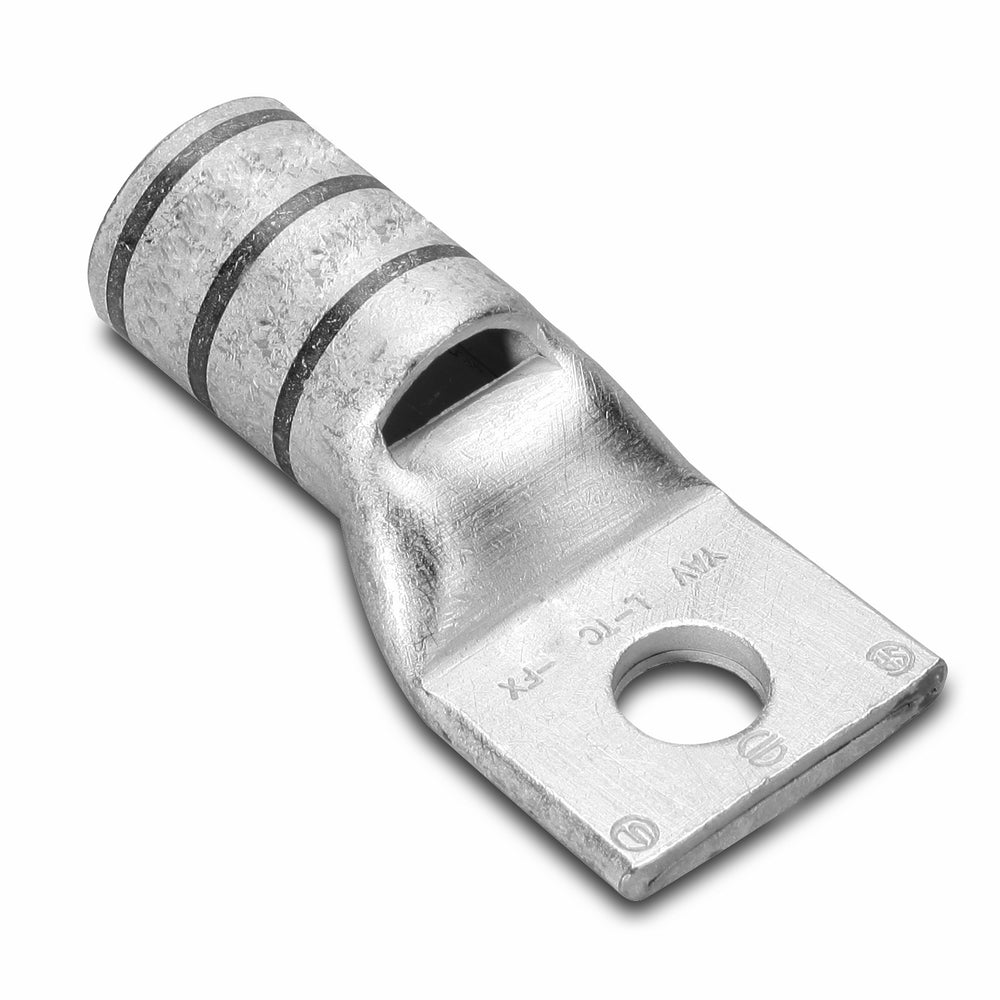

Hubbell YAV27L1BOX Copper Tubing Ring Terminal 3/0 AWG Flex 1/2 IN Stud

Product Description

The Hubbell YAV27L1BOX is a copper tubing ring terminal designed for use with three-aught American Wire Gauge (AWG) flexible conductors. This terminal features a half-inch stud size and measures two point four five inches in length and one point zero three inches in width. The terminal is electro-tin plated, providing enhanced conductivity and corrosion resistance.

• For three-aught AWG flexible conductors
• Electro-tin plated for corrosion resistance
• Suitable for various applications including industrial and marine use

Product Highlights

This copper ring terminal provides reliable connections for electrical circuits in environments prone to vibration. It is suitable for a range of uses from aircraft cabling to commercial and industrial applications.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Sub Brand: Burndy

Technical Specifications

• Applications: For use on Type AN aircraft cable, extra flexible conductors, commercial conductors, industrials, hospitals, electric utilities, marine, and computers.
• Cable Size: 3/0 AWG Flex
• Conductor Size: 3/0 AWG
• Connection Type: Terminal
• Material: Copper
• Plated: Yes
• Plating Type: Tin
• Strip Length: 13/16 in
• Stud Size: 1/2 in
• Tongue Angle: Straight
• Tongue Type: Ring
• Type: Ring Tongue
