Hubbell YAV25L3 BURNDY 1/0 HVYDTY RING 1/2 STUD, 2.089 IN L

Product Description

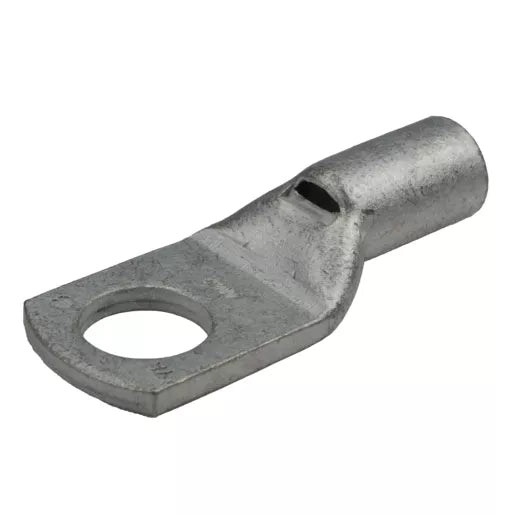

The Hubbell YAV25L3 is a BURNDY compression lug designed for reliable electrical connections. This uninsulated compression terminal is ideal for 1/0 AWG stranded copper conductors. It features a one-hole design and is suitable for applications that require dependable performance under vibration and mechanical stress.

• Manufactured from high conductivity electrolytic copper.
• Suitable for type AN aircraft cable and flexible conductors.
• Meets various compliance standards including UL and RoHS.

Product Highlights

The YAV25L3 compression lug is engineered for high reliability and conductivity, making it suitable for demanding electrical applications.

Product Information

Standard Information

• Application: Used on Type AN aircraft cable, extra flexible conductors, and other commercial conductors.
• Conductor Size: 1/0 AWG.

Technical Specifications

• Conductor Type: Stranded Copper.
• Overall Length: 2.089 in.
• Die Code: 43.
• Stud Size: 1/2 in.
• Tongue Size: 0.88 in W.
• Tongue Type: Ring Straight.
• Material: Electro-Tin Plated Copper.
• Standards: ARRA Compliant, CSA Certified, RoHS Compliant.
