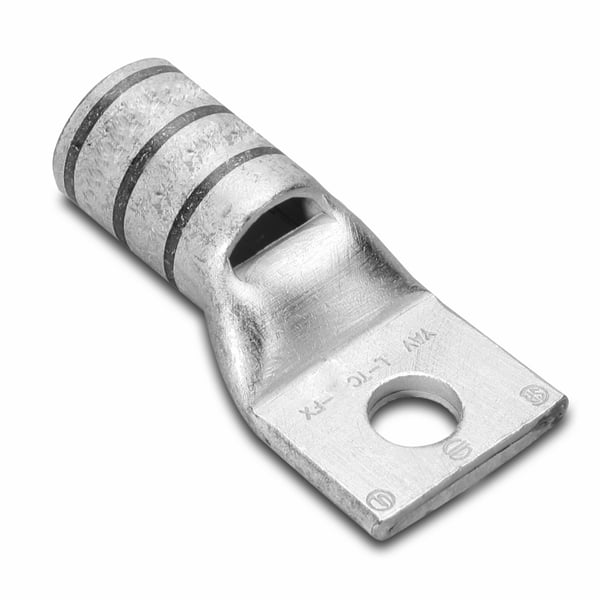

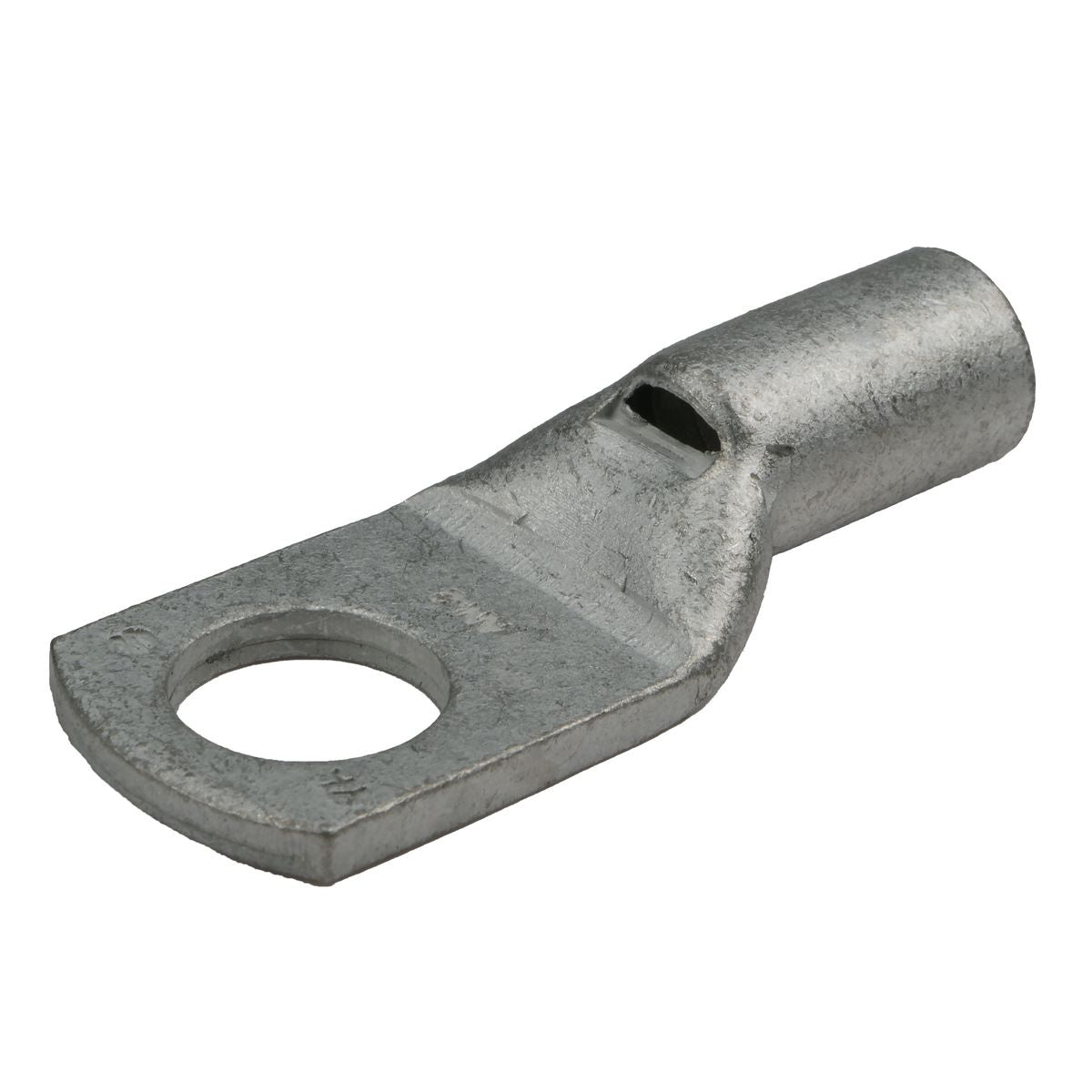

HUBBELL YAV25L2 Uninsulated Ring Terminal 1/0 AWG 5/16 Stud 1-Hole

Product Description

The HUBBELL YAV25L2 is an uninsulated ring terminal made for use with one aught American Wire Gauge stranded copper conductors. This terminal is crafted from electrolytic copper tubing and includes a seamless barrel design with a double-thick tongue, ensuring durability. It has a 5/16 inch stud hole and features an inspection window to check for proper conductor insertion. With electro-tin plating, it offers corrosion resistance suitable for reliable electrical performance.

• Manufactured from electrolytic copper tubing
• Seamless barrel design with double thick tongue
• Electro-tin plated for corrosion resistance

Product Highlights

This ring terminal is ideal for industrial and marine applications, providing secure connections and lasting durability.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer: HUBBELL

Technical Specifications

• MPN: YAV25L2
• Conductor Size: 1/0 AWG
• Stud Size: 5/16 inch
• Material: Copper
• Tongue Style: Straight/Ring
• Type: 1-Hole Heavy Duty Non-Insulated
• Application: For industrials, hospitals, electric utilities, shipboard and marine, computers, steel mills and mining equipment
• Overall Length: 2.03 inches
• Tongue Size: 0.83 inches wide
• Standards and Approvals: UL Listed, CSA Certified, SAE-AS7928, RoHS Compliant, MS20659-151 Listed
• Barrel Style: Short
