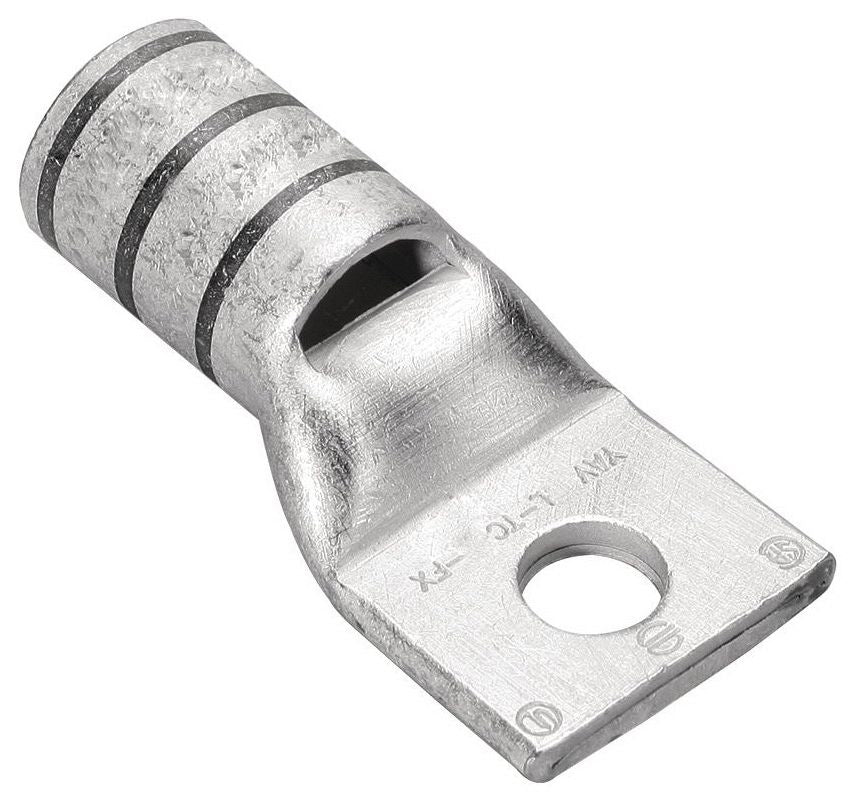

Hubbell YAV1CL3 YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Hole, 1 AWG Stranded Copper Conductor, 1/2 in Stud

Product Description

The Hubbell YAV1CL3 is a heavy-duty uninsulated compression lug designed for reliable electrical connections. It is compatible with 1 AWG stranded copper conductors and features a 1/2 inch stud. This product is essential in industrial and electric utility applications where dependable performance is critical.

• Manufactured from electro-tin plated copper
• Features a 1.97 inch overall length and a ring straight tongue
• Designed for easy crimping with various hydraulic tools

Product Highlights

The YAV1CL3 provides high conductivity and enhanced reliability in demanding environments. Its robust design withstands vibration and environmental conditions, ensuring a stable connection.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YAV1CL3

Technical Specifications

• Application: Type AN aircraft cable, commercial conductors
• Conductor Size: 1 AWG
• Conductor Type: Stranded Copper
• Die Code: 42
• Material: Electro-Tin Plated Copper
• Overall Length: 1.97 inches
• Stud Size: 1/2 inch
• Tongue Size: 0.86 inches wide
• Tongue Type: Ring Straight
• Standards/Approvals: ARRA Compliant, BAA Compliant, CSA Certified, RoHS Compliant
