Hubbell YAV1CL2BOX Burndy YAV1CL2BOX Uninsulated Ring Terminal For 1 AWG

Product Description

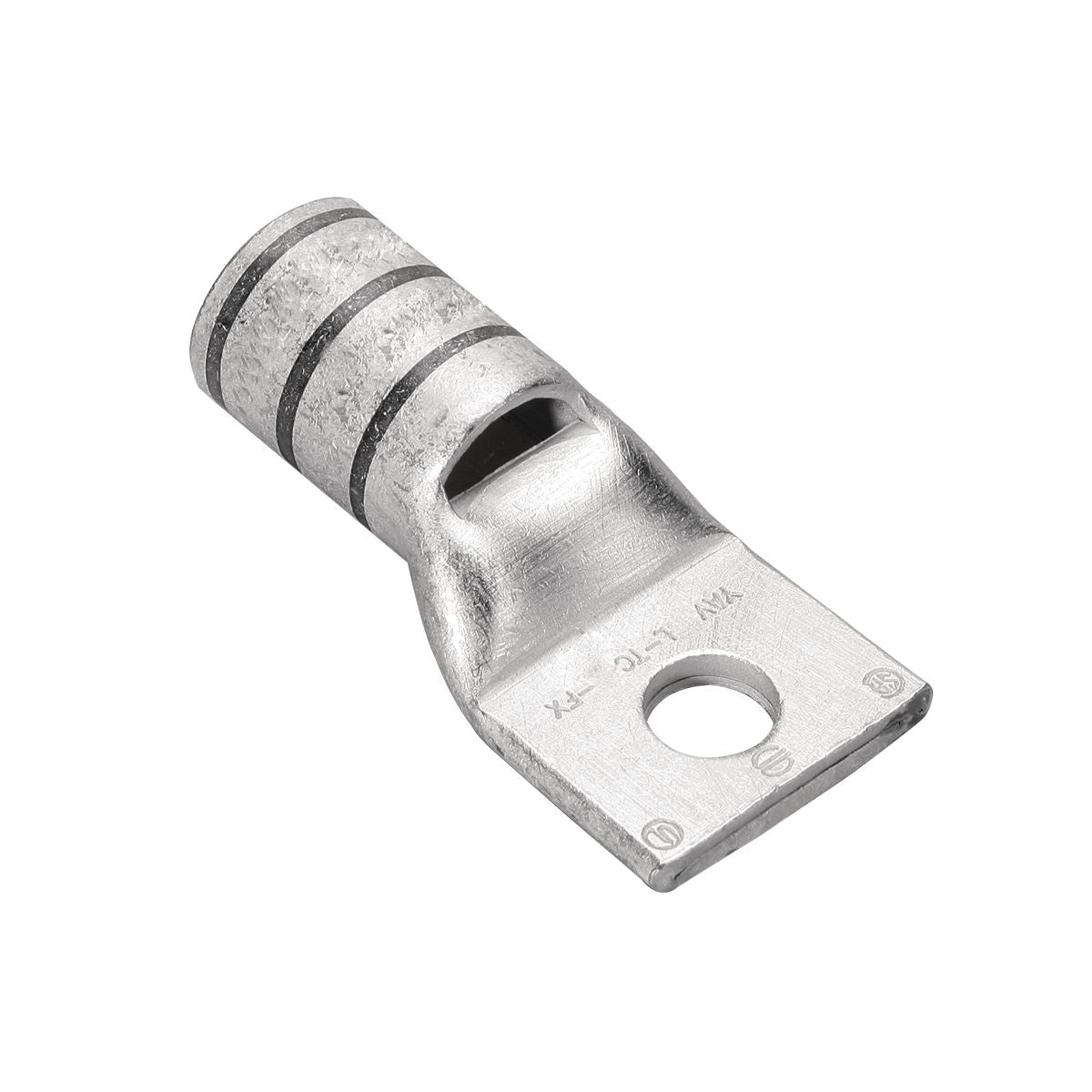

The Hubbell YAV1CL2BOX is a reliable uninsulated ring terminal designed for one AWG wire. This terminal provides a secure connection and is suitable for both solid and stranded conductors. The terminal features a chamfered barrel style for easy cable entry and includes an inspection window for confirming proper conductor insertion.

• Manufactured from seamless electrolytic copper for maximum conductivity.
• Internally bevelled barrel for flexible conductor use.
• Electro-tin plated to enhance corrosion resistance.

Product Highlights

Designed for high-quality electrical connections, this terminal ensures low resistance and excellent ductility during crimping. Ideal for a variety of applications in electrical wiring and connections.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Sub Brand: Burndy

Technical Specifications

• Connection Type: Ring Terminal
• Material: Copper
• Plated?: Yes
• Plating Type: Tin
• Hole Size: 0.33 in
• Length: 1.84 inches
• Overall Length: 1.84 in
• Country of Origin: USA
