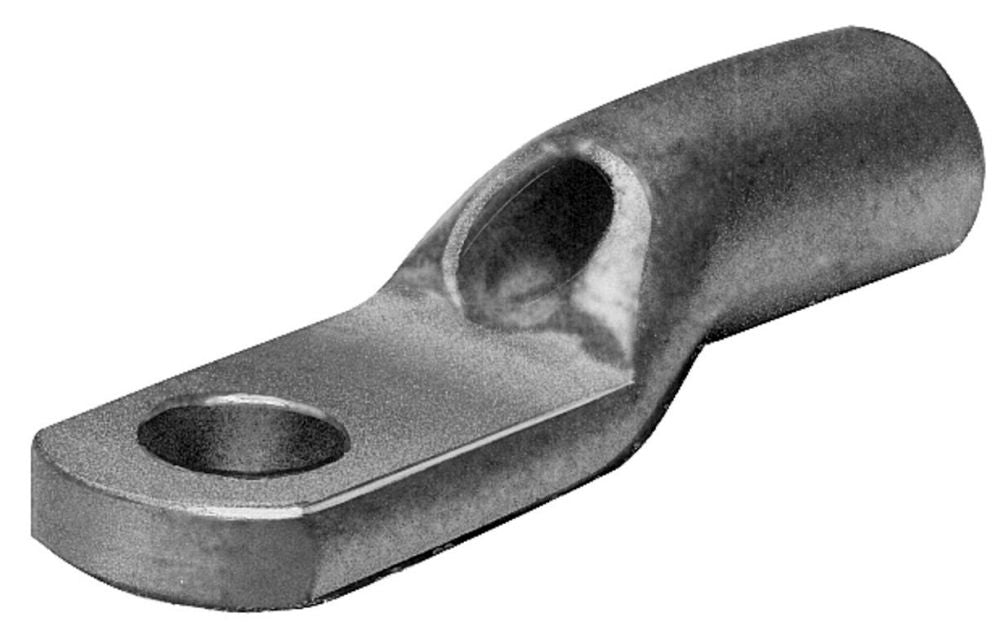

Hubbell YAV10L36BOX YAV 1-Hole Heavy Duty Uninsulated Compression Lug 12 to 10 AWG 600 VAC

Product Description

The Hubbell YAV10L36BOX is a heavy-duty uninsulated compression lug designed for reliable electrical connections. It supports solid and stranded copper conductors ranging from twelve to ten AWG and accommodates #8 to #10 studs. The product features a ring straight tongue and an overall length of zero point eighty-six inches.

• Internally beveled barrel for easy cable entry.
• Manufactured from seamless pure electrolytic copper tubing.
• Temperature rated at six hundred fifty degrees Fahrenheit.

Product Highlights

This compression lug is designed for high conductivity and low resistance, ensuring effective electrical performance even in challenging environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181054155

Technical Specifications

• Application: For use on copper commercial (code) cable, Type AN aircraft cable, and extra flexible conductors.
• Barrel Size: 0.4 in L
• Conductor Size: 12 to 10 AWG
• Conductor Type: Solid/Stranded Copper
• Material: Electro-Tin Plated Copper
• Overall Length: 0.86 in
• Series: YAV
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 467, CSA Certified
• Stud Size: #8 to #10
• Temperature Rating: 650 deg F
• Tongue Size: 0.29 in W x 0.07 in THK
• Tongue Type: Ring Straight
• Type: 1-Hole Heavy Duty Uninsulated
• Voltage Rating: 600 VAC
