Product Description

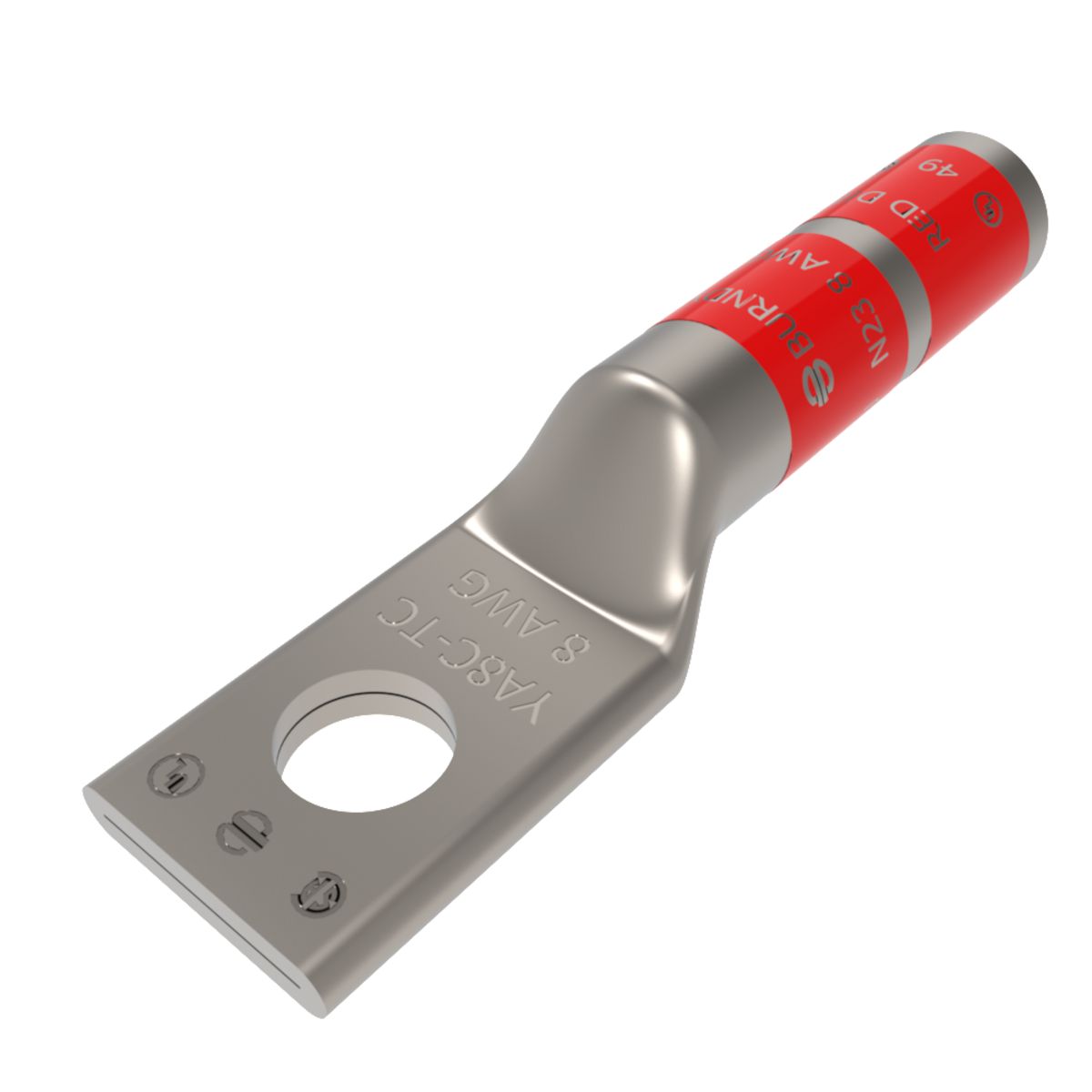

The Hubbell YA8CTC14 is a BURNDY HYLUG compression lug designed for electrical connections. This product features a one-hole uninsulated design perfect for stranded copper conductors. It supports conductors of eight AWG and is compatible with a quarter-inch stud size.
- Suitable for use with hydraulic and mechanical tools.
- Rated for voltages from six hundred VAC up to thirty-five kV.
- Tin-plated copper provides corrosion resistance.
Product Highlights
This lug is ideal for various electrical applications, ensuring reliable connections. BURNDY compression connectors offer higher conductivity and withstand environmental challenges.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: YA8CTC14
Technical Specifications
-
Application: For code conductor
-
Barrel Size: 0.81 in L
-
Conductor Size: 8 AWG
-
Conductor Type: Stranded Copper
-
Die Code: 49
-
Material: Tin Plated Copper
-
Overall Length: 1.69 in
-
Series: YA-TC
-
Stud Size: 1/4 in
-
Temperature Rating: 90 deg C
-
Tongue Size: 0.44 in W x 0.08 in THK
-
Tongue Type: Standard/Straight
-
Voltage Rating: 600 VAC to 35 kV
