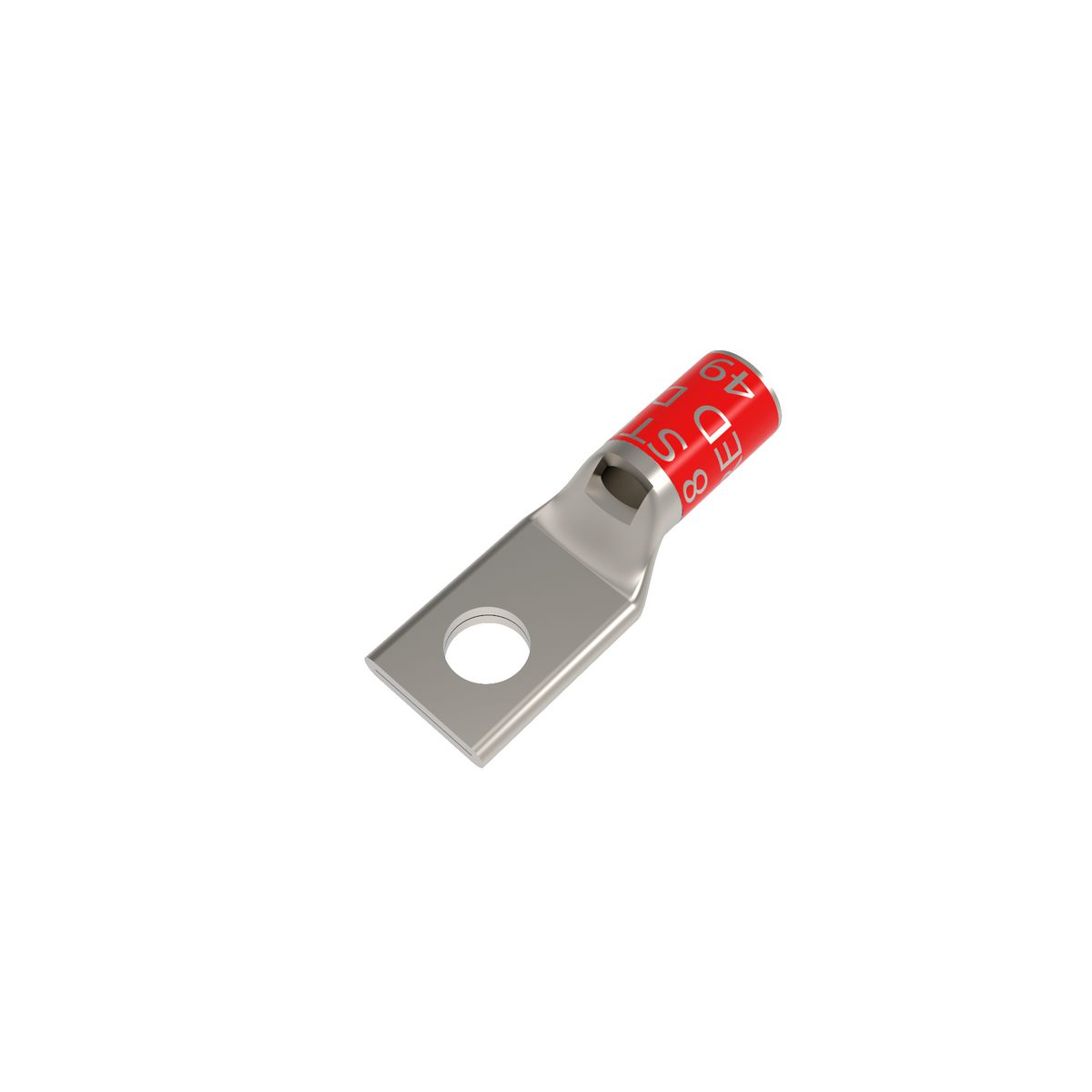

Hubbell YA8CL2BOX BURNDY 8 STR CU 1-HOLE 5/16

Product Description

The Hubbell YA8CL2BOX Compression Lug is designed for electrical connections with a one-hole design. This product is suitable for flexible, solid, and stranded copper conductors ranging from eight to six American Wire Gauge (AWG). The lug can handle voltage ratings from six hundred volts alternating current (VAC) to thirty-five kilovolts (kV) and is ideal for various applications where reliable connections are needed.

• Compatible with hydraulic and mechanical installation tools.
• Electro tin plated for corrosion resistance.
• Standard tongue design for easy application.

Product Highlights

This compression lug provides a high-quality, durable connection. Its copper construction allows for excellent conductivity and performance in various environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• Type: 1-Hole

Technical Specifications

• Application: For code conductor
• Material: Copper
• Conductor Size: 8 to 6 AWG
• Die Code: 49
• Voltage Rating: 600 VAC to 35 kV
• Stud Size: 5/16 in
• Overall Length: 1.38 in
• Tongue Size: 0.52 in W x 0.06 in THK
• Temperature Rating: 90 deg C
• Barrel Size: 0.44 in L
