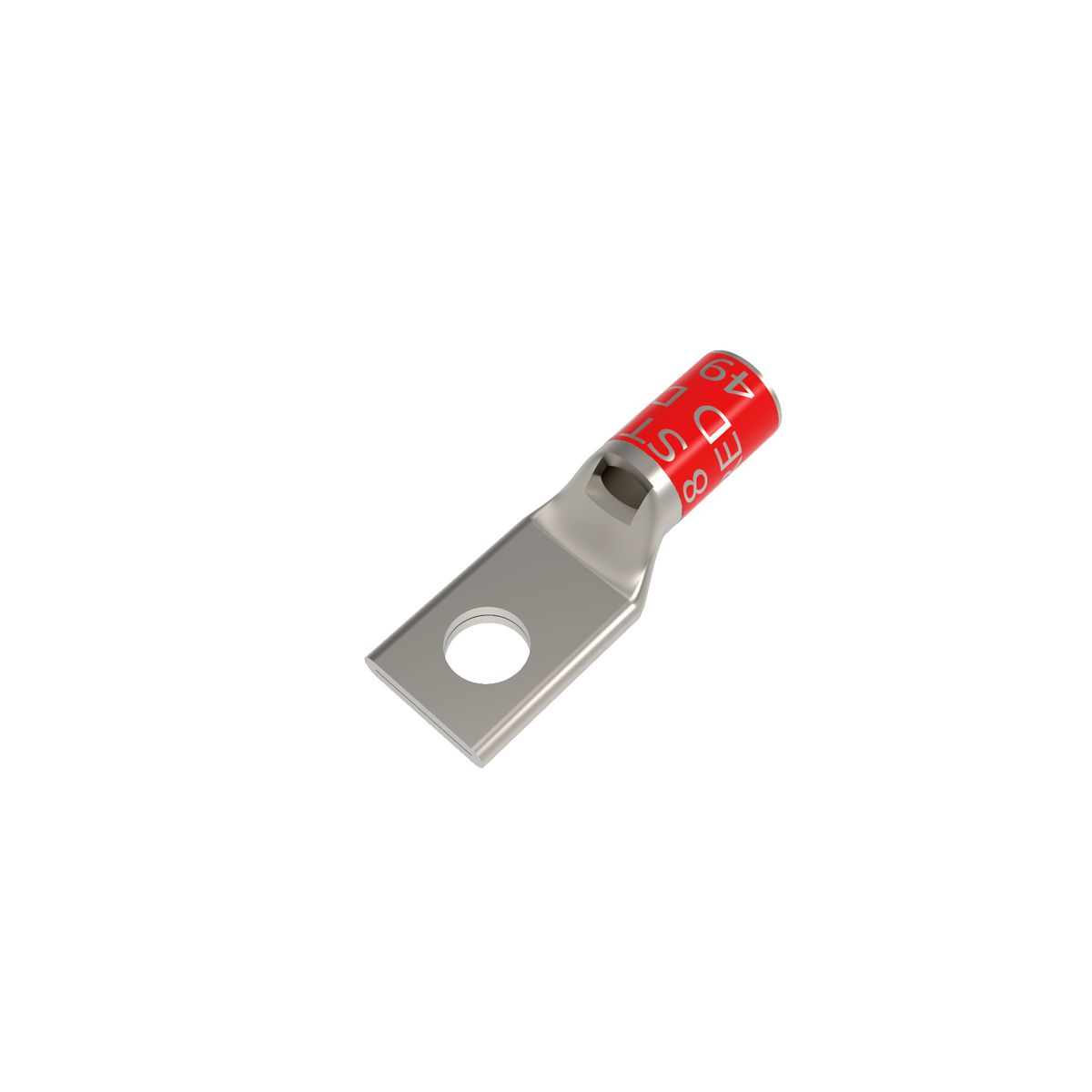

Hubbell YA8CL1BOX YA-L 1-Hole Compression Lug With Inspection Window 8 AWG/6 SOL 1/4 in Stud

Product Description

The Hubbell YA8CL1BOX is a one-hole compression lug designed for connecting copper conductors. This product is suitable for use with flexible, solid, and stranded copper conductors sized 8 AWG. The lug is designed with a straight tongue for secure connections. It has a tin-plated finish for corrosion resistance.

• Compatible with 8 AWG stranded and 6 AWG solid conductors.
• Rated for voltages up to thirty-five kilovolts.
• Inspection window allows for easy verification of proper wire insertion.

Product Highlights

The compression lug operates under high conductivity standards and withstands various electrical conditions. It features a chamfered barrel design for easy wire insertion, ensuring reliable electrical performance.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Copper

Technical Specifications

• MPN: YA8CL1BOX
• Conductor Size: 8 AWG
• Overall Length: 1.26 in
• Stud Size: 1/4 in
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 deg C
• Die Code: 49
• Barrel Size: 0.44 in
• Tongue Size: 0.44 in W x 0.08 in THK
• Tongue Type: Standard/Straight
