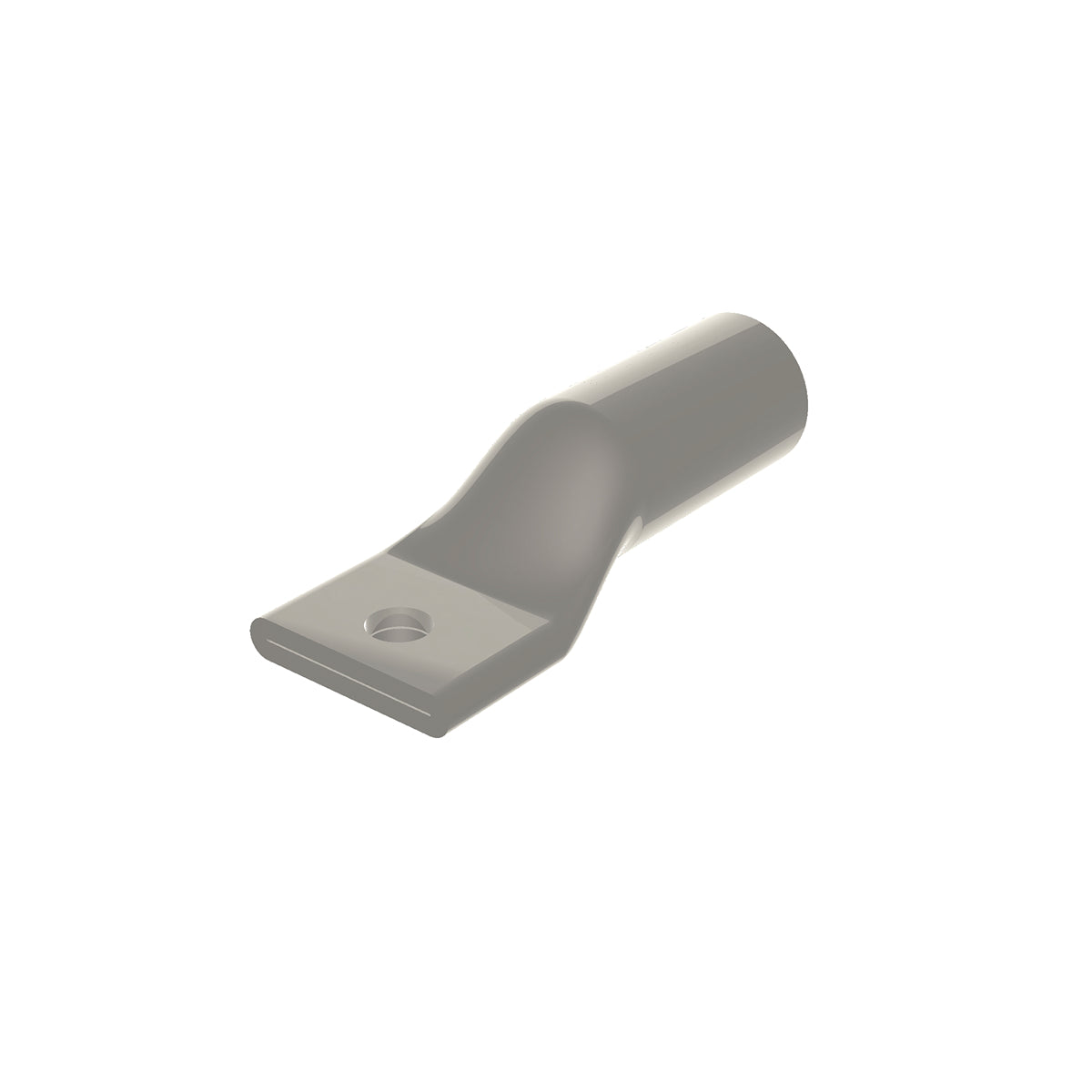

Hubbell YA8CA3 BUR AL. COMP. LUG 8AWG STR W/ 1/4 STUD HOLE ALCU

Product Description

The Hubbell YA8CA3 Compression Lug is a dual-rated uninsulated connector designed for aluminum and copper conductors. It accommodates an eight AWG stranded conductor with a one-quarter inch stud hole. The lug is made from electroplated tin aluminum, offering durability and corrosion resistance. It is suitable for high voltage applications, operating effectively from six hundred volts up to thirty-five kilovolts.

• Designed for 8 AWG stranded copper and aluminum conductors
• Manufactured with high conductivity wrought aluminum
• Meets dual rating standards for heavy-duty applications

Product Highlights

This compression lug offers reliable electrical connections and is ideal for a range of industrial applications. It includes features such as an internally beveled barrel for easy cable insertion and is factory prefilled with PENETROX, an oxide inhibiting compound.

Product Information

Standard Information

• MPN: YA8CA3
• Manufacturer: Hubbell

Technical Specifications

• Application: For aluminum and copper conductors
• Barrel Size: 0.62 in L
• Color: Blue
• Conductor Size: 8 AWG
• Die Code: 374
• Material: Electro Plated Tin Aluminum
• Overall Length: 1.65 in
• Stud Size: 1/4 in
• Temperature Rating: 90 deg C
• Voltage Rating: 600 VAC to 35 kV
• Tongue Size: 0.75 in L x 0.53 in W x 0.09 in THK
