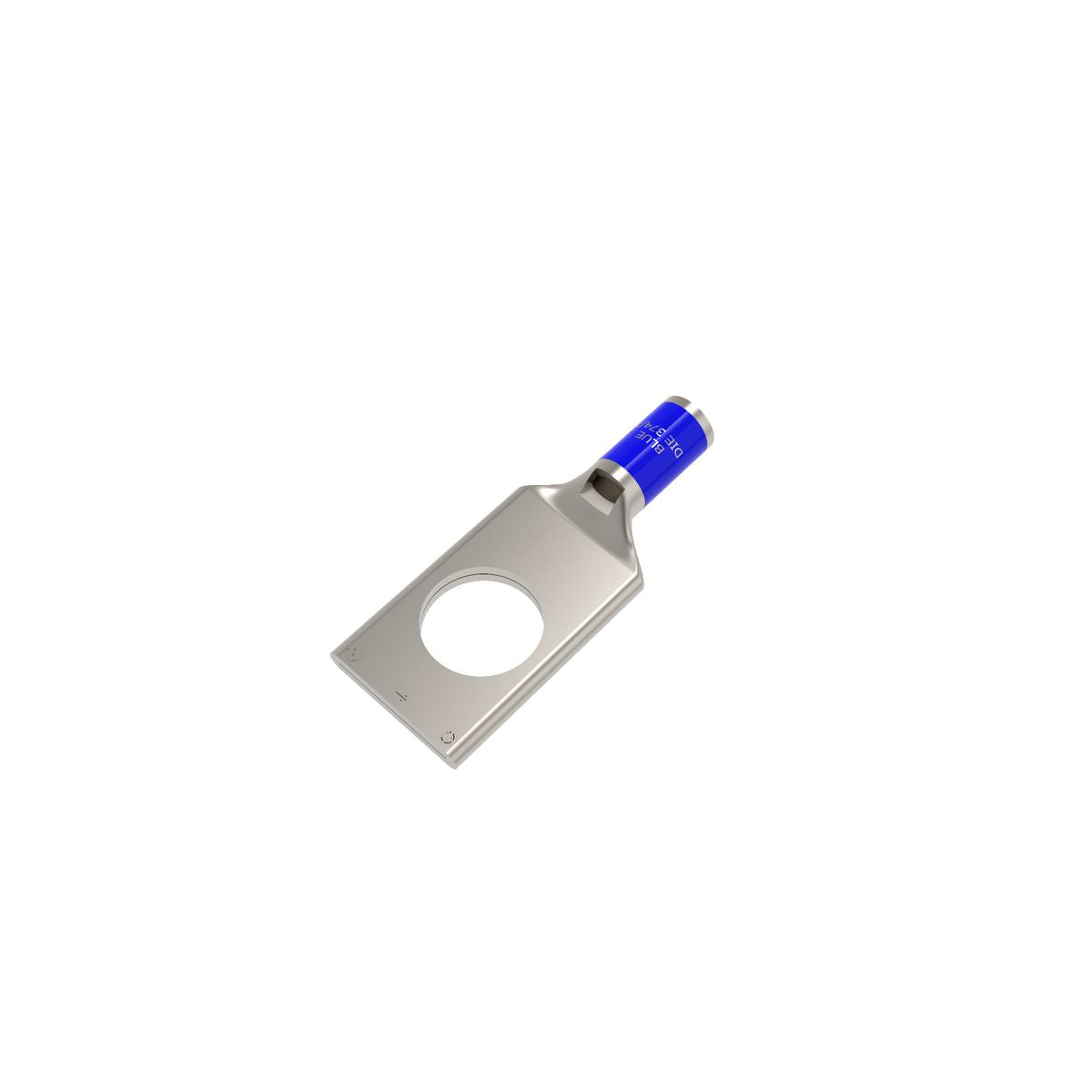

Hubbell YA6CLBOX YA6CL-BOX BUR COPPER COMP.LUG 6AWG WITH 1/4 STUD HOLE

Product Description

The Hubbell YA6CLBOX is a compression lug designed for secure electrical connections. This product accommodates six AWG solid and stranded copper conductors. The design allows for installation with a 1/4 inch stud and supports a voltage range from six hundred volts alternating current to thirty-five kilovolts. The lug features a standard straight tongue and a chamfered barrel for easy connection.

• Compatible with solid and stranded copper conductors
• Voltage Rating: six hundred VAC to thirty-five kV
• Temperature Rating: ninety degrees Celsius

Product Highlights

The YA6CLBOX is engineered for high conductivity and superior thermal performance. It supports various installation tools for reliable and consistent connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: YA6CLBOX

Technical Specifications

• Application: For code conductor
• Barrel Size: 0.54 inches long
• Color: Blue
• Conductor Size: 6 AWG
• Conductor Type: Solid/Stranded Copper
• Die Code: 7/374
• Overall Length: 1.45 inches
• Series: YA-L
• Stud Size: 1/4 inches
• Temperature Rating: 90 degrees Celsius
• Tongue Size: 0.45 inches wide x 0.08 inches thick
• Tongue Type: Standard/Straight
• Voltage Rating: 600 VAC to 35 kV
