Product Description

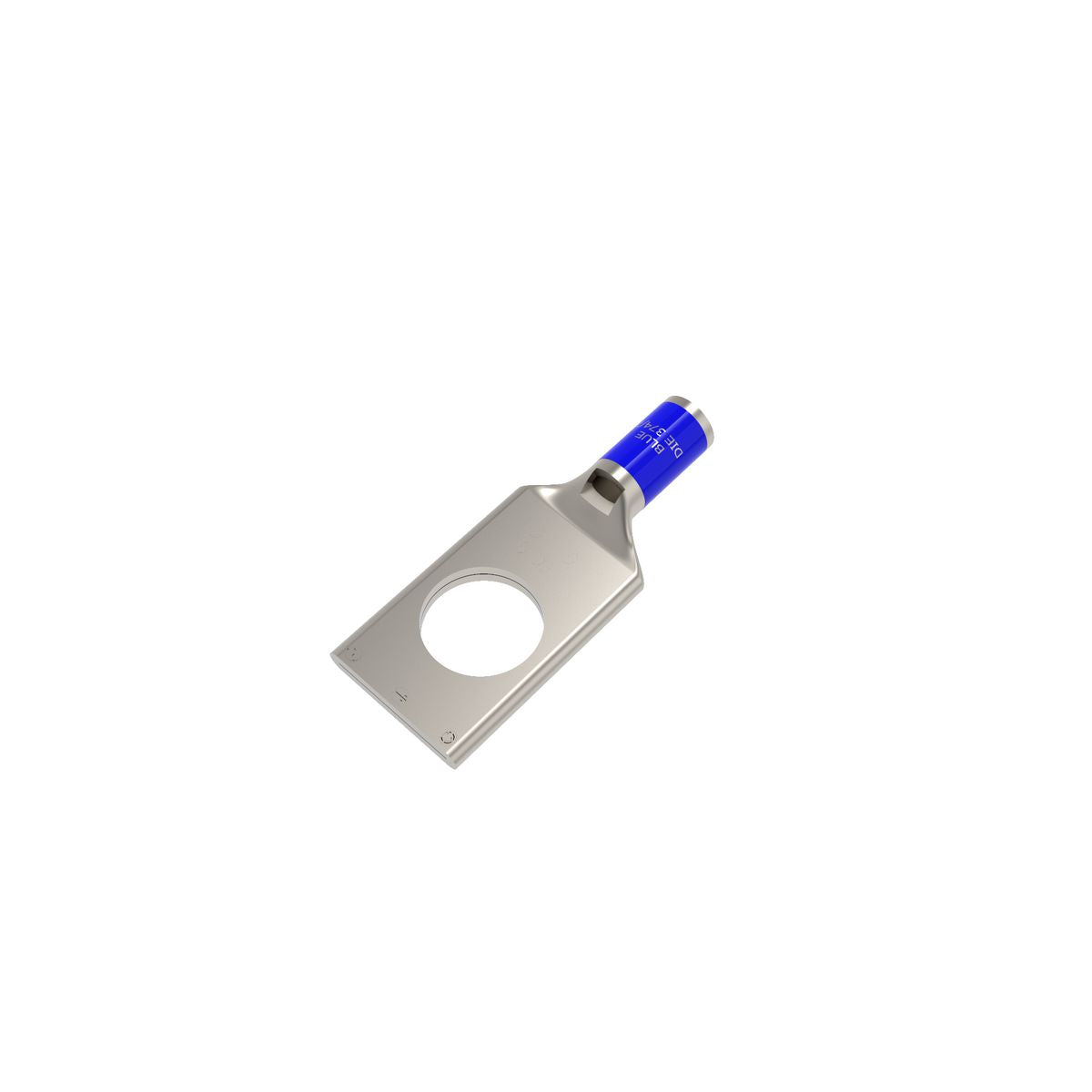

The Hubbell YA6CL4BOX is a reliable compression lug designed for flexible and stranded copper conductors. This lug is compliant with various standards and is ideal for electrical applications requiring durable connections.
- One-hole design suitable for 6 AWG conductors
- Temperature rating up to ninety degrees Celsius
- Compatible with a range of tools for installation
Product Highlights
This product provides high conductivity and operates cooler than the wire. It withstands various environmental conditions, ensuring durable connections.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78181055310
Technical Specifications
-
Application: For flex conductor
-
Barrel Size: 0.54 inches L
-
Conductor Size: 6 AWG
-
Material: Copper
-
Die Code: 7/374
-
Overall Length: 1.62 inches
-
Stud Size: 3/8 inches
-
Temperature Rating: 90 degrees Celsius
-
Voltage Rating: 600 VAC to 35 kV
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, CSA Certified, RoHS Compliant, UL 467A/467B
